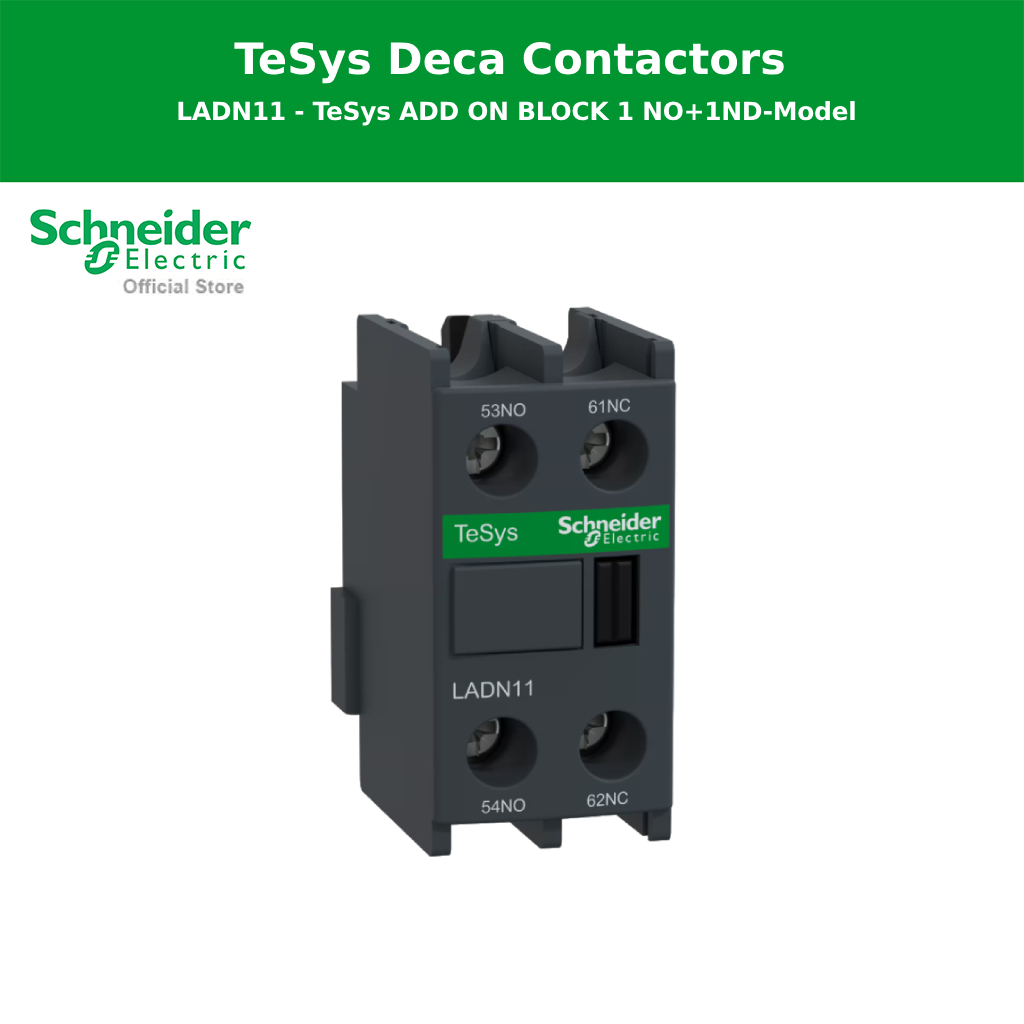

Schneider Electric Auxiliary contact block, รุ่น Tesys Deca, 1NO+1NC, front mounting, screw clamp terminals (LADN11)

Main Range •TeSys •TeSys Deca Product name : TeSys Deca Product or component type : Auxiliary contact block Device short name : LADN Range compatibility •TeSys D CAD[RETURN]TeSys D •LC1D[RETURN]TeSys F LC1F[RETURN]TeSys F •CR1F[RETURN]TeSys Deca CAD[RETURN]TeSys •Deca LC1D Mounting location : Front Pole contact composition : 1 NO + 1 NC Contacts operation : Instantaneous [Ue] rated operational voltage : 690 V AC 25...400 Hz [Ie] rated operational current •6 A at 120 V AC-15 •1.04 A at 690 V AC-15 •0.55 A at 125 V DC-13 •0.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1 600 V conforming to UL 600 V conforming to CSA [Ith] conventional free air thermal current : 10 A (at 60 °C) Standards •EN/IEC 60947-5-1 •UL 60947-5-1 •CSA C22.2 No 60947-5-1 •GB/T 14048.5 Product certifications •CB •UL •CSA •CCC •EAC •UKCA
