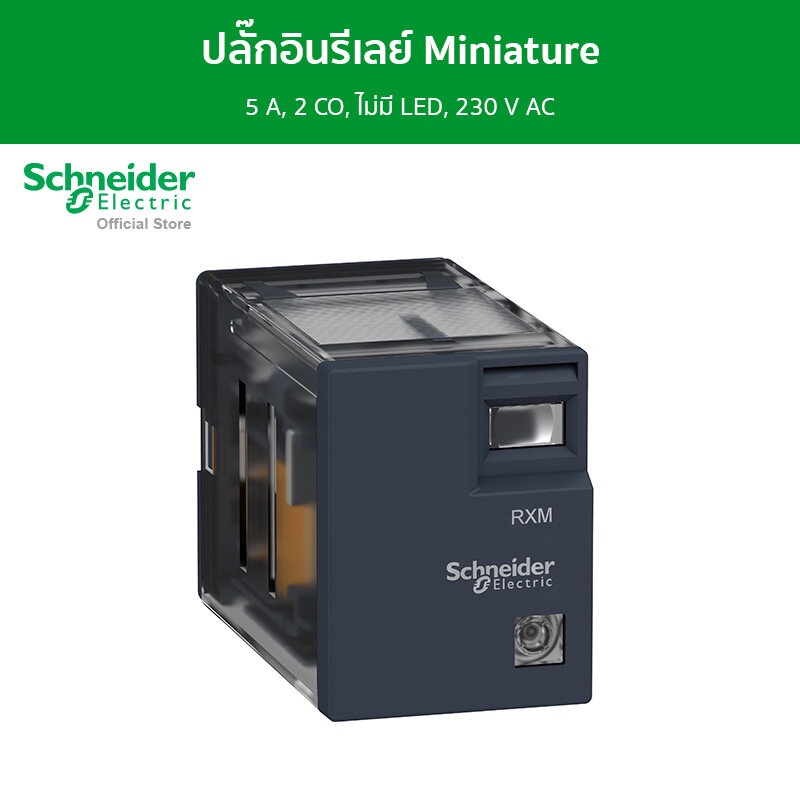

Schneider Electric miniature, Harmony Electromechanical Relays, 5A, 2CO, without LED, 230V AC (RXM2LB1P7)

- Schneider Plug-in Relay Miniature รหัส RXM2LB1P7 - มีแรงดันคอยล์ 230V AC และมี 2 changeover คอนแท็ค กระแส 5A - มีปุ่มทดสอบที่สามารถล็อคและมีไฟ LED แสดงผลการพร้อมใช้งานอย่างชัดเจน - ช่วยลดขนาดของตู้และเพิ่มความคงทนถาวรของเครื่องจักร - มีระดับการป้องกัน IP40 - สามารถต่อกับระบบออโตเมชั่นหรือ PLC แบบ hard-wired Main range of product : Harmony Electromechanical Relays Coil interference suppression : Without Series name : Miniature product or component type : Plug-in relay Device short name : RXM Contacts type and composition : 2 C/O [Ithe] conventional enclosed thermal current : 5 A at -40…55 °C Complementary Contact operation : Standard [Uc] control circuit voltage : 230 V AC 50/60 Hz Status LED : Without Control type : Without push-button [Uimp] rated impulse withstand voltage : 4 kV during 1.2/50 µs conforming to IEC 61810-7 [Ie] rated operational current 5 A (AC-1/DC-1) NO conforming to IEC 2.5 A (AC-1/DC-1) NC conforming to IEC 1 A at 28 V (DC-13) NO Minimum switching capacity : 25 mW subject to switching frequency, environment or expected reliability level etc Average coil consumption in VA : 1.2 AC Operating time 20 ms between coil de-energisation and making of the Off-delay contact 20 ms between coil energisation and making of the On-delay contact CAD overall width : 21 mm CAD overall height : 27 mm CAD overall depth : 46 mm Minimum switching current : 5 mA subject to switching frequency, environment or expected reliability level etc Minimum switching voltage : 5 V subject to switching frequency, environment or expected reliability level etc Rated operational voltage limits : 184...253 V AC [Ui] rated insulation voltage : 250 V conforming to IEC Maximum switching voltage 250 V AC 28 V DC Drop-out voltage threshold : >= 0.15 Uc AC Load current 5 A at 250 V AC 5 A at 28 V DC Maximum switching capacity 1250 VA AC 140 W DC Average resistance : 16500 Ohm at 23 °C +/- 15 % Mechanical durability : 10000000 cycles Electrical durability 100000 cycles for resistive load 50000 cycles, 1 A at 28 V, DC-13 NO Safety reliability data : B10d = 100000 Operating rate <= 1200 cycles/hour under load <= 18000 cycles/hour no-load Utilisation coefficient : 20 % Dielectric strength 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation 1000 V AC between contacts with micro disconnection Protection category : RT I Pollution degree : 3 Operating position : Any position Test levels : Level A group mounting Sale per indivisible quantity : 10 Contacts material : Silver alloy (Ag/Ni) Environment IP degree of protection : IP40 conforming to IEC 60529 Standards CE IEC 61810-1 (iss. 2) Ambient air temperature for storage : -40…85 °C Vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to IEC 60068-2-6 6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to IEC 60068-2-6 Shock resistance 30 gn for not operating conforming to IEC 60068-2-27 10 gn for in operation conforming to IEC 60068-2-27
