รู้จักสินค้านี้
หลังจากได้รับpower box หากเก็บไว้ในคลังสินค้าหรือไม่ได้ใช้งาน จะต้องชาร์จและปล่อยไฟออกทุกๆ 3 ถึง 6 เดือน
วิธีนี้สามารถปกป้องชุดแบตเตอรี่และยืดอายุการใช้งานของpower boxได้ครับ
ยี่ห้อ: DJI
รุ่น: DJI Power 500
ประเภทแบตเตอรี่: แบตเตอรี่ลิเธียมเหล็กฟอสเฟต
ขนาด: 305 มม.* 207 มม. * 177 มม
น้ำหนัก: 7.3กก
กำลังขับสูงสุด: 220V
กำลังขับสูงสุด: 1000W
ความจุแบตเตอรี่: 160000mAh
เวลาในการชาร์จแบบชาร์จเร็ว: 70 นาที
กำลังไฟฟ้าเข้าพลังงานแสงอาทิตย์สูงสุด: 300W
จำนวนพอร์ต: พอร์ตเอาต์พุตไฟ AC*2
ยูเอสบี-C*2
ยูเอสบี-A*2
SDC ไลท์*1
พอร์ตอินพุตไฟ AC*1
ระดับความสูงในการใช้งานสูงสุด: 3000M
เอาต์พุต AC: AC 220V-240V, 50/60HZ, เอาต์พุตต่อเนื่องสูงสุด 1000W
เอาต์พุต USB-A: 5V, 5A/9V, 5A/12V, 5A/15V,5A/20V,5A
กำลังขับสูงสุดของแต่ละช่องคือ 100W
เอาต์พุต SDC LITE: 9V-27V, กำลังขับสูงสุด 240W
อินพุตไฟฟ้ากระแสสลับ: ไฟฟ้ากระแสสลับ 220V-240V
อินพุต SDC LITE: DC 22.4V-29.2V สูงสุด 300W, สูงสุด 10A
อินพุต USB-C: DC 5V-20V สูงสุด 100W รองรับพอร์ต C สองพอร์ตที่ชาร์จอินพุตในเวลาเดียวกัน สูงสุด 200W
อุณหภูมิสภาพแวดล้อมของแหล่งจ่ายไฟ: -10 ℃ -45 ℃
อุณหภูมิสภาพแวดล้อมในการชาร์จ: 0 ℃-45 ℃
อุณหภูมิสภาพแวดล้อมในการจัดเก็บ: -10 ℃-45 ℃
————————————————————————————————————————————————————————————————————————————————

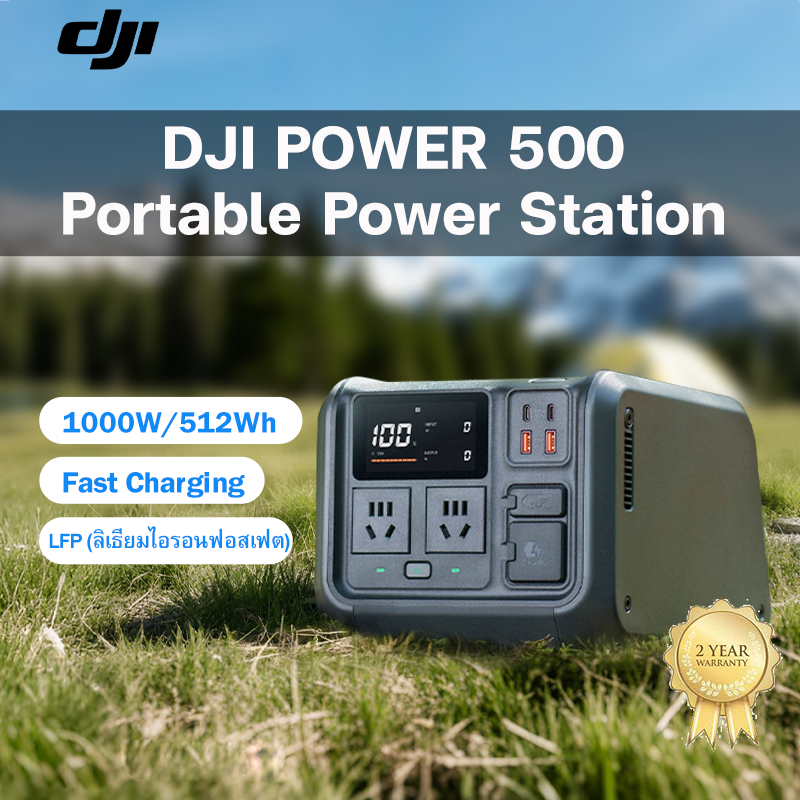

Easily handles common household appliances - With 1000W maximum output power, the DJI Power 500 can easily handle your gear for content creation, road trips, and more.
Fully Charges Fast - The DJI Power 500 can be fully charged in just 70 minutes using grid power. Fast charging saves time and keeps you moving on your next trip or outdoor adventure.
Safe and Reliable - LFP batteries offer up to 4000 cycles and a lifespan of approximately 10 years. The DJI Battery Management System (BMS) protects against over-current, over-voltage, and over-discharge. The Power 1000 has been certified by SGS for 26 product tests.
Fast Charges DJI Drones - Comes with a separately sold charging cable to quickly charge designated DJI drone batteries (such as the Mavic 3 and Air 3) and unlock extended flight time for expanded creativity.
Meet Dynamic Power Needs - Dual USB-C bi-directional ports (up to 100W) provide power for a variety of needs, expanding charging options for easier and more versatile usage scenarios.
Supports solar charging - Charges the Power 500 in just 1.8 hours (at maximum charging speed), clean, green, renewable energy to keep you powered even on camping trips and remote outdoor locations.
Ultra-quiet operation - The noise level of the Power 500 is as low as 25 dB during charging, so there is no noise disturbance even in quiet environments. Even passed five SGS noise level tests.
Includes DJI Power 500 and DJI Power AC power cable.
Model: DJI Power 500
Warranty:2 years
Capacity: 512 Wh
Net weight: Approx. 7.3 kg
Dimensions: 305 mm, 207 mm, 177 mm
Number of ports
AC outlet × 2/USB-C × 2/USB-A × 2/SDC Lite × 1/AC input × 1
Maximum operating altitude: 3000 m
Output specifications
AC output
DYM500H: AC 220 V to 240 V, 50/60 Hz, rated 800 W, maximum continuous output 1000 W
AC output (bypass mode)
DYM500H: AC 220 V to 240 V, maximum 1000 W
USB-A output 5 V, 3 A/9 V, 2 A/12 V, 2 A
Maximum output power per channel 24 Watts
USB-C output 5V, 5A/9V, 5A/12V, 5A/15V, 5A/20V, 5A
Maximum output power per channel 100W*
* When outputting, the appliance must support the PD 3.0 protocol.
SDC Lite: 9V to 27V, maximum output power 240W
Input specifications
AC input
DYM500H: AC 220V to 240V, 540W (charging), 1000W (bypass mode)
SDC and SDC Lite input
SDC Lite: DC 22.4V to 29.2V, maximum 300W, maximum 10A
The SDC Lite interface supports multiple accessories expansion.
USB-C input
DC 5V to 20V, maximum 100W*.
Supports two C ports for simultaneous charging input, maximum 200W.
*When inputting, the charger must support the PD 3.0 protocol.
Battery specifications
Cell material: LFP (lithium iron phosphate)
Cycle life: After 4000 cycles, it can still maintain more than 70% capacity.
*Measured under 25℃ laboratory conditions, using 270W normal mode for charging, and output power of 500W.
