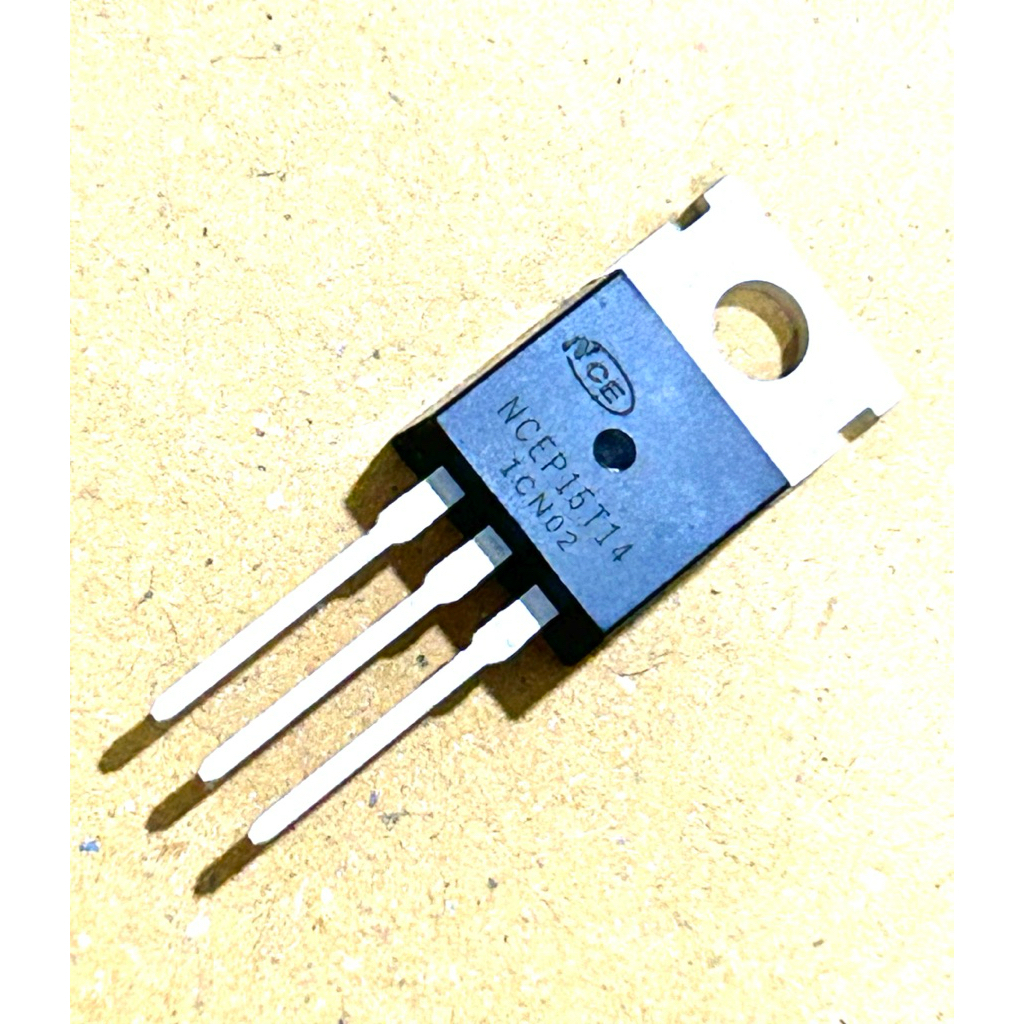

Mosfet N Chanel NCEP15T14 150V 140A RSD On 6.2mOhm

Description The NCEP15T14 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching and synchronous rectification. General Features ● VDS =150V,ID =140A RDS(ON) <6.2mΩ @ VGS=10V ● Excellent gate charge x RDS(on) product(FOM) ● Very low on-resistance RDS(on) ● 175 °C operating temperature ● Pb-free lead plating ● 100% UIS tested Application ● DC/DC Converter ● Ideal for high-frequency switching and synchronous rectification
