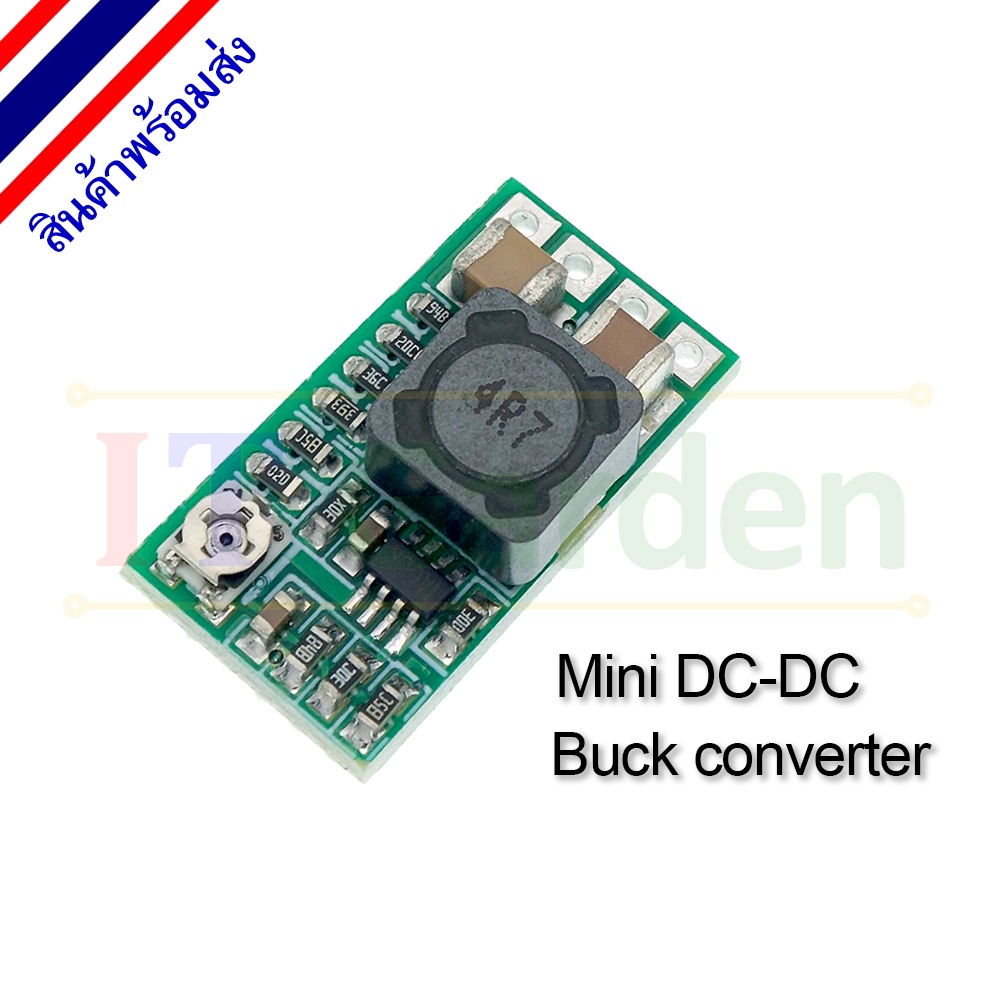

DC-DC step-down Mini Buck converter MP2315 12-24 to 1.8-12V or Adjust

Mini DC-DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter Adjustable 97.5% 1.8V 2.5V 3.3V 5V 9V 12V Description: • Input Voltage : DC 4.5-24V • Output Voltage : integration adjustable and fixed output,back side can choose fiexd output voltage • Adjustable Range : 0.8-17V, fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V) • Output Current : 3A (max),actual testing input 12V output 1.5A • Transform Efficiency : 97.5%(max) (6.5 to 5V 0.7A) • Switch Frequency : 500KHz • Output Ripple Wave : 20mV (12V to 5V 3A) 20m band width • Operating Voltage : -40˚C - 85˚C • Output Overvoltage Protection : no • Static Current : 0.85MA • Load Adjust Rate : ±1% • Voltage Adjust Rate : ±0.5% • Dynamic Response Speed : 5% 200uS • Connecting Type : soldering • Input Way : soldering • Output Way : soldering/pin • Soldering Hole Space : 2.54mm. • Size : 20 x 10 x 5.5 mm. (W x L x H)
