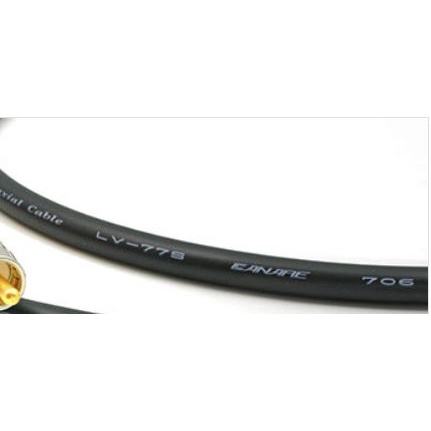

สายวีดีโอ SDI 75 ohms รุ่น LV-77S เข้าหัว RCA to RCA ยี่ห้อ Canare สายสัญญาณภาพชนิดสายอ่อน นิ่ม ยืดหยุ่นดี ม้วนขดง่าย

สายวีดีโอ SDI 75โอห์ม รุ่น LV-77S เข้าหัว RCA to RCA ยี่ห้อ Canare เป็นสายสัญญาณภาพชนิดสายอ่อน นิ่ม ยืดหยุ่นดี ม้วนขดง่าย เป็นสายสำเร็จรูปพร้อมใช้งาน ผลิตภัณฑ์ประเทศญี่ปุ่น (สอบถามสายความยาวที่ต้องการนอกเหนือจากที่ลงไว้ได้นะคะ) Canare LV-77S RCA to RCA 75ohm Standard Coaxial Interconnect Cable An amazingly flexible High-End/Professional RCA to RCA audio video interconnect cable made with premium Canare LV-77S 75ohm cable and terminated with "True 75ohm" Canare RCAP-C77 RCA connector Highly recommended for Audiophile/High-End SPDIF interconnect cable, Home Theatre or Subwoofer use. Suitable for HD-SDI connections. Compliant with SMPTE 292M standard. Also, suitable for Audio & HD Video Equipment for Professional Broadcast, Live Sound, Installation and Studio Applications. It can be used for Digital or Analog Video, Digital or Analog Audio, Subwoofer, Composite Video or almost any Audio or Video Signal. Your favourite music was probably recorded in a studio wired with Canare cables. This is the cable and connectors the Pros use. An industry standard in studio grade cable. The pictures are only samples. Please place your order for actual length. FEATURES AND FURTHER TECHNICAL DETAILS Below you can find information about the components used in the construction of this product. • APPLICATIONS: Broadcast Transmission Analog and Digital ENG / EFP Inter-Rack Wiring Video patch cords Multimedia PC I/O Cards Hi-Res Video Monitors SPDIF Digital Audio Duplication Decks VCR & Camcorders Audio Interconnects • CANARE LV-77S (The Cable): An amazingly flexible version of 8281F double shielded precision 75 ohm video coax. Typically used for long cable runs between equipment, Canare LV-77S offers good return loss characteristics and excellent signal isolation. Flexible Center Conductor: Stranded Bare Copper. Dielectric strips away clean from conductors. Tightly Woven Braid Shield. Stays Flexible even in Subzero Weather. Mechanical Specifications: Nominal OD in. (Mm): .303 (7.7) PVC Jacket Thickness in. (Mm): .035 (0.9) Brittle Point F (C): -22 (-30) Cond.-AWG (Qty./mil.): AC- # 22 (7 / 10.24) Cond. OD in. (Mm): .031 (0.78) Dielectric Insulation Type *: PE Insulation OD in. (Mm): .189 (4.80) Shield Material Coverage: AC Braid> 92% (inner)> 95% (outer) * Dielectric Strength = 1000V AC / 1min. Insulation Resistance / 3Mft => 1000M ohm. Electrical Performance: Cond. DCR ohm / 1000ft (ohm / 100m): <15.3 (<5.0) Shield DCR ohm / 1000ft (ohm / 100m): <1.8 (<0.6) Nom. Cap. @ 1KHz pF / ft (pF / m): 21 (67) Nom. Imp. Ohm: 75 Nom. Attn. @ 10MHz dB / 1000ft (dB / 100m): 10 (3.4) Velocity of Prop .: 66% • CANARE RCAP-C77 (RCA Crimp Plug): True 75 ohm construction Crimp Pin & Sleeve DC to 200MHz >26dB Return Loss (<1.1 VSWR) Absolutely No Soldering Required Assembly Time Reduced by 80% Superior cable pull strength Internal Pressure Contact Fingers Gold plated center Shaft Easy Assembly using Canare Strip and Crimp Tools Operating temperature -20 to +60 degrees Celsius
