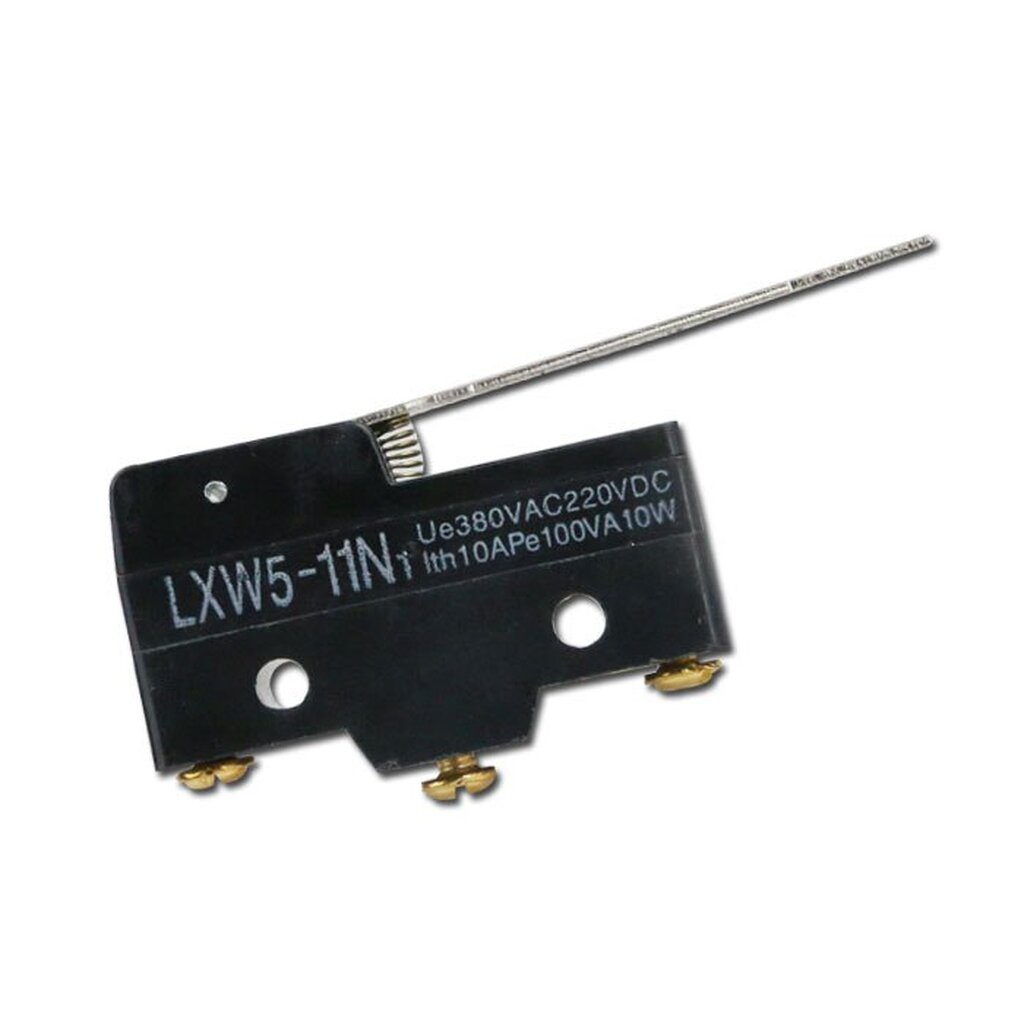

LXW5-11N1 10A Micro / Limit Switch ลิมิตสวิทช์ ไมโครลิมิตสวิทช์ แบบก้านยาว กระแสสูง 10A

LXW5-11N1 10A Micro Limit Switch ลิมิตสวิทช์ ไมโครลิมิตสวิทช์ แบบก้านยาว กระแสสูง 10A LXW5-11N1 Features: - Application: industrial Incubator, electrical equipment, motor switch. - 3 screw terminal, long straight hinge lever. - Applicable to both AC control circuits and DC control circuits. - Designed to control the movement of a mechanical part. - Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. LXW5-11N1 Specification: Model number LXW5 Contact form 1NO+1NC Action method Reset Rated voltage (Ue) 380VAC, 220VDC Rated thermal current (Ith) 10A Contact resistance 30m max (initial value) Insulation resistance 100M min at 500Vdc Dielectric strength 1000Vac, 50/60 Hz for 1 min between terminals of the same polarity 2000Vac, 50/60 Hz for 1 min between current-carrying metal part and ground 2000Vac, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part Machine life 20x106 operations min Electrical Life 5x105 operations min IP Rating IP62 Operating temperature -25-80 ℃ Operating humidity 35 to 85% RH, no condensation Alias name LXW5 series limit switch
