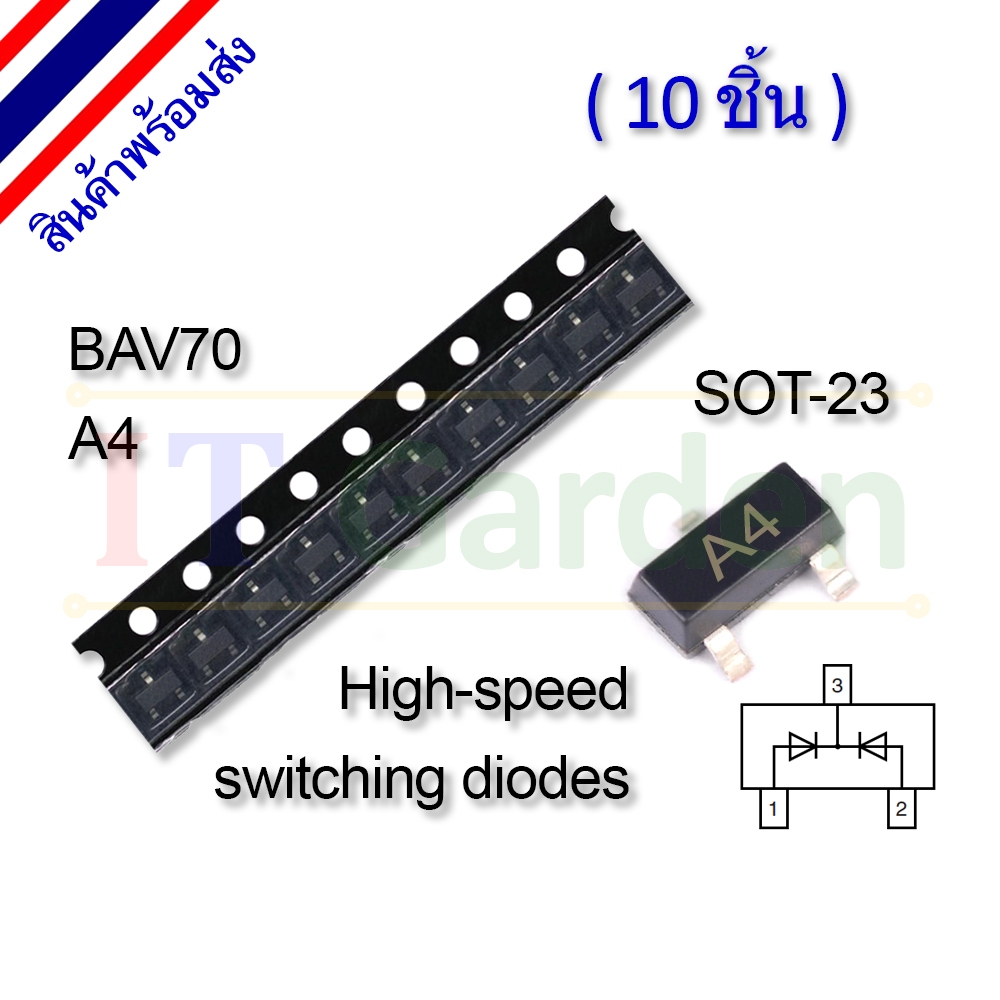

BAV70 A4 SOT-23 SOT23 High speed switching diode (10 ชิ้น)

Description : High-speed switching diodes, encapsulated in small Surface-Mounted Device (SMD) plastic packages. Features : • High switching speed : trr ≤4 ns • Low capacitance : Cd ≤ 1.5 pF • Low leakage current • Reverse voltage : VR ≤ 100 V • Small SMD plastic packages • Reverse current (IR) : 0.5uA max. (VR=80V) • Reverse Voltage (VR) : 100V max. จำนวน 10 ชิ้น
