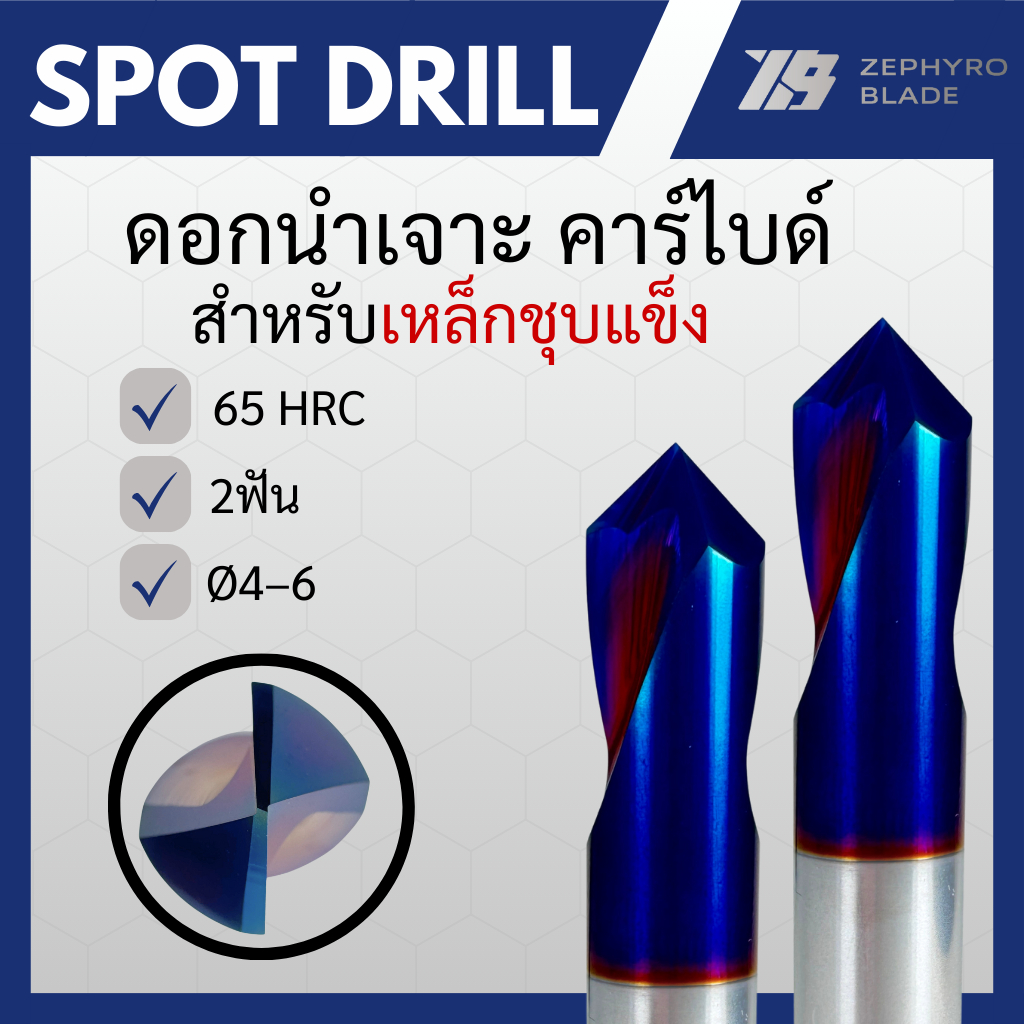

ดอกนำเจาะ คาร์ไบด์ แข็ง65HRC 2ฟัน เคลือบNano Blue สำหรับเหล็กชุบแข็ง SPOT DRILL CARBIDE (Ø4-Ø6)
คู่มือการเลือกใช้งานอย่างรวดเร็ว
• สำหรับงาน นำเจาะ / กำหนดตำแหน่งรู (Spot Drilling) บนเหล็ก
• ช่วยเพิ่มความแม่นยำของรู และลดการเดินของดอกสว่าน
• ไม่เหมาะ สำหรับอะลูมิเนียมหรือวัสดุอ่อน
คุณสมบัติสินค้า
• ทังสเตนคาร์ไบด์คุณภาพสูง เคลือบ Nano Blue (HRC65)
คมตัดแข็งแรง ทนการสึกหรอ เหมาะสำหรับงานนำเจาะบนเหล็กและเหล็กอัลลอย
• โครงสร้างคมตัดสำหรับงาน Spot Drill โดยเฉพาะ
เริ่มต้นรูได้แม่นยำ ลดการสั่น และลดการเบี่ยงของดอกสว่าน
• รูปทรงคมตัดออกแบบเพื่อความนิ่ง
ลดแรงตัด เหมาะสำหรับงานเตรียมรูและงานลบมุมเบา (Chamfer)
• ลับคมด้วยเครื่องเจียร 5 แกน
คมตัดเรียบ ไม่มีตำหนิ ให้การใช้งานสม่ำเสมอและเชื่อถือได้
สเปกสินค้า
• ความแข็ง: HRC65
• จำนวนฟัน: 2 ฟัน
• เส้นผ่านศูนย์กลาง: Ø4–Ø6 mm
• ความยาวรวม: 50 mm (ขนาดหรือความยาวอื่น ๆ กรุณาแชทสอบถาม)
• วัสดุ: ทังสเตนคาร์ไบด์ (ไมโครเกรน 0.6 µm)
วัสดุที่เหมาะสม (สินค้านี้ออกแบบสำหรับ Spot Drill / นำเจาะ / กำหนดตำแหน่งรู)
เหมาะมาก
• เหล็กกล้าคาร์บอน
• เหล็กอัลลอย
• เหล็กเครื่องมือ / เหล็กแม่พิมพ์ความแข็งปานกลาง
• เหล็กผ่านการอบชุบ ≤ HRC55
ใช้งานได้ (ควรปรับค่าการตัด)
• สแตนเลสบางเกรด (แนะนำลดรอบ)
ไม่แนะนำ
• อะลูมิเนียม
• ทองแดง, ทองเหลือง
• เหล็กหล่อ
• กราไฟต์
• CFRP และวัสดุผสม
• ไม่เหมาะสำหรับงานเจาะลึกหรือการตัดที่มีอัตราป้อนสูง
คำเตือน / หมายเหตุ
• ปรับลดความเร็วรอบและอัตราป้อนให้เหมาะสม เพื่อยืดอายุการใช้งานของดอกกัด
• ควรใช้น้ำยาหล่อเย็นระหว่างการตัด เพื่อป้องกันคมตัดจากการสึกหรอ
• ความยาวที่ดอกกัดยื่นออกจากหัวจับ ควรสั้นที่สุดเพื่อให้การทำงานมั่นคง
การจัดส่ง
• จัดส่งทุกวัน สินค้าส่วนใหญ่จะถูกส่งออกภายใน 24 ชั่วโมง
• สินค้าทุกชิ้นตรวจสอบคุณภาพก่อนจัดส่ง
การสั่งทำพิเศษ
• หากต้องการ ดอกกัดแบบยาวพิเศษหรือดอกสั่งทำพิเศษ กรุณาติดต่อผ่านแชท
หลักฐานการแกะกล่อง
• กรุณาถ่ายวิดีโอขณะเปิดกล่องสินค้า
การขอคืนหรือเปลี่ยนสินค้าจะต้องมี หลักฐานเป็นวิดีโอ เพื่อปกป้องสิทธิ์ของทั้งสองฝ่าย
บริการลูกค้า
• หากมีคำถามหรือปัญหาเกี่ยวกับสินค้า สามารถติดต่อได้ผ่าน Shopee แชท ทีมงานจะตอบกลับอย่างรวดเร็ว
รีวิวสินค้า
• เมื่อได้รับสินค้าแล้ว รบกวนช่วยให้ คะแนน 5 ดาว และเขียนรีวิว ขอบคุณมากค่ะ
เซฟโร เบลด – จุดบรรจบของความแม่นยำและพลัง
Carbide Spot Drill HRC65 Nano Blue Coated, 2 Flutes, for Hardened Steel – Spot Drill Carbide (Ø4–Ø6)
Quick Usage Guide
• Designed for spot drilling / hole positioning on steel materials
• Improves hole accuracy and reduces drill walking
• Not suitable for aluminum or soft materials
Product Features
• High-quality tungsten carbide with Nano Blue coating (HRC65)
Strong cutting edge with excellent wear resistance, suitable for spot drilling on steel and alloy steel
• Spot-drill-specific cutting edge structure
Ensures accurate hole initiation, reduces vibration, and minimizes drill deviation
• Stable cutting geometry
Reduces cutting resistance, ideal for hole preparation and light chamfering applications
• 5-axis precision grinding
Smooth, defect-free cutting edges ensure consistent and reliable performance
Specifications
• Hardness: HRC65
• Flutes: 2
• Diameter: Ø4–Ø6 mm
• Overall length: 50 mm (For other sizes or lengths, please contact us via chat)
• Material: Solid tungsten carbide (0.6 µm micrograin)
Suitable Materials (This product is designed for spot drilling / hole positioning applications)
Highly Suitable
• Carbon steel
• Alloy steel
• Tool steel / medium-hard mold steel
• Heat-treated steel ≤ HRC55
Usable (cutting parameters adjustment required)
• Certain grades of stainless steel (reduced speed recommended)
Not Recommended
• Aluminum
• Copper, brass
• Cast iron
• Graphite
• CFRP and composite materials
• Not suitable for deep drilling or high-feed cutting operations
Warnings / Notes
• Adjust spindle speed and feed rate appropriately to extend tool life
• Use coolant during machining to reduce cutting edge wear
• Keep tool overhang as short as possible to ensure stable operation
Shipping
• Orders are shipped daily; most are dispatched within 24 hours
• All items are quality-checked before shipment
Custom Orders
• For extended-length or custom tools, please contact us via chat
Unboxing Proof
• Please record a video while opening the package
Returns or exchanges require video proof to protect the rights of both buyer and seller
Customer Service
• For any questions or issues, please contact us via Shopee chat — our team will respond promptly
Product Reviews
• After receiving your item, please kindly leave a 5-star rating and review — thank you very much
Zephyro Blade – Where Precision Meets Power
