Specifications of LED Strip:
Product Name: แถบไฟ LED แบบน้ำไหล Led Strip Light
LED Type: SMD2835
LED Qty per Meter: 120Leds/m
Power: 10-12W/M
Working Voltage: 24V DC
Protection Grade: IP20 Not Waterproof (IF you want waterproof,we can customize,inquiry to us by message)
Color: Cool White(6000-6500K)/Warm White(3000-3200K)/Natrual White(4000-4500K)
Control IC: WS2811, 80 IC for 10M
Viewing Angle: 120°
Storage Temperature: -20°to 50°
PCB Width: 10mm
Size ( L X W X H ): 5000/10000 x 10 x 2.5 mm

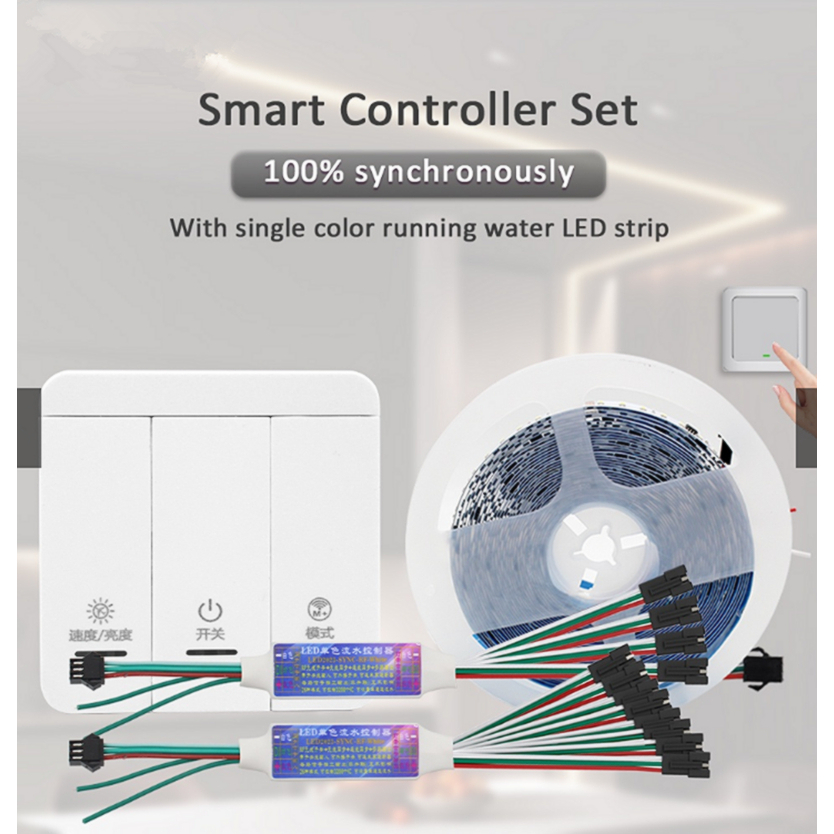

Product Parameters of Controller:
Product Name: Single Color Horse Race Led Strip Controller
Working Voltage: DC5-24V ( The controller dont connect to the power supply)
Control Distance: < 20m
Battery Type: CR2032 button cell ( Not included)
Modes: 26 Different modes built-in controller.
With Switch Input ( Green Wire): Turn ON,the lights running, Turn OFF, the lights backflow.
Max Pixel Control:Max Control Pixels:3200pcs Pixels,if more than 3200pcs pixels,just add extra receiver or amplifier to realize sync working.
Installation: With 2pcs double-side tape,anywhere to stick.
3 Keys Remote Function: ON/OFF, Model Key, Brightness UP/Down,Speed UP/Down
Features:
1. one receiver can be controlled by max 6pcs 3keys panel remotes.
2. Two receivers can be connected together,realize sync working. The wire between two receiver can be up to max 10metes for extension.
3. The controller can be work with normal switch, Turn ON/OFF by the switch without remote.It also can connect to Mihome Smart Switch to realize voice control.
Sync Projects:
Wire Connection Sync Working:99.99% sync (Recommend),If you want 50M sync control, just buy 2pcs x 25M full set, two controller can be connect together to make it sync working by one 3Keys remote/Normal Switch.
Wireless connection sync working: Maybe has delay
How to pair Remote to the Receiver,make them working independently ?
Step 1: Turn on the power supply.
Step 2: Long press "Mode"keys 3seconds within 2seconds after powering ON.
Step 3: Sucessfully if the led strip quick flash 3 times.
1pc receiver can
