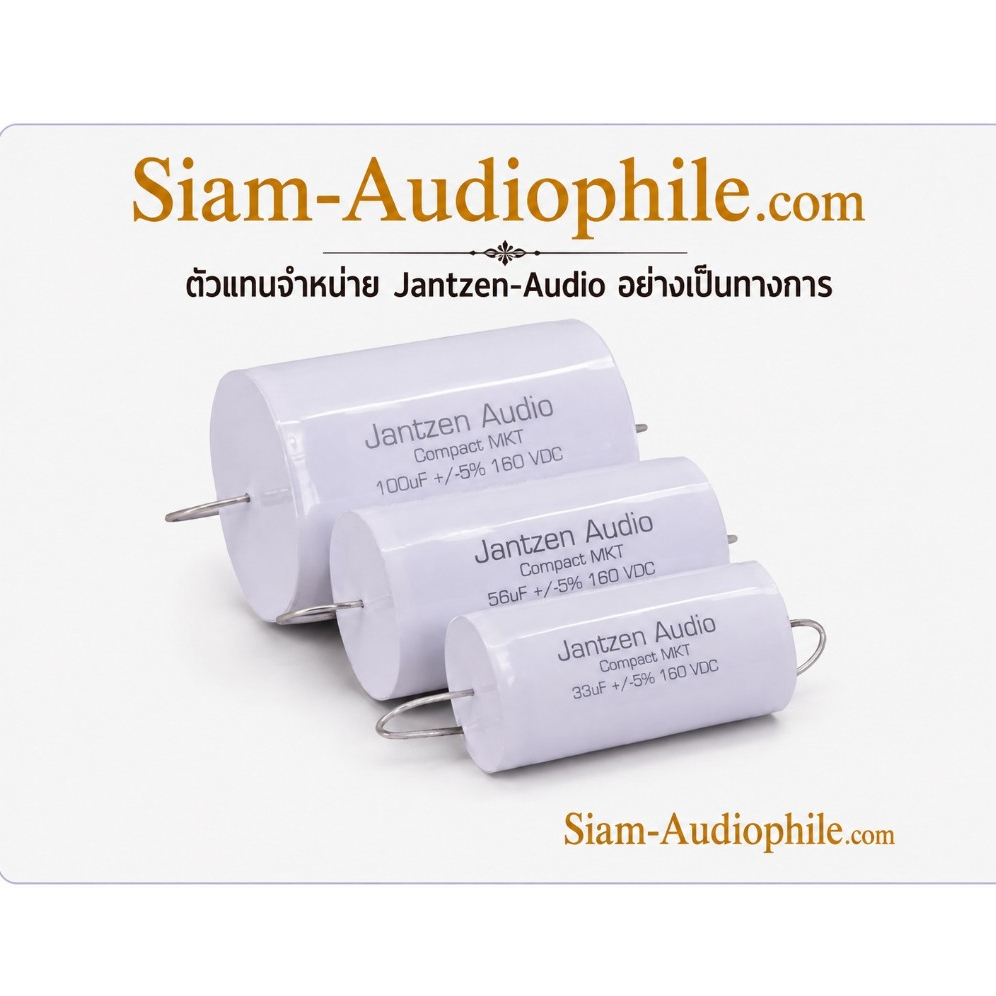

Jantzen Audio Compact MKT Metalized polyester film capacitor-ขายต่อชิ้น

PRODUCT FEATURE The Compact MKT capacitors are made with the highest quality metalized polyester film on the market. One of the biggest strengths of the Compact MKT caps is their compact sizing. We have been able to make them smaller in size compared to the current “plain/smooth foil” electrolytic capacitors offered as of 2024. MKT capacitors are known to rank higher in the hierarchy of sonic performance than electrolytic capacitors. The Compact MKT capacitors therefore offer better sonic performance, smaller sizing, and lower pricing, compared to “plain/smooth foil” electrolytic capacitors. With a voltage rating of 160 volts DC, they are also more versatile to use than electrolytic capacitors, usually only rated at 60 volts to 100 volts DC. Due to their rounded-off square shape (flat top and bottom surface), they can be easily stacked when it is necessary to couple multiple capacitors in parallel to reach a higher capacity value for a certain crossover position. As they are stackable, they will take up significantly less space, when compared to round-shaped equivalent values of plain/smooth foil electrolytic capacitors, MKT or PP foil capacitors that will need to be mounted side by side. TECHNICAL DATA • Capacitor foil: Metalized polyester foil • Dielectric insulation: Polyester foil • Terminal leads: Tinned 4N copper wire • Voltage rating: 160 VDC / 100 VAC • Capacity tolerance: +/- 5% • Dielectric constant: Non-polar dielectric • Dissipation factor: Extremely low • Dielectric absorption factor: <0.5% @20°C • Dielectric thickness: PB=5µm • Equivalent series resistance (ESR): Extremely low • Self-inductance: <15 nH • Insulation resistance: >5000 MΩx µF 10000 MΩ min • Temperature coefficient: -200°Cx10¯6/°C • Temperature Range: -55°Cto + 125°C • Metal layer thickness: PB=0.3 µm • Metal layer conductivity: PB = 1.2 Ω/ cm² VALUES AND SIZING Product index: Capacity [µF]: Voltage rating: Size (H x W x L): 001-8000 1,00 µF +/- 5% 160 VDC 7x11x19 mm 001-8010 1,50 µF +/- 5% 160 VDC 8x12x19 mm 001-8020 2,20 µF +/- 5% 160 VDC 8x13x25 mm 001-8030 2,70 µF +/- 5% 160 VDC 9x14x25 mm 001-8040 3,30 µF +/- 5% 160 VDC 10x15x25 mm 001-8050 3,90 µF +/- 5% 160 VDC 12x16x25 mm 001-8060 4,70 µF +/- 5% 160 VDC 10x15x31 mm 001-8070 5,60 µF +/- 5% 160 VDC 11x16x31 mm 001-8080 6,80 µF +/- 5% 160 VDC 12x17x31 mm 001-8090 8,20 µF +/- 5% 160 VDC 11x18x37 mm 001-8100 10 µF +/- 5% 160 VDC 13x19x37 mm 001-8110 12 µF +/- 5% 160 VDC 14x21x38 mm 001-8120 15 µF +/- 5% 160 VDC 16x23x37 mm 001-8130 18 µF +/- 5% 160 VDC 17x24x37 mm ****สำคัญมากโปรดอ่านค่ะ**** ****ราคาขายสินค้าต่อชิ้นนะค่ะ**** ##ตรวจสอบ รุ่น ค่า และขนาดก่อน กดสั่งซื้อนะค่ะ ##สินค้าไม่รับเปลี่ยนคืนทุกกรณี ยกเวันทางร้านส่งผิดค่ะ
