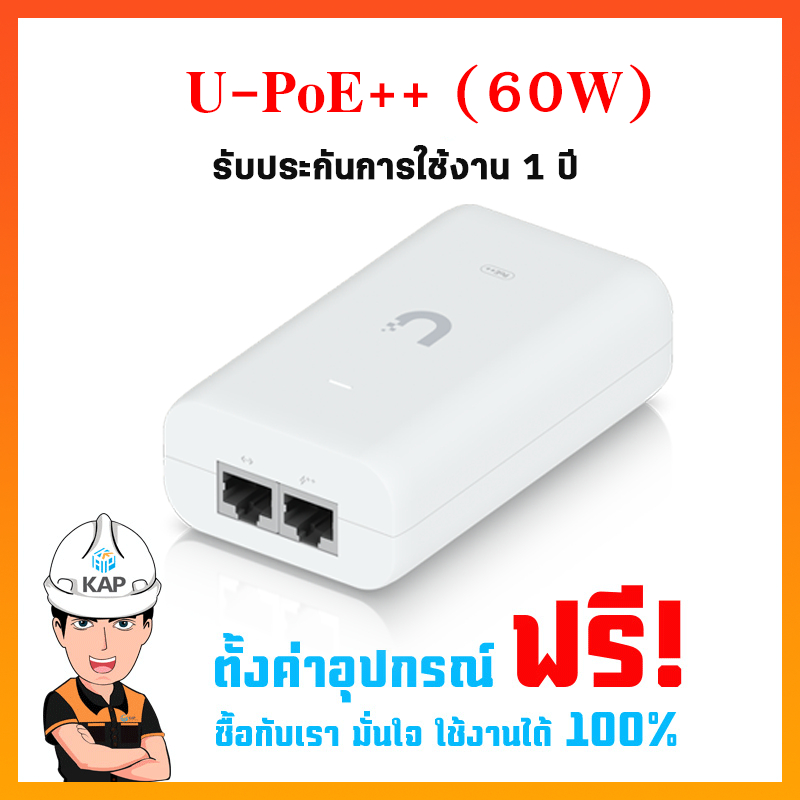

U-PoE++ [60W]Ubiquiti รุ่นใหม่สินค้าแท้100% สีขาว

U-PoE++ >>>รับประกันการใช้งาน 1 ปี<<< Technical Specification Model U-PoE++ Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") Weight 210 g (7.4 oz) Output voltage 48V DC @ 1.25A LAN activity indicator No Gigabit LAN port Yes Remote reset capability No Reset button No Rated voltage 100—240V AC @ 50/60Hz Input current 1.3A @ 120V AC 0.75A @ 230V AC Inrush current <100A peak @ 120V AC <200A peak @ 230V AC Efficiency 85+% Output ripple 1% max. Switching frequency 65 kHz Line regulation ≤ 1% Load regulation ≤ 3% 2-pair powering No 4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) AC connector IEC-320 C6 Data In / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 μs) power Peak pulse current 36A (10/1000 μs) data Shunt capacitance <5 pF data Response time <1 ns Power method Universal AC input, 100—240V AC, 50/60 Hz Power supply AC/DC Supported voltage range 100—240V AC Max. PoE+ wattage per port by PSE 60W Ambient operating temperature 0 to 40° C (32 to 104° F) Storage temperature -30 to 70°C (-22 to 158° F) Ambient operating humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
