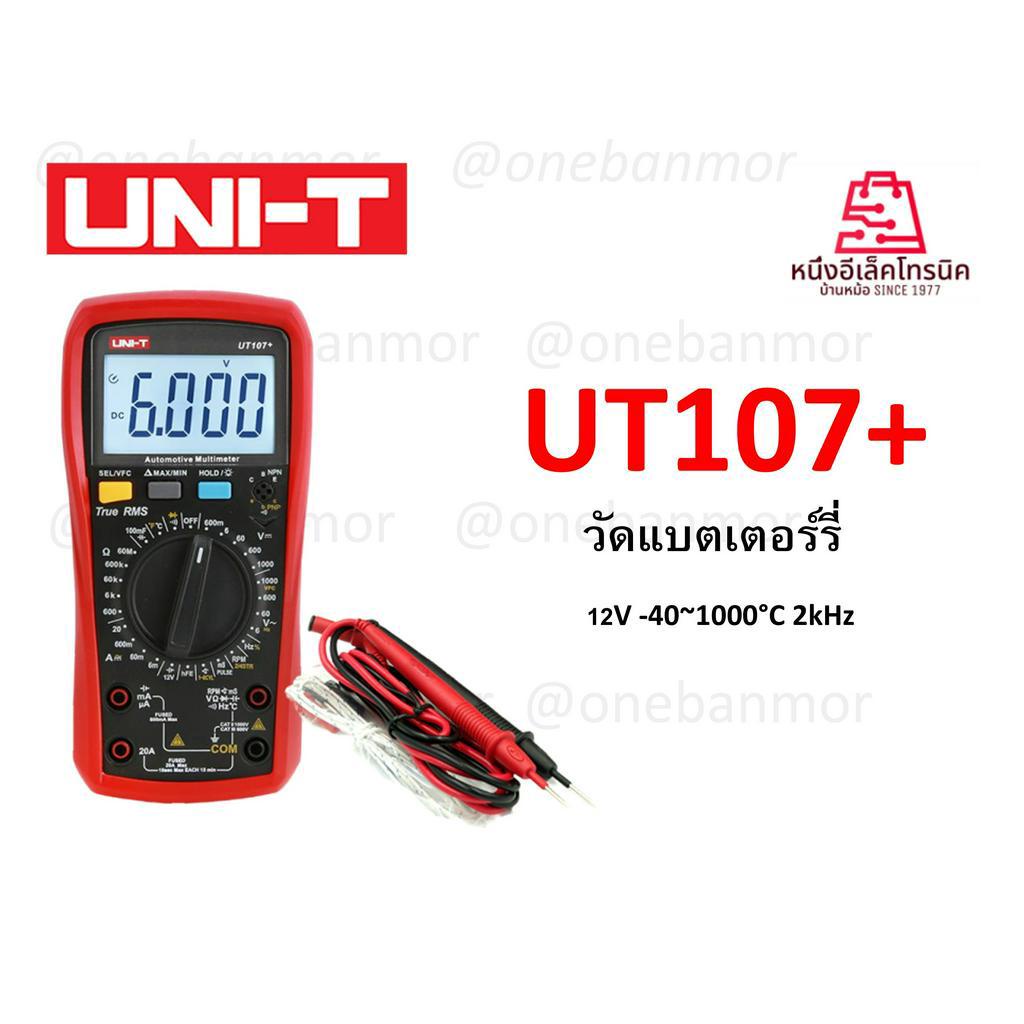

UNI-T UT107Plus มัลติมิเตอร์ รุ่นUT107Plus Automotive Multimeters

UT105+/UT107+ Automotive Multimeters UT105+ and UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles. This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well. 1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance. Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems. UT105+ and UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating. UT105+ is designed for basic vehicle troubleshooting with 4000 counts display. UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display. Specifications of UT105+/UT107+ Automotive Multimeters Specifications Range UT105+ UT107+ DC voltage (V) 400mV/4V/40V/400V/1000V ±(0.5%+3) 600mV/6V/60V/600V/1000V ±(0.5%+3) AC voltage (V) 4V/40V/400V/1000V ±(0.8%+3) 6V/60V/600V/1000V ±(0.8%+3) AC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(1.0%+8) 6mA/60mA/600mA/10A (20A for 10s max) ±(1.0%+8) DC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(0.8%+8) 6mA/60mA/600mA/10A (20A for 10s max) ±(0.8%+8) Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(0.8%+3) 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.8%+3) Capacitance (F) 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF ±(3%+10) Frequency (Hz) 10Hz~10MHz ±(0.1%+5） ±(0.1%+5) Temperature (℃) -40℃~1000℃ ±(1.0%+3) ±(1.0%+3) Temperature (℉) -40℉~1832℉ ±(1.5%+5) ±(1.5%+5) VFC 1000V ±(2.0%+10) ±(2.0%+10) RPM 2STR ±(3.0%+5) ±(3.0%+5) 4STR ±(3.0%+3) ±(3.0%+3) Dwell angle 1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°) ±(3.0%+5) ±(3.0%+5) Pulse width 999.9mS ±(1.5%+10) Features Display count 4000 6000 Manual range √ √ Continuity/diode/transistor √ √ Duty cycle √ √ High voltage alarm √ √ High voltage overload alarm √ √ Large current alarm √ √ Low battery indication ＜ Approximately 2.4V √ √ Backlight √ √ Auto power off Approximately 15 minutes √ √ Data hold √ √ Max/Min/Relative mode √ √ VFC √ √ 12V battery test √ Safety rating CAT II 1000V/CAT III 600V General Characteristics Power AAA 1.5V x2 Product color Red+Gray Product net weight 348g (Including batteries) Product size 183 x 88 x 56mm Standard accessories English manual,test leads,batteries,temperature probe Standard individual packing Gift box,carrying bag Standard quantity per carton 20 pcs Standard carton measurement 420×320×300mm
