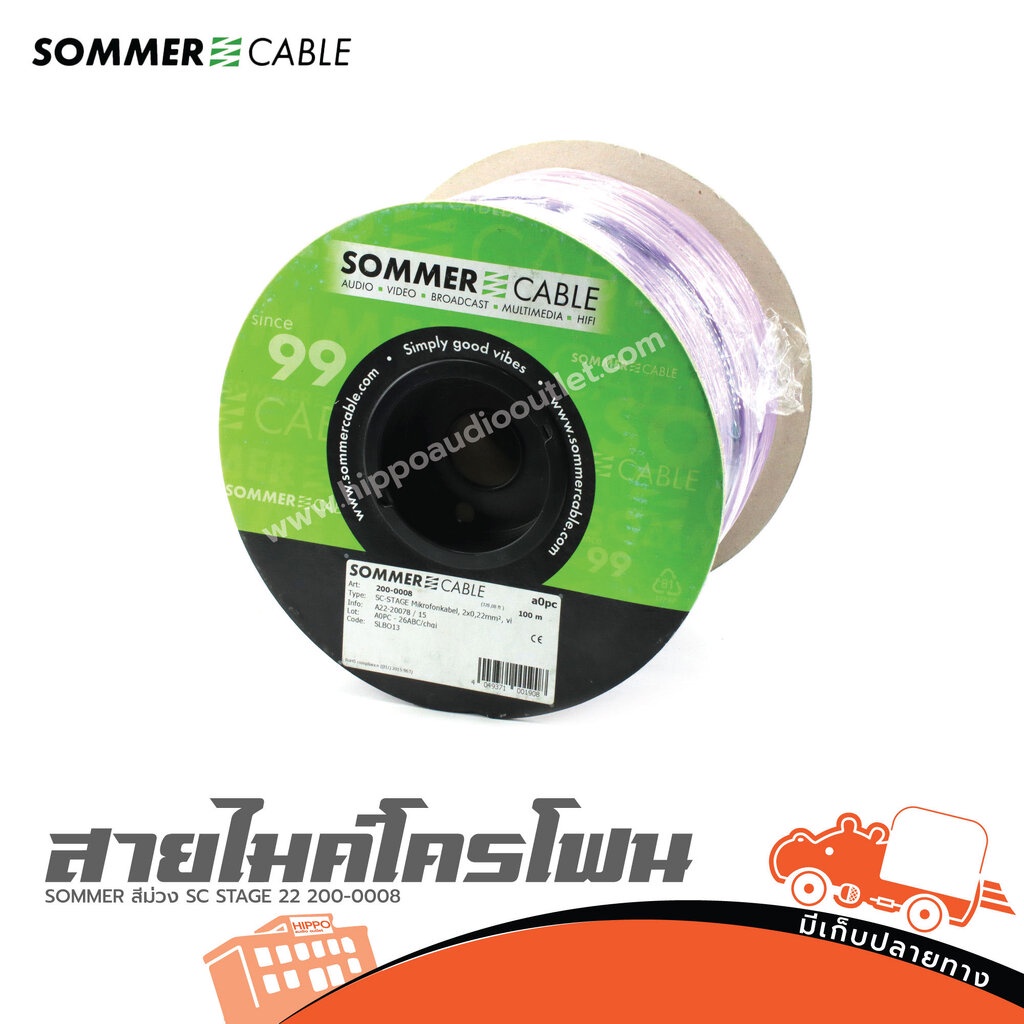

SOMMER สีม่วง SC STAGE 22 200 0008 2X0.22 ม้วน100 เมตร ใบกำกับภาษีทักเเชทได้เลยค่ะ สายไมโครโฟน ไมค์สาย Hippo Audio

สายไมโครโฟน SOMMER สีม่วง SC STAGE 22 200-0008 2X0.22 (ม้วน100เมตร) Stage 22 Highflex Microphone Cable Advantages: - High transmission quality due to the usw of fine stranding - Very rugged owing to the thick, soft PVC jacket - Good shielding due to dence helical copper mesh screen - High flexibility makes it easy to reel - Affordable price Application: - Stage application - Home recording Technical Data: - Article number: 200-0008 - Name: Stage 22 Highflex - EAN: 4049371001908 - Properties: Analog - Properties: OFC oxygen free copper - Application area: Stage / live - Application area: Mobile outdoor / indoor - Application area: Installation - Application: Microphone Cable - Colour: purple - Signal transmission: symmetrical - Construction: (2LI2Y0,22mm)DY - Jacket material: PVC - Jacket : 6,40 mm - Jacket : 0.252 " - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm - Inner conductor (audio): 0.0003 sqin - Inner conductor (audio): 0,53 mm - Inner conductor (audio): 0.0209 " - AWG (audio): 24 - Shielding: Copper spiral shielding with 0.10 mm indiv. strands - Shielding factor: 99 % - Copper strands (audio): 28 - Copper strand (audio): 0,10 mm - Copper strand (audio): 0.0039 " - Weight per 1 m: 44 g - Weight at 1000 ft.: 29.6083 lbs - Fire load per m: 0,22 kWh - Style variant: round - Packing: 100 m spool - Temperature min.: -20 C - Temperature max.: 70 C - Width: 6,4 mm - Width: 0.252 " - Height: 6,4 mm - Height: 0.252 " - Capac. cond./cond. per 1 m (audio): 68 pF - Capacity wire/wire at 1 ft. (audio): 20.7264 pF - Capac. cond./shield. per 1 m (audio): 130 pF - Capacity wire/electic screen at 1 ft. (audio): 39.624 pF - Impedance: 100 - Insulation resist. per 1 km: 1 G - Insulation resist. per 1000 feet: 0.3048 G - Insulation resist. per 1 km (audio): 1 G - Insulation resist. per 1000 feet (audio): 0.3048 G - Conductor resistance per 1 km: 87 - Conductor resistance per 1000 ft.: 26.5176 - Shield. resistance per 1 km: 30 - Shield. resistance per 1000 ft.: 9.144 - BPVo-Euroclass: Fca
