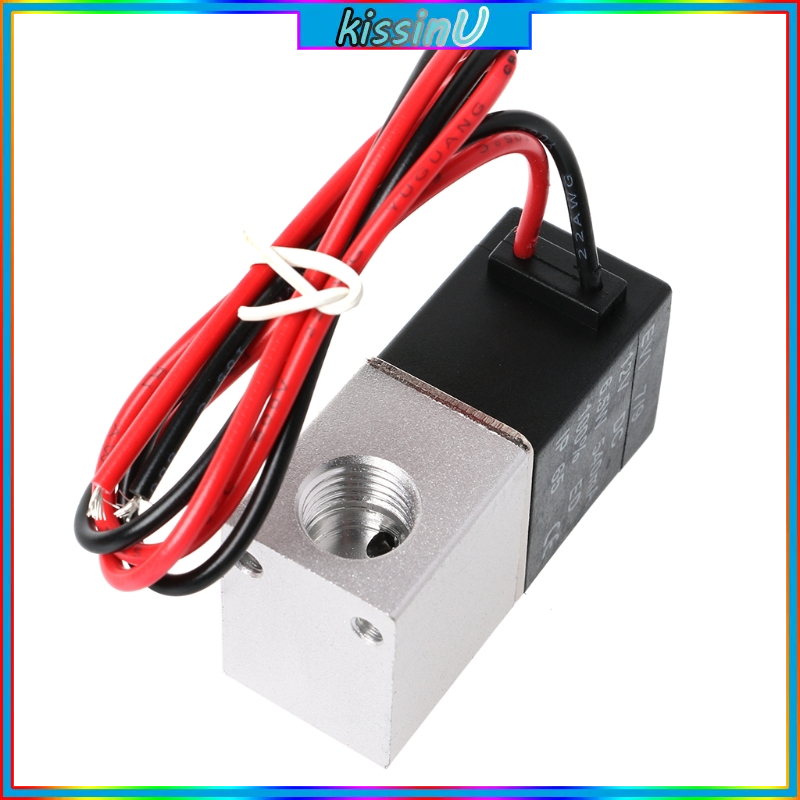

1/4" DC 12V 2 Way Normally Closed Pneumatic Aluminum Electric Solenoid Air Valve

Specifications: Model Number: 2V025-08 Valve Type: 2 Way Normally Closed (Valve opens with energized) Port Size: 1/4" NPT Female Port Coil Voltage: DC 12V Service Media: Air, Gas, Liquid, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow) Shortest Excitation Time: 0.05/s Operating Pressure: 0 - 1.0Mpa(can be operated at 0 PSI (Vacuum)) Operating Temperature: -10 to 80 °C Coil Power: 6.5W Coil Class: F Class IP 65 (CE Certification) Coil Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Material: Body Material: Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Plunger & Spring Material: Stainless Steel Total Size: 3.1x2.2x6cm/1.22x0.87x2.36" Wire Length: 40cm/15.74" Quantity: 1 Pc Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! No Retail Package Package Includes: 1 x Solenoid Valve
