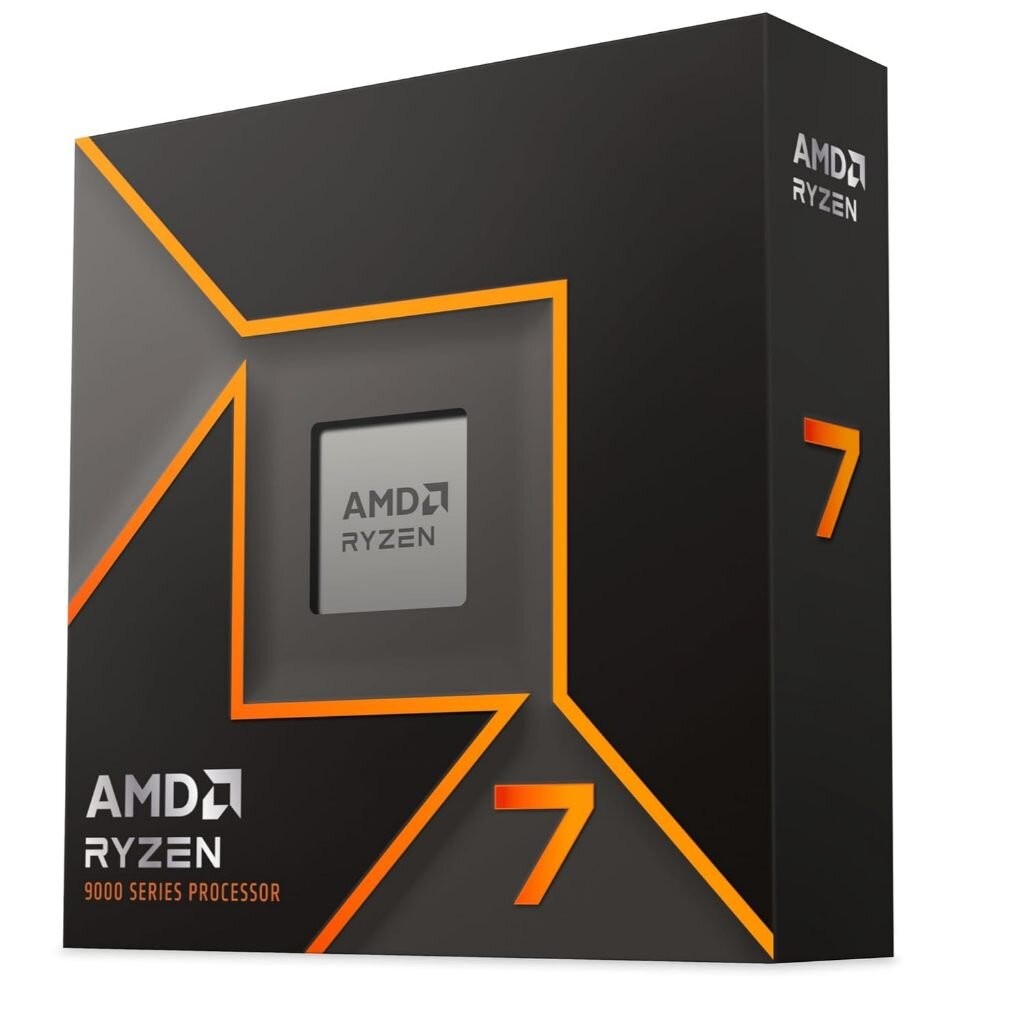

CPU AMD RYZEN 7 9800X3D 8C/16T 4.7GHz Up to 5.2 GHz (ไม่มี Heatsink) Socket AM5

General Specifications Name AMD Ryzen™ 7 9800X3D Family Ryzen Series Ryzen 9000 Series Form Factor Desktops , Boxed Processor Market Segment Enthusiast Desktop AMD PRO Technologies No Regional Availability Global Former Codename Granite Ridge AM5 Architecture Zen 5 # of CPU Cores 8 Multithreading (SMT) Yes # of Threads 16 Max. Boost Clock Up to 5.2 GHz Base Clock 4.7 GHz L1 Cache 640 KB L2 Cache 8 MB L3 Cache 96 MB Default TDP 120W Processor Technology for CPU Cores TSMC 4nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) Not Included Recommended Cooler Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax) 95°C Launch Date 11/07/2024 *OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Connectivity Native USB 3.2 Gen 2 (10Gbps) 4 Native USB 2.0 (480Mbps) 1 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 , 24 NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 192 GB System Memory Subtype UDIMM Max Memory Speed 2x1RDDR5-56002x2RDDR5-56004x1RDDR5-36004x2RDDR5-3600 ECC Support Yes (Requires mobo support) Graphics Capabilities Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DisplayPort™ Alternate Mode Yes
