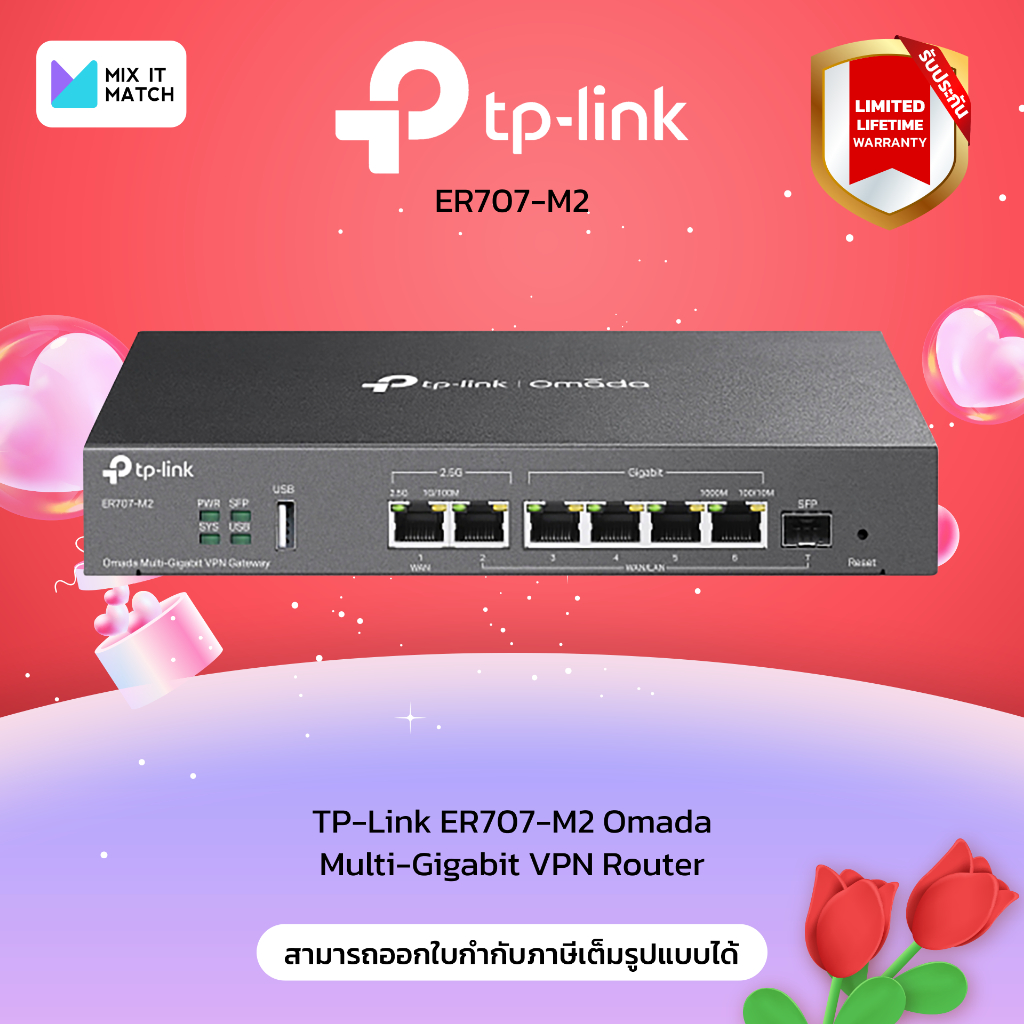

TP-Link ER707-M2 (ER707-M2) Omada Multi-Gigabit VPN Router

HARDWARE FEATURES Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP Interface • 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Fan Quantity • Fanless Button • Reset Button Power Supply • 12V/1.5A Adapter PoE Budget • - Flash • 128MB NAND DRAM • 1 GB DDR4 LED • PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) Dimensions ( W x D x H ) • 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) Protection • 4 kV surge protection Enclosure • Steel Mounting • Desktop/Wall Mounting Max Power Consumption • 14.2 W (with USB2.0 connected) • 7.1 W (without USB2.0 connected) PERFORMANCE Concurrent Session • 500,000 New Sessions /Second • 4,200 NAT (Static IP) • 2364.45 Mbps / 2343.28 Mbps NAT(DHCP) • 2364.24 Mbps / 2326.21 Mbps NAT(PPPoE) • 2350.93 Mbps / 2125.83 Mbps NAT (L2TP) • 1249.04 Mbps / 831.12 Mbps NAT (PPTP) • 1169.23 Mbps / 1175.52 Mbps IPsec VPN Throughput • ESP-MD5-AES256: 537.12 Mbps • ESP-SHA1-AES256: 754.65 Mbps L2TP VPN Throughput • Unencrypted: 1442.65 Mbps • Encrypted: 346.43 Mbps SSL VPN Throughput • 142.99 Mbps 66 Byte Packet forwarding rate • 1832.69 Mbps / 1741.84 Mbps 1,518 Byte Packet forwarding rate • 2461.18 Mbps / 2457.32 Mbps BASIC FUNCTIONS WAN Connection Type • IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6in4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port MAC Clone • Modify WAN/LAN MAC Address† DHCP • DHCP Server/Client • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* IPv6 • WAN Connection VLAN • 802.1Q VLAN IPTV • IGMP v2/v3 Proxy ADVANCED FUNCTIONS Advanced Routing • Static Routing • Policy Routing Bandwidth Control • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP Security • Attack Defense: TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN • Filtering Web Group Filtering URL Filtering Web Security • ARP Inspection: Sending GARP Packets ARP Scanning IP-MAC Binding • Access Control Source/Destination IP Based Access Control Session Limit IP-based Session Limit VPN IPsec VPN • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) PPTP VPN • PPTP VPN Server • PPTP VPN Clients (12) • 60 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server • L2TP VPN Clients (12) • 60 Tunnels (Shared with PPTP) • L2TP over IPSec OpenVPN • OpenVPN Server • OpenVPN Clients (6) • 66 OpenVPN Tunnels* SECURITY Filtering • WEB Group Filtering§ • URL Filtering • Web Security§ ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN Access Control Source/Destination IP Based Access Control AUTHENTICATION Web Authentication • No Authentication • Simple Password* • Hotspot (Local User/Voucher* /SMS*/Radius*) • External Radius Sever • External Portal Sever* MANAGEMENT Omada App • Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support Zero-Touch Provisioning • Yes. Requiring the use of Omada Cloud-Based Controller. Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning) OTHERS Certification • CE, FCC, RoHS Package Contents • ER707-M2
