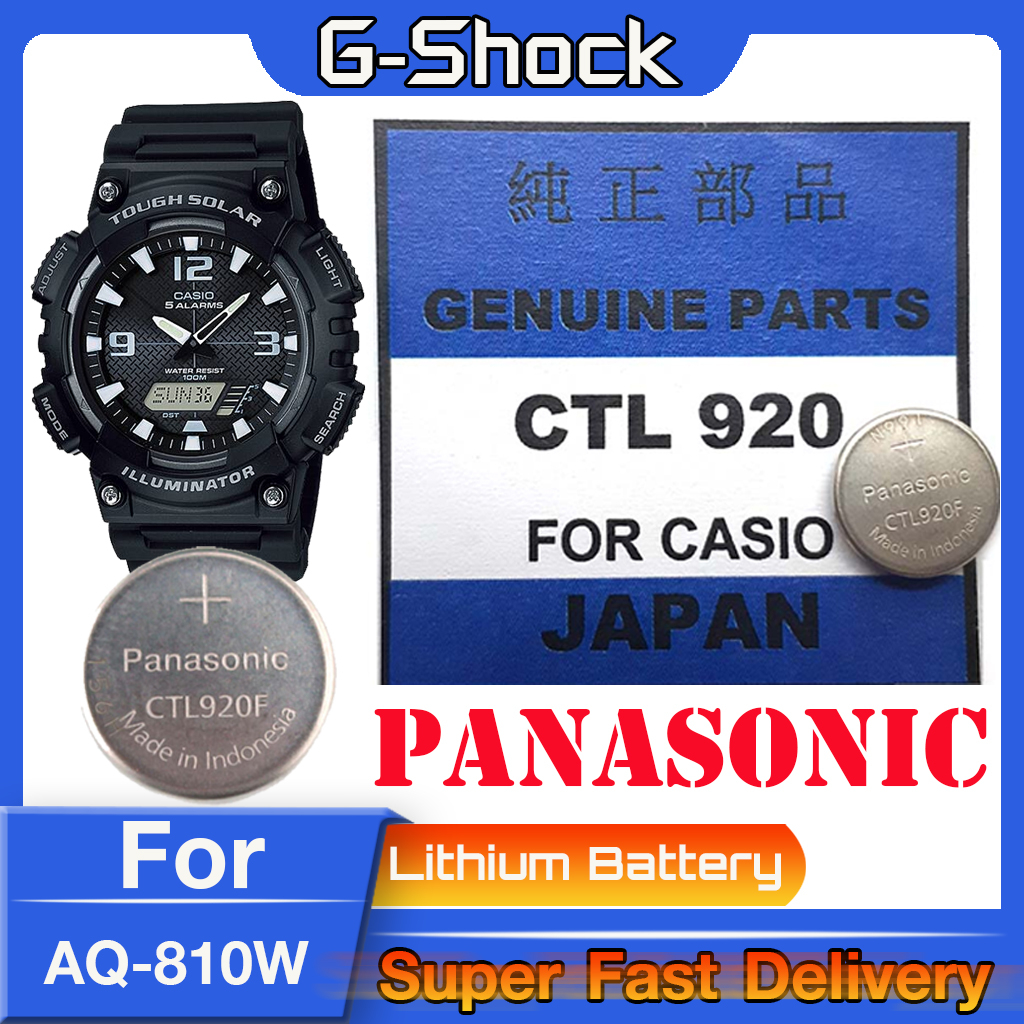

ถ่าน สำหรับนาฬิกา Casio g-shock AQ-S810W แท้ Panasonic CTL920 CTL920F คำเตือน!! ในคลิปมีคำตอบว่าต้องใช้ถ่านรุ่นไหน

Panasonic CTL920F Rechargeable Watch Battery for Casio Solar Watches CTL920 Description CTL920F (CTL920) battery Used to power many models of Casio solar powered watches Rechargeable (battery is supplied without charge and can be charged once fitted inside the watch) Size = 9.5mm x 2mm Suitable for the many of the following models and their variants - please check your watch to make sure this battery is suitable for your particular model Specification Item Performance characteristics Nominal Voltage (V) 2.3 Charging Voltage (V) 2.5 - 2.7 Nominal Capacity (mAh) 7.7 Continuous Standard Drain (mA) 0.05 Diameter (mm) 9.5 Height (mm) 2.0 Weight(Approx.) (g) 0.45 Operating temperature (°C) -20 - 60 Type CTL IEC 62133-2 Certified UL 1642 Certified Panasonic CTL920F Rechargeable Battery (Accumulator) for use in Casio G-4000, G-3000 & EQW-M600 (CTL920) The CTL920F (CTL920) rechargeable battery or accumulator is used to power many Casio solar powered watches including those listed below. รุ่นที่ใช้ถ่าน CTL920F AQS-800W AQS-810W AQG-M100A AQG-M100B EQS-500C EQS-500CG EQS-500DB EQS-500B EQS-500RB EQS-500RBP EQW-A1200D EQW-A1200DB EQW-A1200DC EQW-M1100C EQW-M1100CG EQW-M1100DB EQW-M1100DC EQW-M600C EQW-M600DC EQW-M710 EQW-M710D EQW-M710DB EQW-M710DC EQW-M710L EQW-T720D EQW-T720DC G-1200BD G-1250B G-1250BD G-1250D G-1250G G-1400D G-1500 GS-1050 GS-1050B GW-2000 GW-2000BD GW-2000D GW-2500 GW-2500B GW-2500BD GW-3000B GW-3000BB GW-3000BD GW-3000D GW-3000M GW-3500B GW-3500B GW-3500BB GW-3500BD GW-3500D GW-3500G GW-4000 GW-4000A GW-410TCJ GW-A1000 GW-A1000D GW-A1000FC GW-A1000RAF GW-A1100 GW-A1100FC GW-A1100D GW-A1100DB MTG-B1000 OCW-T1000 OCW-T750TBD OCW-T750TBC OCW-T750TBE Casio CTL920 in our DIY Kit with tools Dimensions: approx.9.5mm (dia) x 2mm (h) Weight: 28g Voltage: 2.3v Capacity: 5.5mAh The power cell in the above Casio CTL920 package is the Panasonic CTL-920F (aka X14547) in our DIY Kit with tools Used in many Casio and some Citizen timepieces The Panasonic CTL920 is a button-type Cobalt Titanium Lithium (CTL) battery that uses lithium titanium oxide as the positive material, carbon as the negative material, and organic electrolyte. Sometimes Panasonic will insert a "A" or "F" i.e. "CTL920F" for their internal use and is the exactly same as CTL920. Your other option is to return the watch to the factory for an expert tune-up and we recommend this if you don't mind the expense because they will fully clean and pressure test (if necessary), put new seals and a new capacitor and guarantee their work. They may not give a price over the phone and ask you to send it with a prepaid return. This is fair because they have to evaluate the condition in order to price-out the solution. Our solution is low cost and fast and is for those who have watched the YouTube videos and are confident of a DIY solution. We do not recommend using a store or kiosk because of their inexperience. Either do it yourself or return to the factory for a trusted tune-up; don't be otherwise sorry with an expensive botched job or incompetence. Please before you order compare our image with your existing power cell; the CTL920 power cell has many Citizen versions which are not interchangeable. Each CTL920 Citizen version is designed for a specific timepiece and caliber or watch movement. Only order after you compare and diligently verify you've selected the correct Citizen version of the CTL920 your timepiece requires. This is easy to do. We do not accept returns on opened product which are non-resaleable after being opened and handled. Please do not use a battery tester or volt ohm meter as these cells may be ruined by testing and they may not indicate the normal voltage of a regular 1.55v disposable watch battery. Please do not handle with your fingers as static electricity, body oil and contaminants may damage the cell. Please only handle with supplied anti-static tweezers and finger cots. If you use a shop or kiosk they probably have never been trained or even seen a rechargeable watch battery, these are not the folks to work with. Ask if they know how to replace a rechargeable watch battery! They often will install as a replacement a regular 1.55v cell replacement which could harm your watch. Make sure you get the original power cell returned to you in a plastic bag or envelope and you mark the date on it. Follow this same procedure for rechargeable coin cells some watches use and we also sell these. Please note that the CTL920 is the basic battery or capacitor engine for many different configurations; look at all the search results for the CTL920 and eyeball match to verify and confirm if you have any doubts. Why waste money taking your watch to a shop when you can do it yourself. These capacitors may resemble a battery but their function is very different.
