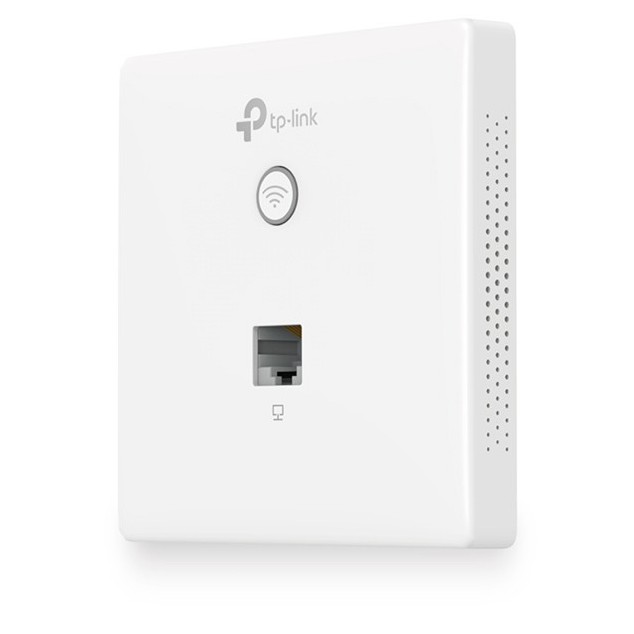

TP-LINK (EAP115-WALL) Wireless N Wall-Plate 2.4GHz 300Mbps Access Point

Product Specification Overview TP-LINK EAP115-WALL Wall-Plate Wireless Access Point มาตรฐาน 802.11N 2.4GHz ความเร็วสูงสุดรวม 300Mbps เสาภายใน 1.8dBi กระจายสัญญาณรอบทิศทาง รองรับ Omada Controller, Captive portal รองรับ POE 802.3af Interface 10/100Mbps Ethernet (RJ-45) Port *2 Button LED/Wi-Fi Button、RESET Power Supply PoE(IEEE 802.3af) Power Consumption 2.8 W Dimensions ( W x D x H ) 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm) Antenna Type Internal 2*1.8dBi Omni Mounting Wall Plate Mounting Physical Security Lock - Hardware Watch Dog Yes Wireless Standards IEEE 802.11n/g/b Frequency 2.4GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Transmit Power CE： ≤20dBm(2.4GHz) Wireless Functions Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK EAP Controller Software Yes Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1,v2c System Logging Local/Remote Syslog Local/Remote Syslog Telnet Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Certification CE, RoHS Package Contents 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall Installation Guide Mounting Screw System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
