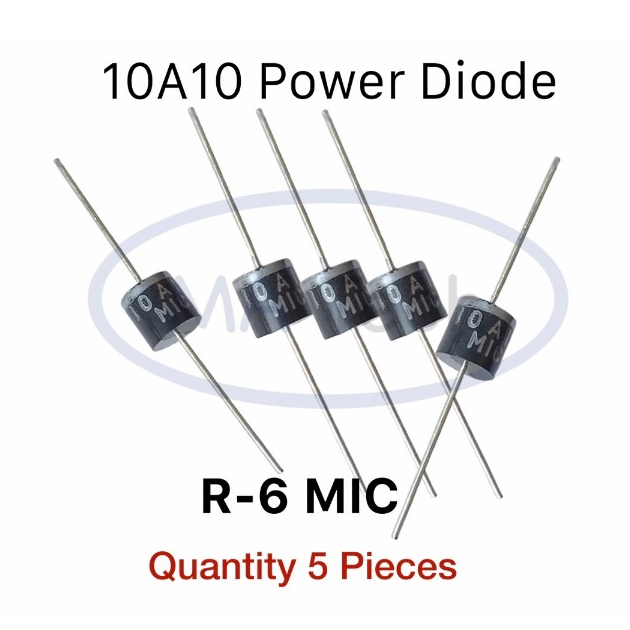

10A10 ไดโอด 10A10 Diode 10A1000V จำนวน 5 ชิ้น 5pcs Diode Power Diode R-6MIC

Highlight ● Can be used to prevent reverse polarity problem ● HV supplies ● Half Wave and Full Wave rectifiers ● Used as a protection device ● Current flow regulators [Package Includes] 5pcs 10A10 Diode Power Diode [Overview] A diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. [Features] ● Can be used to prevent reverse polarity problem ● HV supplies ● Half Wave and Full Wave rectifiers ● Used as a protection device ● Current flow regulators [Specifications] ● Average forward current is 10A ● Forward Voltage drop is 0.95V @10A ● Non-repetitive Peak current is 450A ● Peak Reverse current is 10uA. ● Repetitive reverse voltage is 1000V ● Available in R-6 Package
