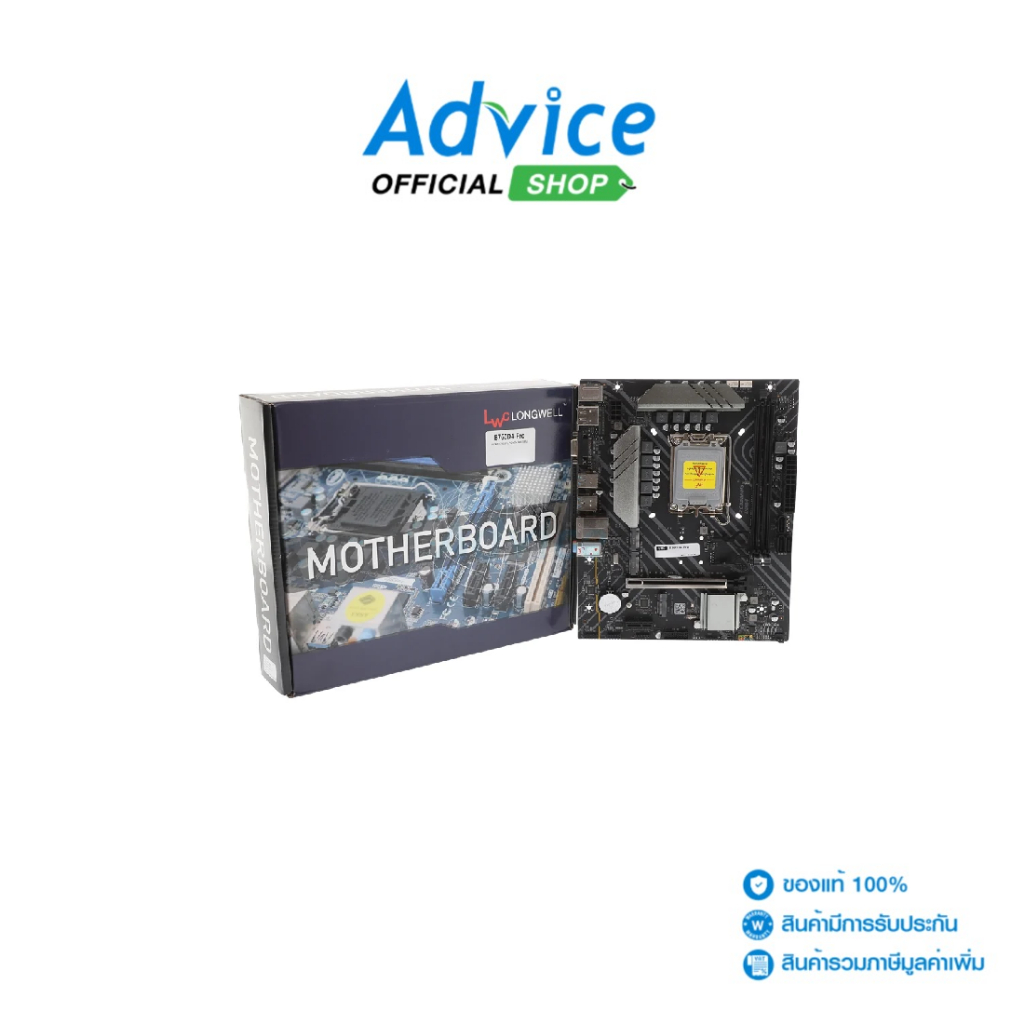

LONGWELL MAINBOARD (1700) B760-PRO DDR4 - A0159757

Brand : LONGWELL Model : B760-PRO (DDR4) CPU Support : Support for 12th, 13th and 14th Generation Intel® Core™ i9 processors Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors Intel® Pentium® processors/Intel® Celeron® processors in the LGA1700 package CPU Brand : Intel Socket : 1700 Chipset : Intel B760 Memory Support : Memory Support 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules Maximum Memory Bus : 3200 Graphics : N/A Multi Graphic Support : None Audio : Audio Realtek® ALC897 codec High Definition Audio Expansion Slots : 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot Maximum PCIe Version : PCIe 4.0 Storage : Total supports 2 x M.2 socket and 3 x SATA III (6Gb/s) ports 2 x M.2 Socket Supports M.2 Type 2240 / 2260 / 2280 SSD module Supports PCI-E 4.0 x4 3 x SATA III Connector (6Gb/s) M.2 Storage Type Support : NVMe M.2 Slot : 2 USB : 1 x USB 3.0 header 1 x USB 2.0 header 4 x USB 3.2 (Gen1/Gen2) ports 2 x USB 2.0 ports Internal I/O Connectors : 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 3 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0 header 1 x USB 2.0 header 1 x Clear CMOS jumper 1 x Speaker Connector Back Panel Connectors : 1 x PS.2 keyboard/mouse port 1 x HDMI port 1 x VGA port 1 x DISPLAY port 4 x USB 3.2 (Gen1/Gen2) ports 2 x USB 2.0 ports 1 x Lan port 3 x audio connector LAN : 10/100/1000 Mb/s auto negotiation Half/Full duplex capability Realtek® RTL8111H Wireless Data Network : None Form Factor : Micro ATX H/W Monitoring : N/A BIOS : N/A Special Features : Support UEFI mode Software Features : N/A Operating System Support : Win 10-11 Package Contents : 1 x SATA cable 1 x I/O Rear Panel 1 x User Manual Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm Net Weight : 0.00 Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm Gross Weight : 0.00 Volume : 0.00 ประกัน : 3 ปี
