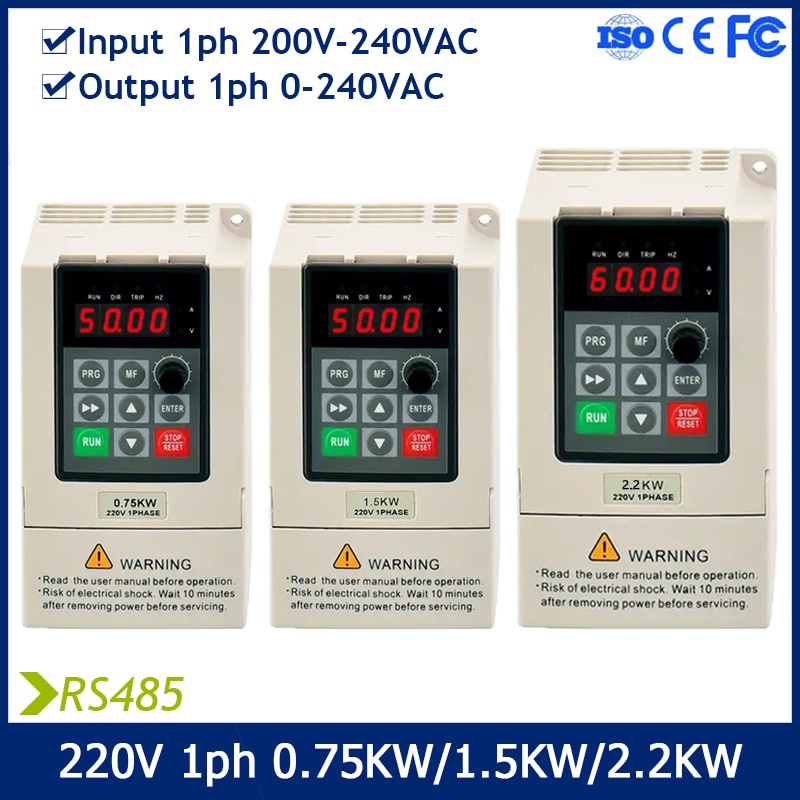

VFD Inverter 0.4KW0.75KW1.5KW2.2KW Single-phase Input 1-phase Output 220V Variable Frequency Control Motor Pump Speed Re

Technical Index and Specification Input : 1.Rated Voltage:1-phase 220V, 50/60HZ 2.Allowed Voltage:1-phase 220V～240V Output: 1.Voltage:1- phase, 0～240V 2.Frequency: Low frequency mode:0～60HZ; High frequency mode:0～999HZ 3.Overload: G type:110% for long-term, 120% for 1 min, 150% for 5s Control Mode:V/F control Protective Function:Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit, default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc. For more function pls ask me for user's manual >>>>>>>>>>>>>>>>>>>>>>>>>>>> Safety Precaution: 1. Before wring, please make sure that the input power is off. 2. The wring work should be operated by the professional electrical engineer. 3. The grounding terminals must be connected with the ground. 4. Having paused circuit wiring emergently, please make sure that the check is effective. 5. Do not connect the output wire of the inverter with the shell, and pay attention that the output wire should not be short-circuited. 6. Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter. 7. Do not do the voltage withstand test on the inverter. 8. Please connect the brake resistor according to the wiring diagram. 9. Do not connect the power to the U, V, W output terminals. 10. Do not connect the contactor with the output circuit.
