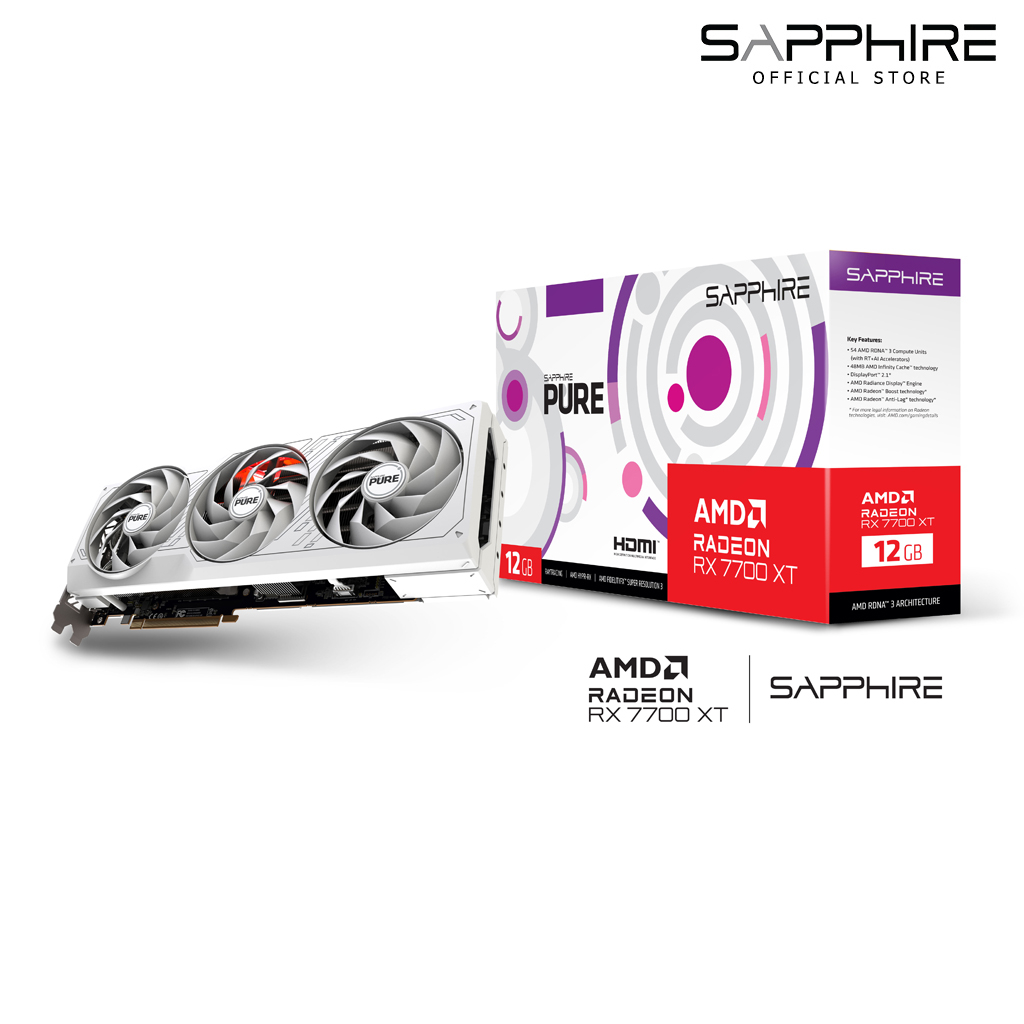

SAPPHIRE VGA PURE AMD RADEON RX 7700 XTGAMING OC 12GB GDDR6 DUAL HDMI/DUAL DP

Specifications #SKU#: 11335-03-20G SAPPHIRE PURE AMD Radeon™ RX 7700 XT Gaming Graphics Card with 12GB GDDR6, AMD RDNA™ 3 architecture GPU AMD Radeon™ RX 7700 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture Engine Clock Boost Clock: Up to 2584 MHz Game Clock: Up to 2226MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. Stream Processors 3456 Compute Units 54 CU (with RT+AI Accelerators) Infinity Cache 48MB Ray Accelerators 54 Memory Size/Bus 12GB/192 bit GDDR6 Memory Clock 18 Gbps Effective Displays Maximum 4 Displays Resolution HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 Interface PCI-Express 4.0 x16 Output 2x HDMI 2x DisplayPort BIOS Support UEFI Game Index 1440P Sapphire Features Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate Red LED SAPPHIRE Logo Two-Ball Bearing Fans Angular Velocity Fan Blade TriXX Supported TriXX Boost Accessories Bundled Graphics Card Supporter AMD Features AMD RDNA™ 3 Architecture 54 AMD RDNA™ 3 Compute Units 48MB AMD Infinity Cache™ Technology DisplayPort™ 2.1 Support AMD Radiance Display™ Engine 12GB GDDR6 on 192-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology* Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ Technology Cooling 3 Fans Form Factor 2.5 slot, ATX Dimension: 320(L)X 128.75(W)X 52.57 (H)mm Power Consumption 240W Total Board Power OS Linux®, Windows® 10, and Windows 11. 64-bit operating system required System Requirement Minimum 700 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. -Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications. -Colors of PCB or other components may differ from those illustrated. -SAPPHIRE reserves the right to update or revise specifications without prior notice. -All trademarks and logos are acknowledged as the property of their respective holders. *The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. https://www.sapphiretech.com/en/consumer/pure-radeon-rx-7700-xt-12g-gddr6
