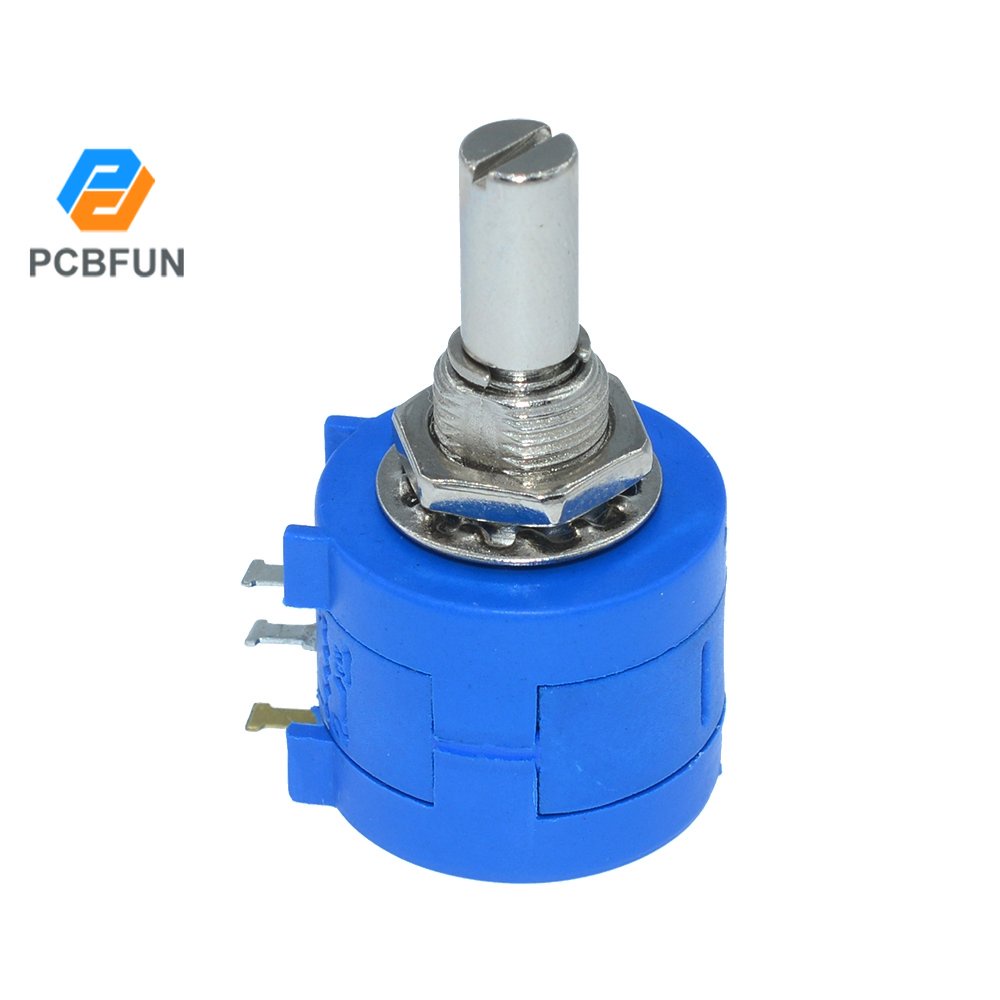

PCBFUN 3590 s - 2-103 l 10 k ohm มิเตอร์แบบปรับได้ 10 turns

Specification: Material: Plastic Color: Blue Model: 3590S Type: Rotary Shaft Technology: Wirewound Turns: 10 Spinning life: 1,000,000 revolutions Power: 2W Resistance Value: 500Ω, 1KΩ, 2KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ (Option) Resistance Tolerance: ±5% Linearity: ±0.25% Shaft Diameter: 6mm/0.24" Threaded Diameter: 9mm/0.35" Total Length: 40mm/1.6" Load life: 1000 hours Mechanical angle: 3600° ±10° Operating temperature range: -55℃ - 125℃ Size(No Include Shaft): 22x19mm/0.9"x0.7"(DxH) #DIYMORE #3590S-2-103L #10K #Ohm #Precision #Multiturn #Wirewound #Potentiometer #10 #Turns #Adjustable #Resistor
