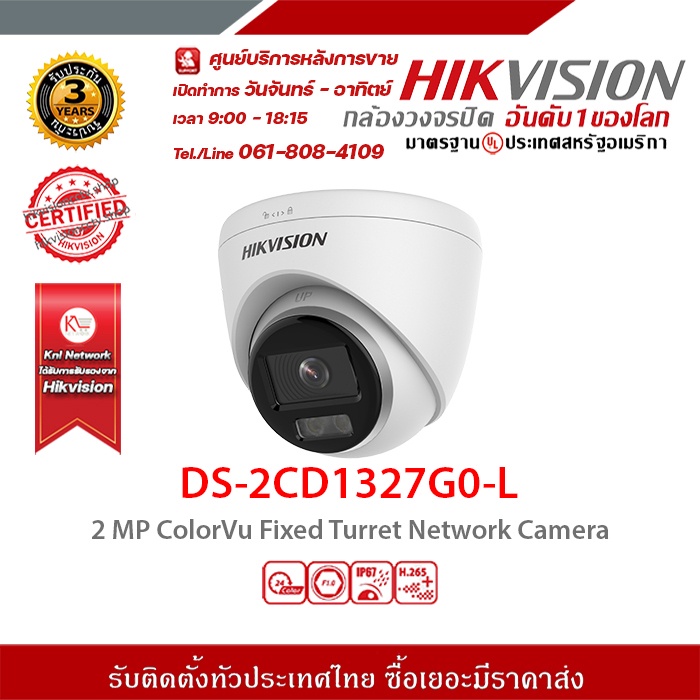

HIKVISION DS-2CD1327G0-L 2 mp กล้องวงจรปิดความละเอียด 2 ล้านพิกเซล รองรับระบบ 4 ระบบ

Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON) Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° P/N P/N Wide Dynamic Range Digital WDR Lens Lens Type & FOV 2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° Aperture F1.0 Lens Mount M12 Aperture Type Fixed Depth Of Focus 2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞ Illuminator Smart Supplement Light Yes Supplement Light White White Light Range Up to 30 m Video Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type BaseLine Profile/Main Profile/High Profile H.265 Type Main Profile Region Of Interest (ROI) 1 fixed region for main stream Network Simultaneous Live View Up to 6 channels API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK Protocols TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ Image Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port Intelligent (Traditional Algorithm) Basic Event Motion detection, exception (illegal login) General Linkage Method Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required. Web Client Language English General Function Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter Software Reset Reset via web browser and client software Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection Power Consumption And Current 12 VDC, 0.30 A, max. 3.6 W PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W Power Interface Ø5.5 mm coaxial power plug Material Main body: metal; enclosure and base: plastic Camera Dimension Ø110 × 100.8 mm (4.3" × 4.0") Package Dimension 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") Camera Weight Approx. 350 g (0.7 lb.) With Package Weight Approx. 500 g (1.1 lb.) Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection Ingression protection: IP67 (IEC 60529-2013)
