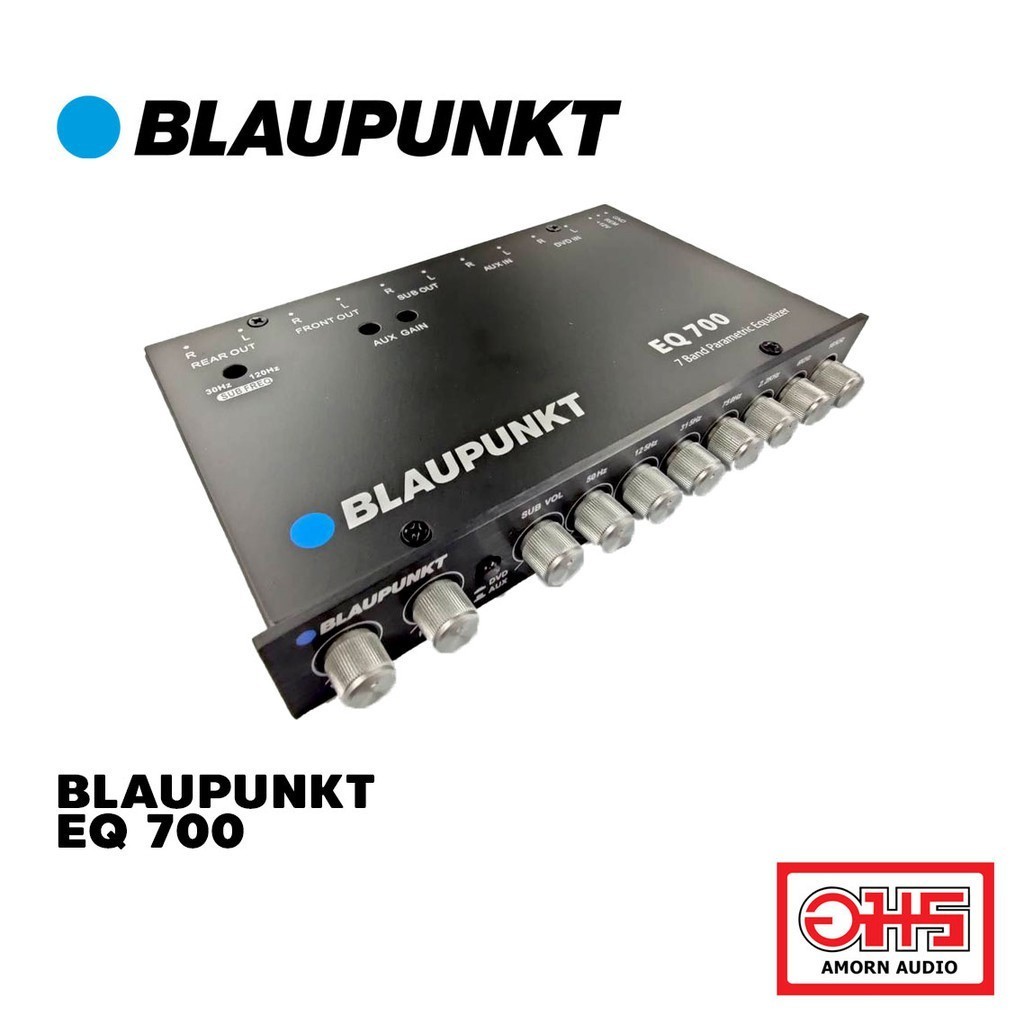

BLAUPUNKT 7-BAND EQUALIZE EQ 700 7V RMS Max. Output Voltage

SPECIFICATIONS Specifications : Power Supply : 11-15V DC Neg. Ground Max. ouput Voltage : 7V RMS Pre Graphic Frequency : 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6KHz, 16KHz Equalization Range : 12dB Subwoofer Frequency : 30-120Hz Input Impedance : 15K Ohms S/N Ratio : 90dB Total Harmonic Distortion : 0.05% Channel Separation : 70dB Frequency Response : 10Hz-50KHz (-3dB)
