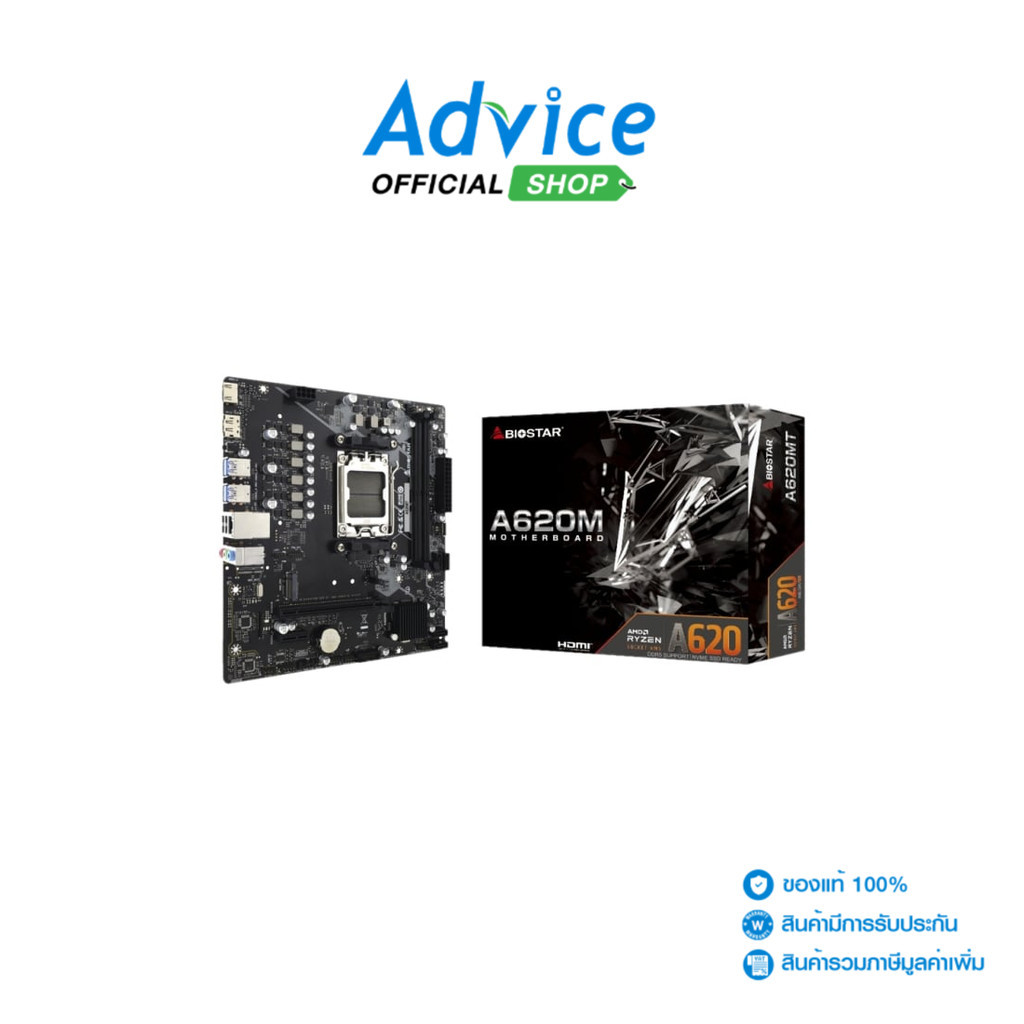

BIOSTAR MAINBOARD (AM5) A620MT - A0156515

Brand : BIOSTAR Model : A620MT CPU Support : Socket AM5 support AMD® Ryzen™ 7000 series Processors Support for future AMD Ryzen processors with BIOS update * Please refer to www.biostar.com.tw for CPU support list. CPU Brand : AMD Socket : AM5 Chipset : AMD A620 Memory Support : AMD Ryzen 7000 series Processors: Supports Dual Channel DDR5 4800/ 5200/ 5400(OC)/ 5600(OC)/ 6000+(OC) 2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module * Please refer to www.biostar.com.tw for Memory support list. Maximum Memory Bus : 6000 Graphics : By CPU model Supports DX12 Supports HDCP Multi Graphic Support : None Audio : ALC897 7.1 Channels, High Definition Audio, Hi-Fi Expansion Slots : AMD Ryzen 7000 Series Processors 1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode) AMD A620 Chipset 1 x PCIe 3.0 x1 Slot Maximum PCIe Version : PCIe 4.0 Storage : Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports AMD Ryzen 7000 Series Processors 1 x M.2 (Key M) Socket (M2M_CPU) : Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD AMD A620 Chipset 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 M.2 Storage Type Support : NVMe M.2 Slot : 1 USB : 1 x USB 3.2 Gen2 Type-C port (1 via internal headers) 6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) Internal I/O Connectors : 4 x SATA III Connector (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header Back Panel Connectors : 1 x BIOS UPDATE Button 1 x HDMI Port (HDMI1.4) 1 x DP Port (DP1.2) 4 x USB 3.2 (Gen1) Type-A Ports 2 x USB 2.0 Type-A Ports 1 x Giga LAN port 3 x Audio Jack LAN : Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Wireless Data Network : None Form Factor : Micro ATX H/W Monitoring : CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring BIOS : N/A Special Features : N/A Software Features : BullGuard Operating System Support : Supports Windows 10(64bit)/ 11(64bit) * Biostar reserves the right to add or remove support for any OS with or without notice. Package Contents : 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor Dimension (W x D x H) : 22.10 x 23.50 x 0.00 cm Net Weight : 0.00 Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm Gross Weight : 0.00 Volume : 0.00 ประกัน : 3 ปี
