Tcuteit Usb 3.1 สายเคเบิ้ลต่อขยายเมนบอร์ด Type E To Type C F

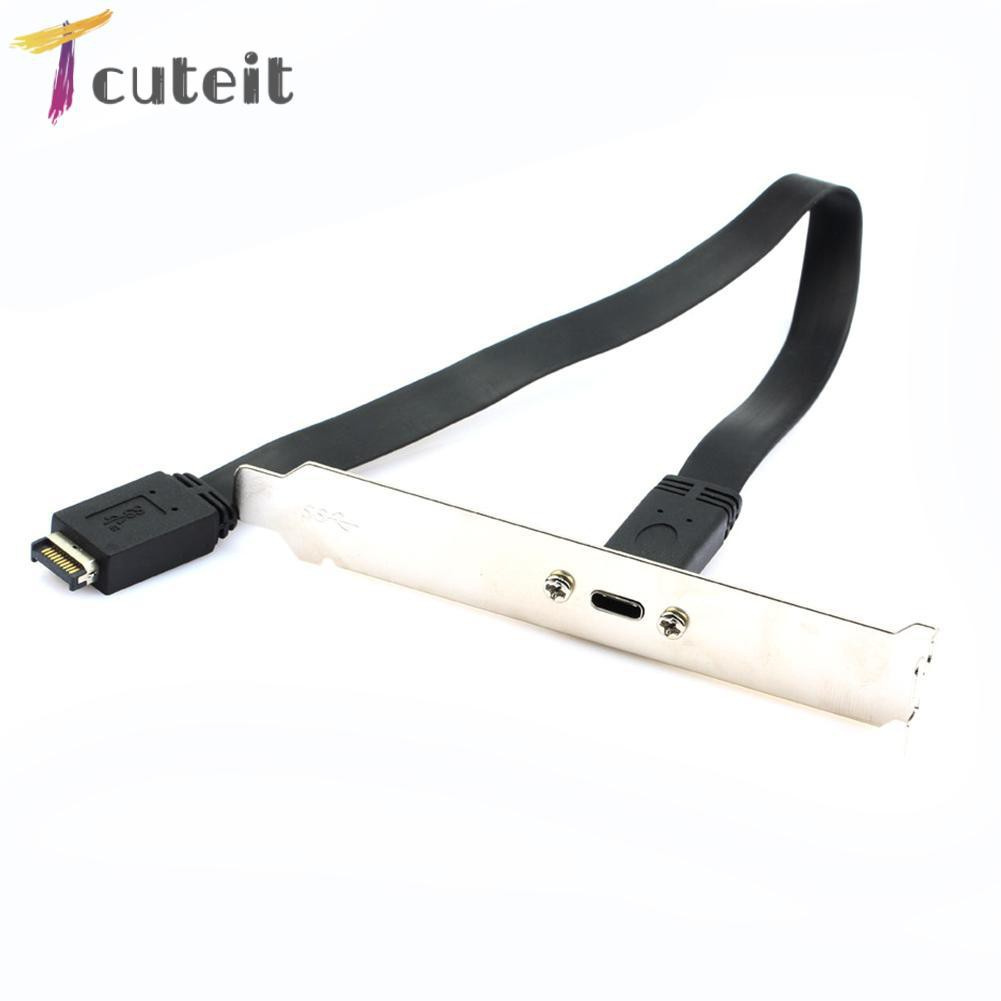

* USB 3.1 Front Panel Header Type E Male To USB-C Type C Female Motherboard Expansion Cable Connector Features: 1. Using the USB3.1 TYPE-E port of the motherboard to Type-C female, and fix PCI bit of the chassis to facilitate the connection of TYPE-C devices bringing forward positive and negative plugging. 10Gbps high-speed transmission, 100W power supply and other functions. 2. According to the standard developed by USB association, Using 16 core USB3.1 connection lines and 4 sets of high-speed signal lines, the speed of data transmission is faster. The shielding layer uses the winding process of tin-coated copper wire to achieve the standard of complete shielding, stable and efficient data transmission. 3. TYPE-C female head with nut design, facilitate the chassis rear PCI position baffle fixed. Has passed the compatibility test, and all devices equipped with Type-E port can be accessed and used normally. Specifications: Wire: 24+30AWG OD: 4.8mm Internal Mold Material: Transparent PE Material External Mold Material: Environment-Friendly PVC Material Color: Black Line Length: 30cm/11.81" Usage: The USB3.1 type-E port of the motherboard is converted to the TYPE-C female port. Using the PCI position of the chassis to facilitate the connection of the TYPE-C equipment, the main board equipped with the USB TYPE-E base seat is applied. Warm Tip: Only when the motherboard has USB3.1 TYPE-E port can it be accessed normally. Equipped with intelligent PCI full high baffle is suitable for standard chassis installation, small chassis baffle also can be used. Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3mm measuring deviation due to manual measurement. Included: 1 X Motherboard Expansion Cable(Including Baffle)
