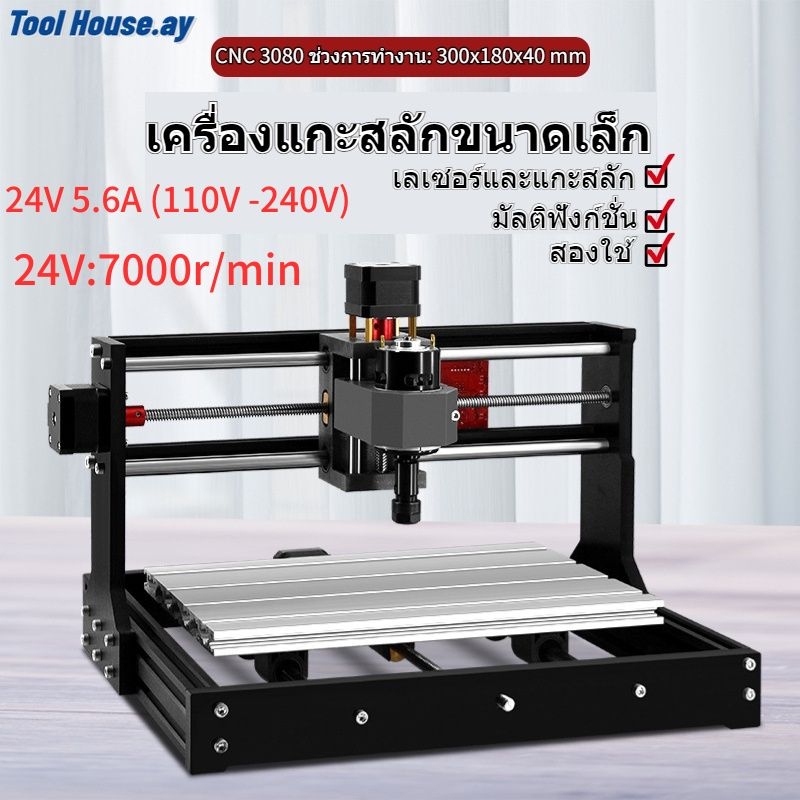

[เครื่องแกะสลัก CNC] ชุดเครื่องมือเราน์เตอร์ Cnc 3018 Pro/Mini Diy สําหรับงานไม้อะคริลิค 110-240V

♚ Welcome to Tool House.ay ♚ Follow shop : Free gift Cheap price, excellent quality Place an order now, ship out within 24 hours Feature: 1. The engraving machine adopts the GRBL control system, which has the characteristics of high performance and high reliability 2. The motherboard development board is efficient and stable, easy to maintain 3. The engraving head of the engraving machine can use a cutter or a laser engraving head, and the engraving head can be replaced. 4. The product can provide computer operating software in English language, allowing you to easily carry out engraving operations, any DIY 5. There are 3 guide rails in each moving direction, providing better stability and improving engraving accuracy 6. Suitable for plastic, wood, acrylic, PVC, PCB and other soft materials Specification: Item Type: CNC Engraving Machine Material: Aluminum + Industrial Plastics + Plastic Working Range: 300x180x40 mm Frame Size: Approx. 380 x 315 x 225mm / 15 x 12.4 x 8.9in (XYZ does not include motor protruding parts) Spindle:775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min Stepping Motor: 1.3A 0.25N.m Screw Rod: T8 Screw Rod Power Supply: 24V 5.6A (110V -240V) Support System: for Windows XP / for Win 7 / for Win 8 / for Win10 Standard: Complete set of parts machines and installation tools Package List: 1 X Loading Platform 1 X English User Manual 1 X Data Wire 1 X Fixture Accessory Bag 2 X 42 Stepper Motor 1 X Machine Accessories Package 1 X Power Wire 1 X Adapter 4 X Sliding Bearing 1 X Nut Holder 4 X Linear Guide 2 X Screw Rod 1 Dozen Tie 2 X Short Profile 2 X Long Profile 2 X Aluminum Plate 1 X Drill Tool Holder Kit (including spindle motor x 1, stepper motor x 1) 1 X Tool Chuck 1 X Motor Data Cable Bag 1 X Motherboard 1 X Drill Kit 1 X Disc 2 X Engraving Machine Side Bracket Board Note: New‑style and old‑style are shipped randomly Item Type: CNC Engraving Machine Control Board Specification: Connection: USB (USB CH340) Software: For GRBL Controller, for UniversalGcodeSender Main Control Chip: For Atmel 328P Spindle Drive Chip: For MOSFET (recommended 24V, current within 10A) Spindle PWM Speed Regulation: Support Support Stepper Motor: 12V, within 1.5A, it is recommended that the maximum current be less than 2A, and heating. (any stepper motor 42, 57) Laser Engraving: Support Power Interface: 5.5-2.5mm DC interface Supports: For GRBL Contol or Candle (3 axes); Laser for Grbl Support System: For Windows XP 7 8 10 Support Laser: 12V 5A maximum Spindle Motor Interface: Maximum support 400W DC spindle motor Support XYZ three axes control, spindle, laser head Package List: 1 x CNC Engraving Machine Control Board 1 x USB Data Cable #CNCEngravingMachine #CNC3018-PROEngravingMachine #CNC3018Pro/miniEngravingMachine #DIYCNCRouterKit #CNCMillingMachine
