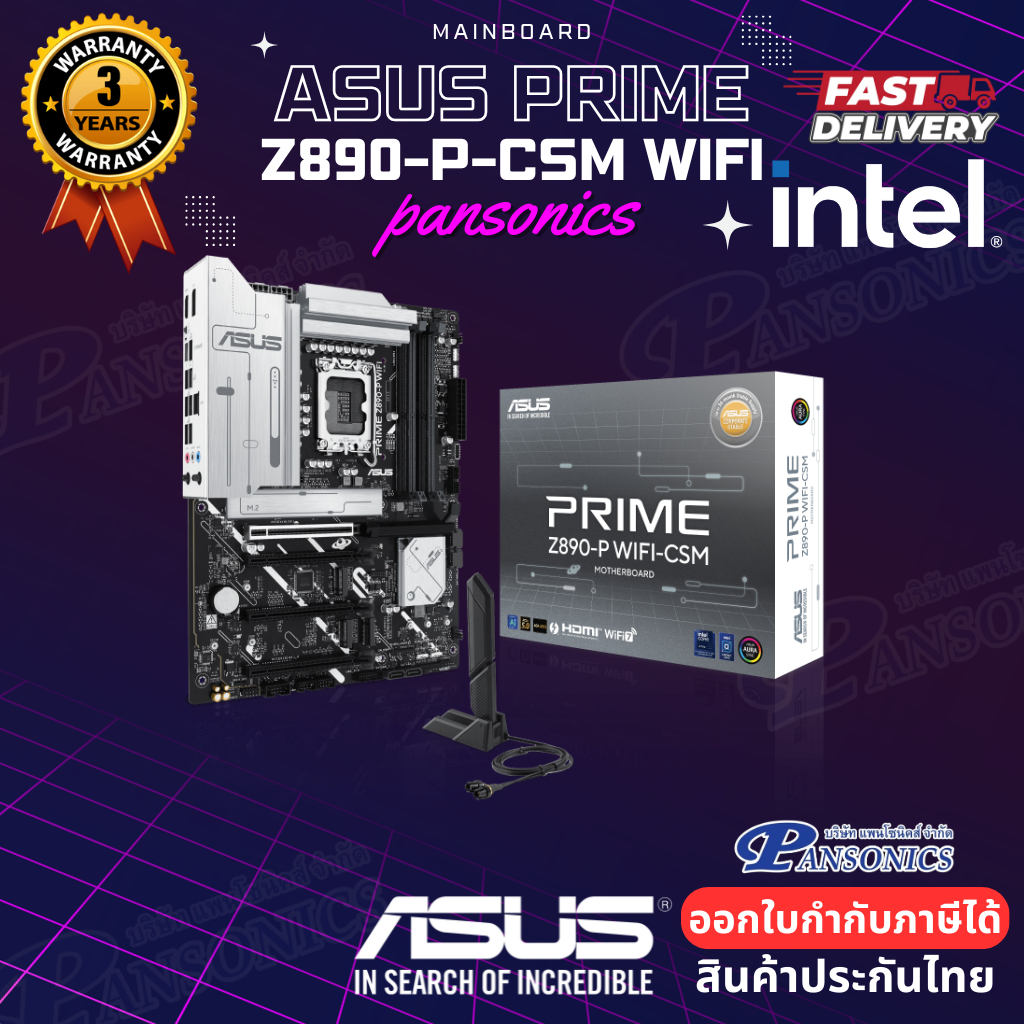

AINBOARD ASUS PRIME Z890-P WIFI-CSM (INTEL SOCKET 1851 DDR5 ATX) (รับประกัน3ปี)

model BrandAsus ModelPRIME Z890-P WIFI-CSM CPU Socket1851 (Arrow Lake-S) Wattage125W ChipsetIntel Z890 SeriesCore Ultra 5 , Core Ultra 7 , Core Ultra 9 memory Slot4 Memory TypeDDR5 Max. Capacity192 GB Speed4800 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC) , 8200 (OC) , 8400 (OC) , 8600 (OC) , 8666 (OC) Graphic & Audio GraphicRequires a CPU with Integrated Graphics. — • 1 x DisplayPort** • 1 x HDMITM port*** • 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs**** — * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. **** In DP alt mode, supports up to UHBR20. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. AudioRealtek 7.1 Surround Sound High Definition Audio CODEC* Audio Features - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers — * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Storage SATA 2- Port SATA 34 Port RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. M.24 x M.2 slots — Intel Core Ultra Processors (Series 2)* • M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) — Intel Z890 Chipset • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Port expansion slots DetailsIntel Core Ultra Processors (Series 2)* • 1 x PCIe 5.0 x16 slot — Intel Z890 Chipset • 2 x PCIe 4.0 x16 slots (support x4 mode) • 1 x PCIe 4.0 x16 slot (supports x1 mode) — * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Slot1 x PCIe 5.0 x16 Slot , 3 x PCIe 4.0 x16 Slot
