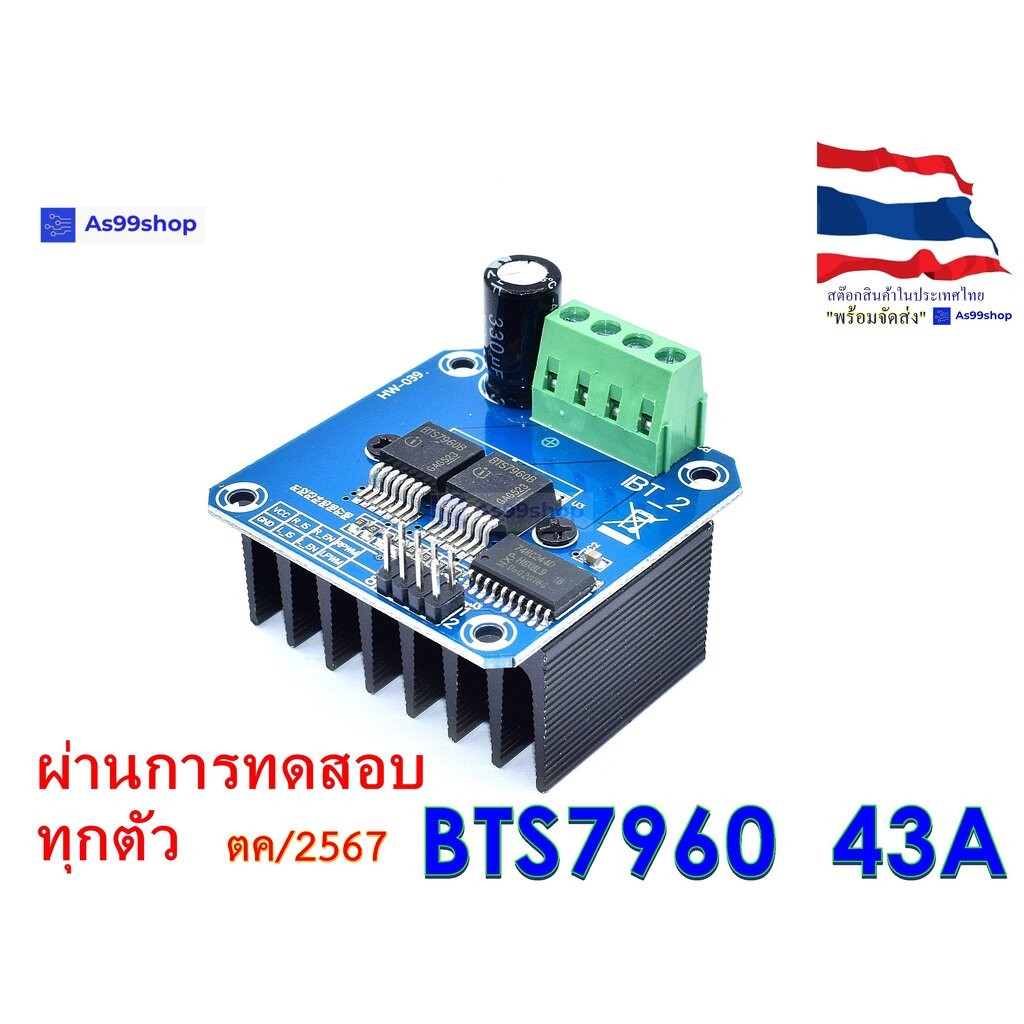

BTS7960 บอร์ดขับมอเตอร์ 43A

BTS7960 บอร์ดขับมอเตอร์ 43A ( สินค้าล็อตเดือน ตุลาคม/2567 ผ่านการทดสอบทุกตัว) Operating Voltage 5.5 to 27V (B+) Path resistance of typ. 16 mOhm at 25C Low quiescent current of typ. 7 uA at 25C PWM capability of up to 25 kHz combined with active freewheeling Switched mode current limitation for reduced power dissipation in overcurrent Current limitation level of 43 A typ. Status flag diagnosis with current sense capability Overtemperature shut down with latch behaviour Overvoltage lock out Undervoltage shut down Driver circuit with logic level inputs Adjustable slew rates for optimized EMI 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accepts voltages higher than VCC) ////////https://www.youtube.com/watch?v=UmEwfebD28o
