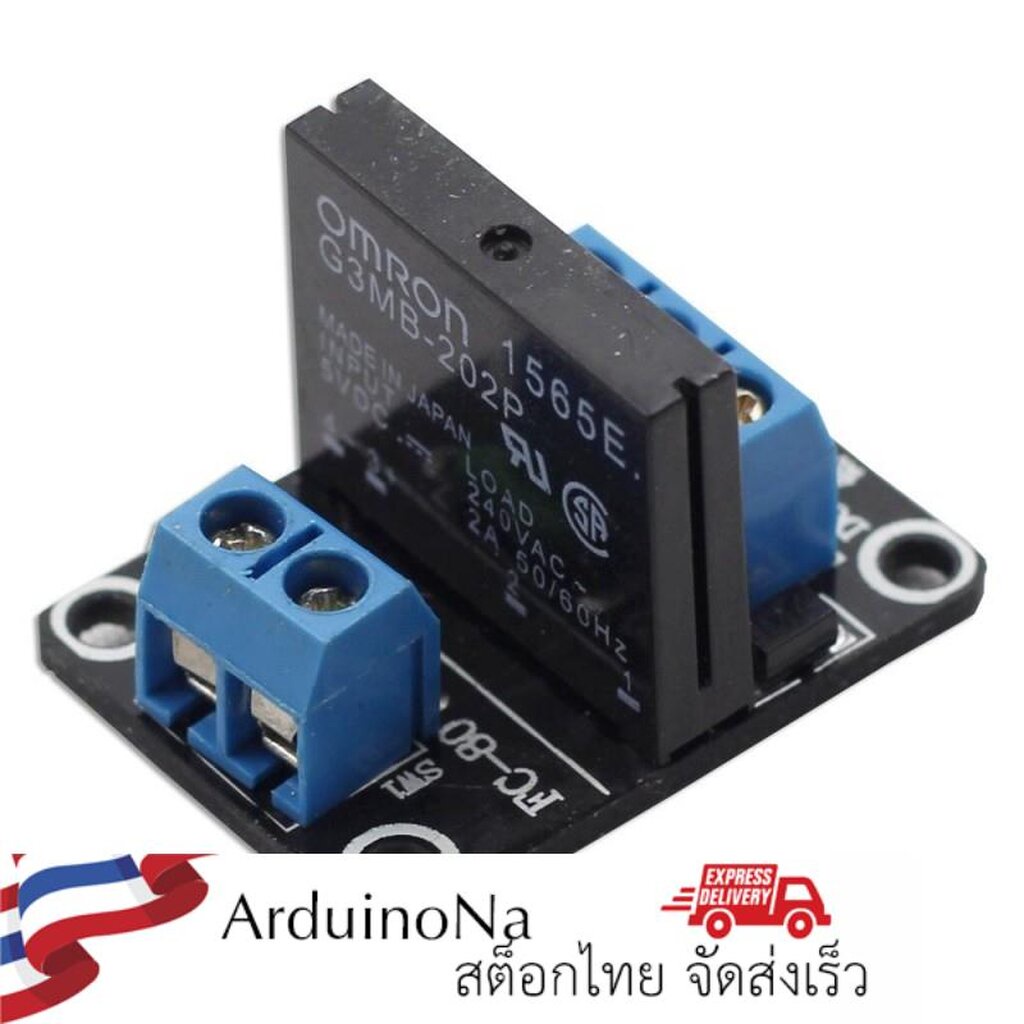

โซลิดสเตตรีเลย์ 1 ช่อง 5V low-level solid state relay module 240V with fuse 2A SSR 5v

Description: - Omron 5V solid state relay (240V, 2A), output port with resistance-type fuse (240V, 2A) - Input power source: 5V DC (160MA) - Input control signal voltage: 0-2.5V state low level when the relay is OFF, 3.3-5V State High level when the relay is ON. - 2.54 CM pin header and blue KF301 terminal, more convenient for control line Specification: - DC +: connected to positive power source (supply power according to the relay voltage) - DC -: connected to negative power source - CH1: 1-channel relay module signal triggering end (effective at high level) - Dimension: Size: 25 x 34 x 25mm
