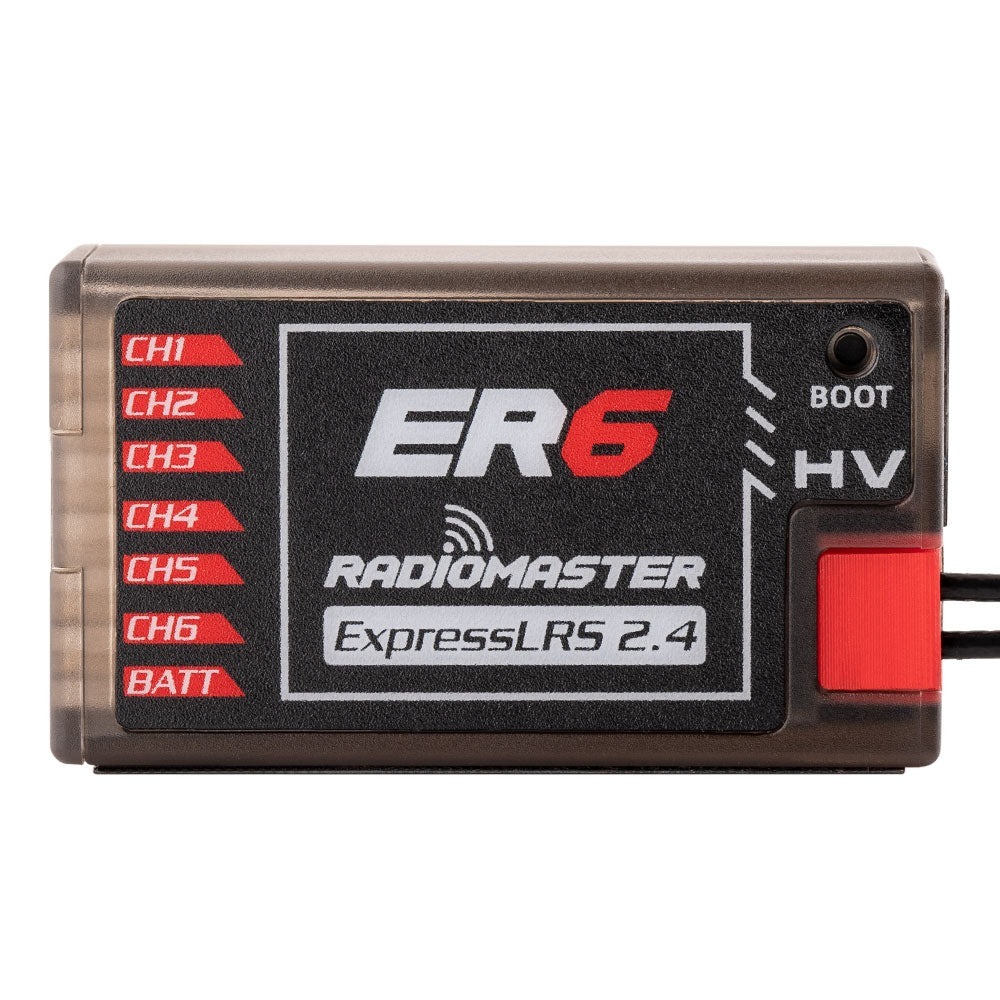

RadioMaster ER6 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby. The ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength. Features Based on the Revolutionary ExpressLRS System High performance, high reliability, flexible configuration, fast response speed and ultra-long range Support 6 PWM Channels Optimized ground up PCB design Automatically voltage telemetry of external battery voltage or built-in receiver voltage Supports Wi-Fi updates and WEBUI configuration High quality 2.54 mm connector Standard 20 cm High Sensitivity Antenna Reserve 4pin CRSF input port The shell adopts one-piece molding process with high structural strength For fixed-wing aircraft and more Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS Specification Item: ER6 2.4GHz ELRS PWM Receiver Power supply: DC 4.5 - 8.4V Antenna type: 20cm high sensitivity dual antenna Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 6CH PWM Serial Output: CRSF / Sbus Telemetry power: maximum 100mw (LUA Adjustable) Telemetry Battery voltage detection range: DC 4.0 - 35V Includes 1 * ER6 2.4GHz ELRS PWM Receiver 1 * Voltage telemetry wire (Type-B) 1 * CRSF wire 1 * ELRS- RX- SBUS wire 1 * User Card Bus interface: CRSF Weight: 14.5 grams Dimensions: 43*25*15mm Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX
