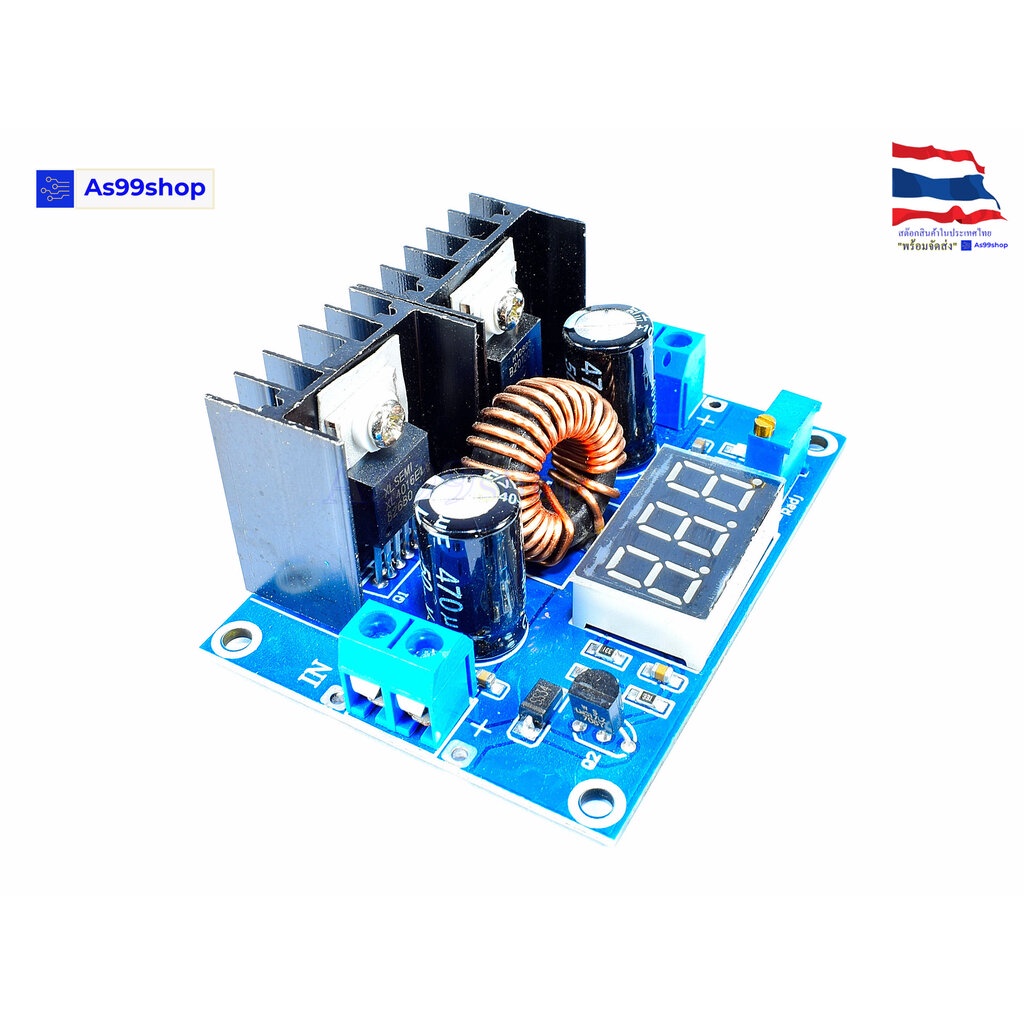

DC-DC XL4016E1 high power 8A with voltage regulator step-down แปลงไฟจาก 4 - 40 Volt เป็น 1.25 - 36 Volt 8Amp

DC-DC XL4016E1 high power / 8A with voltage regulator step-down แปลงไฟจาก 4 - 40 Volt เป็น 1.25 - 36 Volt 8Amp 1. The input voltage range of 4-40V, the output voltage range of 1.25-36V. 2. The digital display is the output voltage. 3. Adjust the potentiometer knob: clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load. 4. more than 5A current, please enhance heat dissipation. 5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V Product Name: DC voltage regulator module. Product Type: XH-M404. Voltage mode: PWM modulation. Input voltage: DC4-40V. Output voltage: DC1.25 ~ 36V. Maximum current: 8A (long work proposals 5A). Maximum power: 200W. Conversion efficiency: 94%. Switching Frequency: 180KHz. Protection: short circuit protection, input reverse polarity protection, over-temperature protection (over temperature cut off the output).
