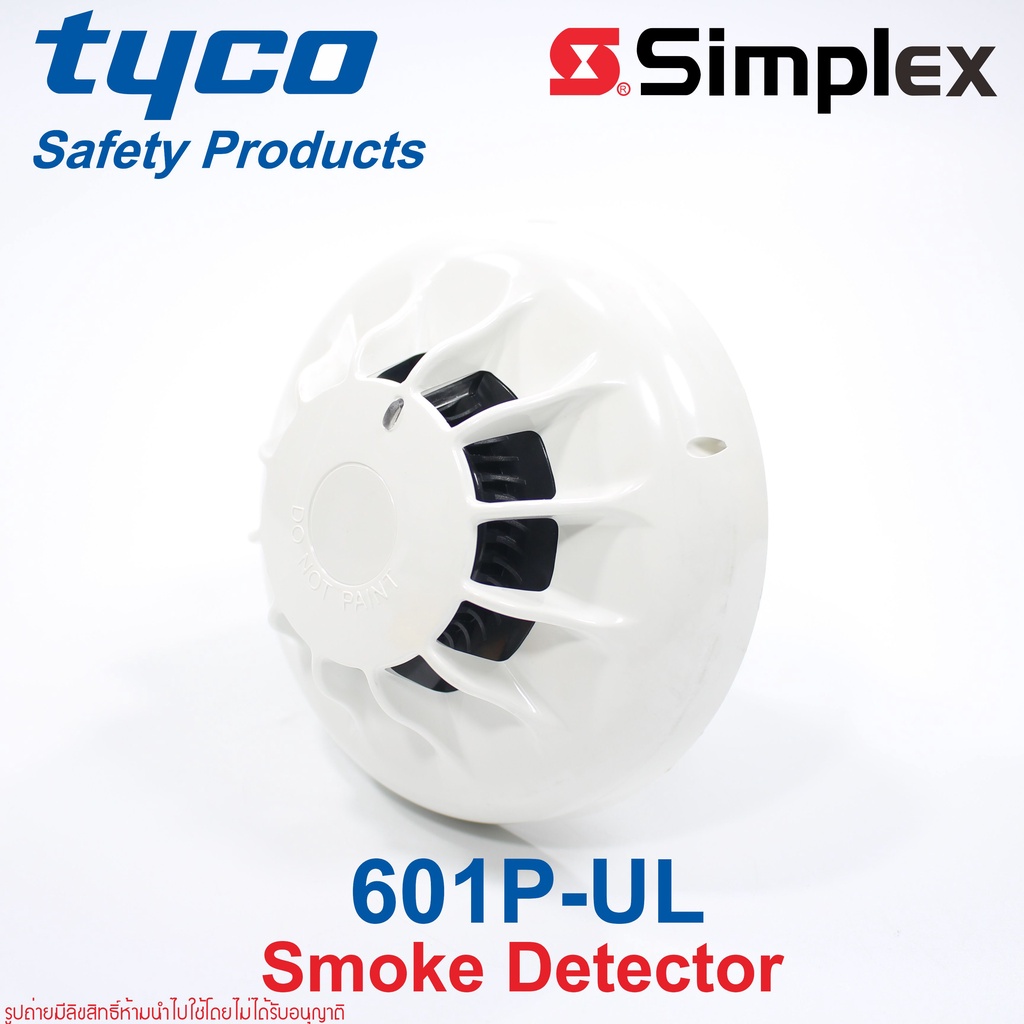

601P-UL Tyco 601P-UL Simplex 601P-UL Simplex Optical Smoke Detector Mounted 601P-UL Smoke

**** ก่อนสั่งซื้อ ตรวจสอบสต๊อกสินค้า และราคาล่าสุด จากทางร้าน ผ่านช่องแชทก่อนทุกครั้ง **** ***** ราคารวมฐานยึด รหัสสินค้า 517-050-019 ****** Features Series 600 Optical Smoke Detector details: • Superior performance and reliability • Attractive new design • Designed for fast and easy installation • Unique ‘park’ position for commissioning and service procedures • Interfaces seamlessly with a wide range of panels • Compatible with Tyco® 600 Series for easy upgrade • Low operating current, up to 32 detectors per zone • Optional remote alarm indicating LED • Low profile, discrete and unobtrusive • Designed for EMI compatibility • UL listed to Standard 268 Models available in two sensitivity settings: • 601P-UL Standard Sensitivity, nominal 2.11 to 3.8%/ft obscuration • 601P-UL-L Special Application Sensitivity, nominal 3.0 to 3.8%/ft obscuration Functional chamber enclosure: • Concentric baffle design enhances smoke capture by directing air flow to the smoke chamber Specifications Voltage 10.5 to 33 VDC from fire alarm control panel IDC 62 μA @ 10.5 VDC 65 μA @ 24 VDCStandby Current 70 μA @ 33 VDC Alarm Current Up to 68 mA maximum, exact current is determined by alarm current limiting of connected IDC Storage Temperature Range -13° F to 176° F (-25° C to 80° C) Operating Temperature Range 32° F to 100° F (0° C to 38° C) Humidity Range Up to 95% non-condensing Color White 019 Dimensions In base 5” Dia. x 2-1/8” H (127 mm x 55 mm) In base with base adapter 6” Dia x 2-9/16” H (152 mm x 66 mm) Mounting Information
