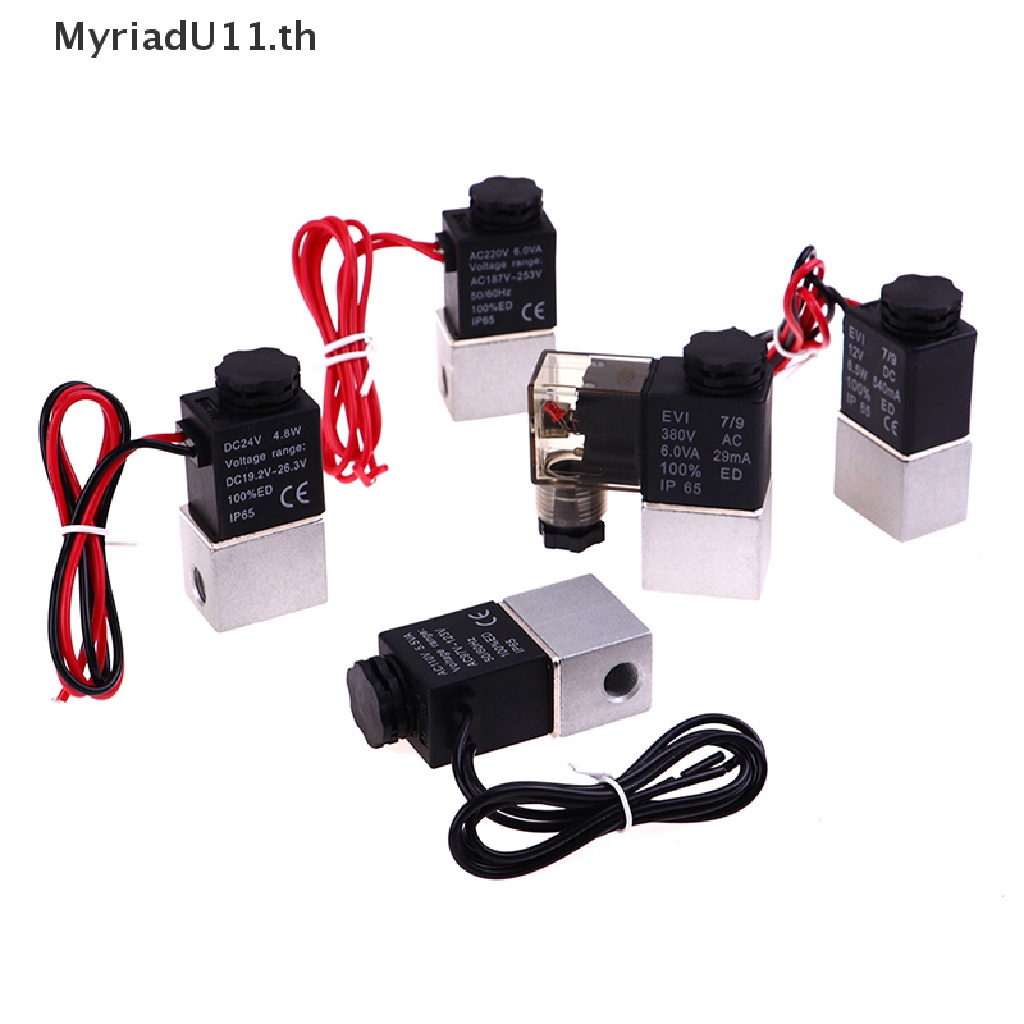

【MyriadU】วาล์วโซลินอยด์ 1/8 นิ้ว 2 ทาง 12V 24V 110V 220V 380V

Specifications Model Number: DC12V-1/8 Valve Type: 2 Way Normally Open Port Size: 1/8" NPT Female Port Coil Voltage: DC12V 24V 110V 220V Service Media: Air, Gas, Liquid, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.23Cv (Fluid Flow) Response Time: Less than 50 ms Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum)) Operating Temperature: -10 to 80 °C Coil Power: 6.5W Material: Body Material: Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Plunger & Spring Material: Stainless Steel Package included 1 x Solenoid Valve
