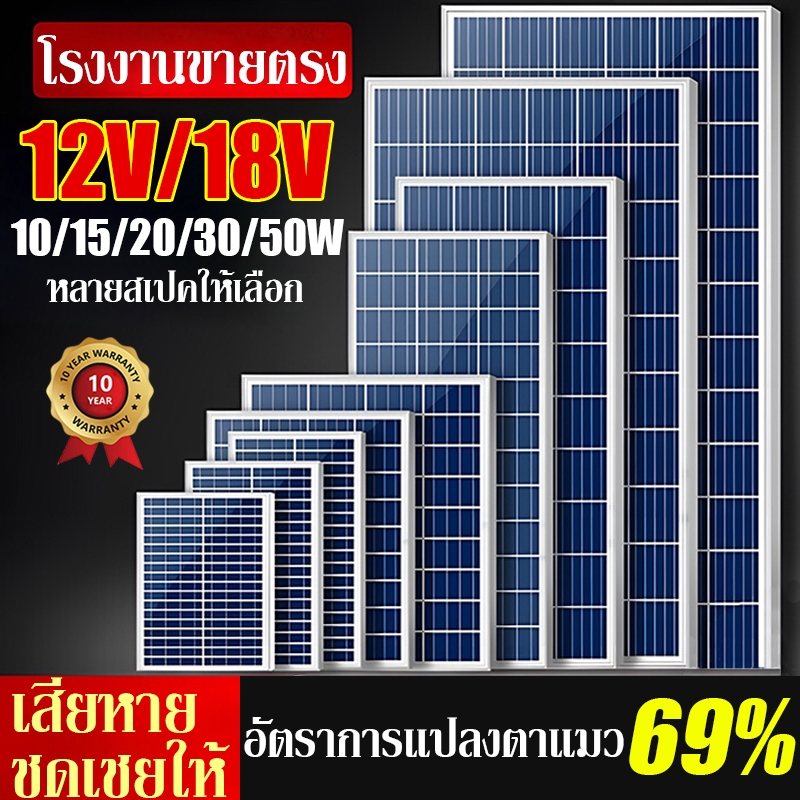

แผงโซล่าเซลล์ monocrystalline solar cell โมโน 12V/18V 10W/15W/20W/30W/50W กันน้ำ Polycrystalline

รายละเอียดสินค้าเฉพาะรุ่น 1.) Specification:￠12v10W -Model: SZ-Solar module-12v-10W -Type: single crystal -Maximum power output (Pm): 10w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 0.83A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 0.91A -Maximum system voltage: 1000V -Size: 235 mm x 350 mm 2.) Specification:￠12v15W -Model: SZ-Solar module-12v-15W -Type: single crystal -Maximum power output (Pm): 15w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 1.25A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 1.37A -Maximum system voltage: 1000V -Size: 290 mm x 350 mm 3.) Specification:￠12v20W -Model: SZ-Solar module-12v-20W -Type: single crystal -Maximum power output (Pm): 20w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 1.66A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 1.83A -Maximum system voltage: 1000V -Size: 400 mm x 350 mm 4.) Specification:￠12v30W -Model: SZ-Solar module-12v-30W -Type: single crystal -Maximum power output (Pm): 30w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 2.5A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 2.75A -Maximum system voltage: 1000V -Size: 530 mm x 350 mm 5.) Specification:￠12V50W -Model: SZ-Solar module-12V-50W -Type: single crystal -Maximum power output (Pm): 50w -Maximum operating voltage (Vmp): 12V -Maximum power current (Imp): 4.16A -Open circuit voltage (Voc): 15.6V -Short circuit current (Isc): 4.57A -Maximum system voltage: 1000V -Size: 670 mm x 700 mm 6.) Specification:￠18v10W -Model: SZ-Solar module-18V-10W -Type: single crystal -Maximum power output (Pm): 10w -Maximum operating voltage (Vmp): 18V -Maximum power current (Imp): 0.55A -Open circuit voltage (Voc): 23.4V -Short circuit current (Isc): 0.61A -Maximum system voltage: 1000V -Size: 235 mm x 350 mm 7.) Specification:￠18v15W -Model: SZ-Solar module-18V-15W -Type: single crystal -Maximum power output (Pm): 15w -Maximum operating voltage (Vmp): 18V -Maximum power current (Imp): 0.83A -Open circuit voltage (Voc): 23.4V -Short circuit current (Isc): 0.91A -Maximum system voltage: 1000V -Size: 290 mm x 350 mm 8.) Specification:￠18v20W -Model: SZ-Solar module-18V-20W -Type: single crystal -Maximum power output (Pm): 20w -Maximum operating voltage (Vmp): 18V -Maximum power current (Imp): 1.1A -Open circuit voltage (Voc): 23.4V -Short circuit current (Isc): 1.2A -Maximum system voltage: 1000V -Size: 400 mm x 350 mm 9.) Specification:￠18v30W ●Model: Sz-Solar-Module-18V-30W ●Type: single crystal ●Maximum power output (Pm): 30w ●Maximum working voltage (Vmp): 18v ●Maximum power current (Imp): 1.66A ●Open circuit voltage (Voc): 23.4V ●Short circuit current (Isc): 1.83A ●Maximum system voltage: 1000V ●Size: 530 mm x 350 mm 10.) Specification:￠18v50W ●Model: Sz-Solar-Module-18V-50W ●Type: single crystal ●Maximum power output (Pm): 50w ●Maximum working voltage (Vmp): 18v ●Maximum power current (Imp): 2.77A ●Open circuit voltage (Voc): 23.4V ●Short circuit current (Isc): 3A ●Maximum system voltage: 1000V ●Size: 500 mm x 580 mm
