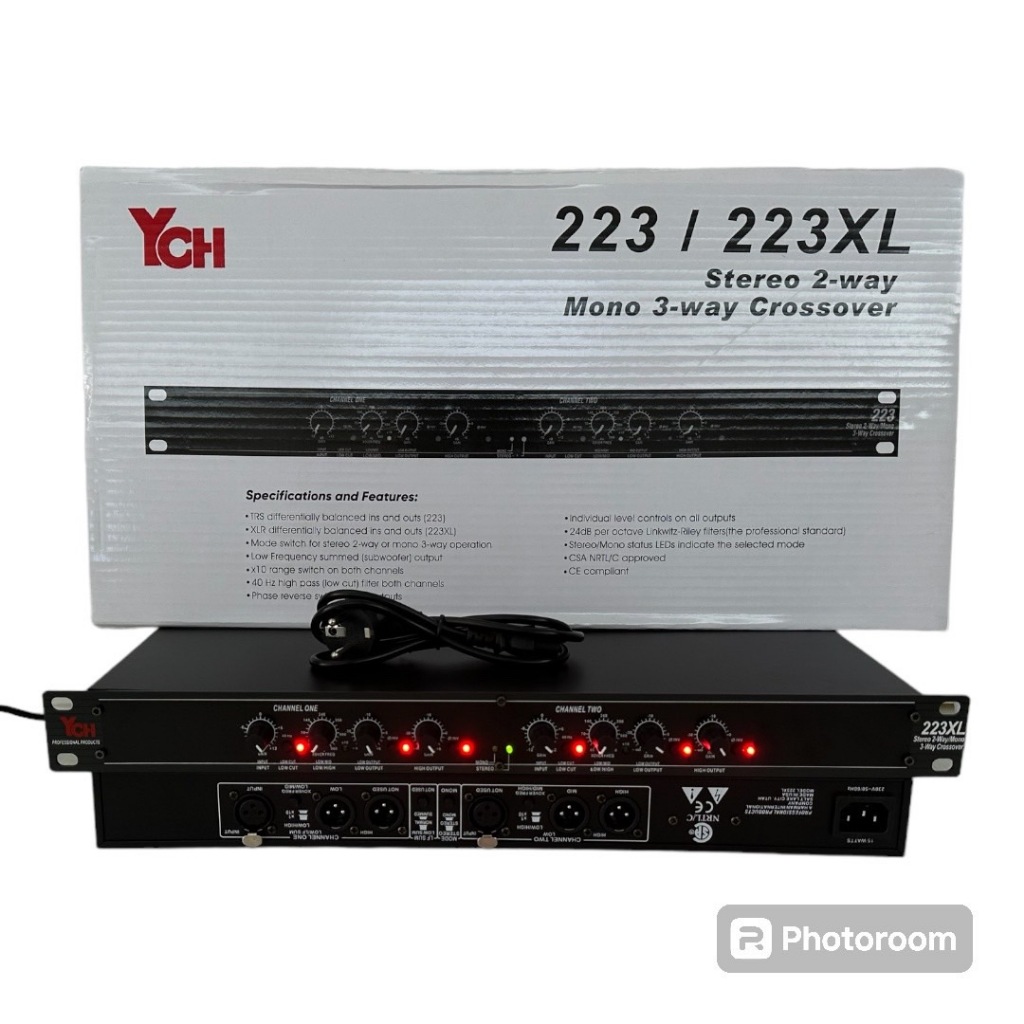

TH-888 YCH 223XLสเตอริโอ 2 ช่อง ครอส2ทาง ครอส2ทาง

YCH 223XLสเตอริโอ 2 ช่อง ครอส2ทาง ครอส2ทาง\ CROSSOVER TADA SH 223XL STEREO 2-WAY/MONO 3-WAY CROSSOVER Specifications Crossover 223XL Inputs Connectors: 1/4" TRS or XLR Type: Electronically balanced/unbalanced, RF filterd Impedance: Balanced >50KQ, unbalanced >25K Max Input Level : +22dBu typical, balanced or unbalanced CMRR: >40dB, typically >55dB at 1kHz Outputs Connectors: 1/4" TRS Type: Impedance balanced/unbalanced, RF filterd Impedance: Balanced 2002, unbalanced 100 Max Input Level :>+21dBu balanced or unbalanced into 2k or greater Outputs Connectors: XLR Type: Electronically balanced/unbalanced, RF filterd Impedance: Balanced 602, unbalanced 300 Max Input Level :>+20dBu balanced or unbalanced into 600 or greater Performance Bandwidth: 20 Hz to 20kHz, +0/-0.5dB Frequency Response: 90kHz, +0/-3 dB Signal-to-Noise: Ref +4 dBu, 22kHz measurement bandwidth Stereo Mode Mono Mode > 94 dB > 94 dB Low-Mid Output: > 94 dB Mid Output: > 93 dB High-Mid Output: > 92 dB High Output: > 90 dB > 88 dB > 94 dB > 94 dB Mid Output: > 93 dB High Output: > 91 dB > 91 dB Dynamic Range: >106 dB unweighted, any output THD+Noise: <0.004% at+4 dBu, 1 kHz <0.04% at+20 dBu, 1 kHz Interchannel Crosstalk: <-80 dB, 20 Hz to 20 kHz Crossover Frequencies Stereo Mode: Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) Low/High: 450 Hz to 9.6 kHz Mono Mode: Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) Low-Mid/High-Mid: 450 Hz to 9.6 kHz High-Mid/High: 450 Hz to 9.6 kHz Filter Type: Linkwitz-Riley, 24 dB/octave, state-variable Function Switches Front Panel: Low Cut: Activates 40 Hz Butterworth, 12dB/octave high-pass filter, one switch per channel Phase Invert: inverts the phase at the output, one switch per output. Rear Panel: x10: Multiplies crossover frequency range by 10, one switch per channel. Mode: Selects stereo/mono and 2/3/4-way operation LF Sum: Selects normal (stereo) or mono-summed low frequency operation Power Supply Operating Voltage: 100 VAC 50/60 Hz, 120 VAC 60 Hz 230 VAC 50/60 Hz Power Consumption: 15 Watts Mains Connection: IEC 320 receptacie Indicators Stereo Operation : Green LED Mono Operation: Yellow LED Low Cut: Red LED per channel x10: Green LED per channel Phase invert: Red LED per output (3 per channel) Physical Dimensions: 1.75" H x 19" W x 6.9" D (4.4 cm x 48.3 cm x 17.5 cm) Weight: 234: 4.0 lbs. (1.8 kg) 223: 3.7 lbs. (1.7 kg) Shipping Weight: 234: 5.8 lbs. (2.6 kg) 223: 5.4 lbs. (2.5 kg)
