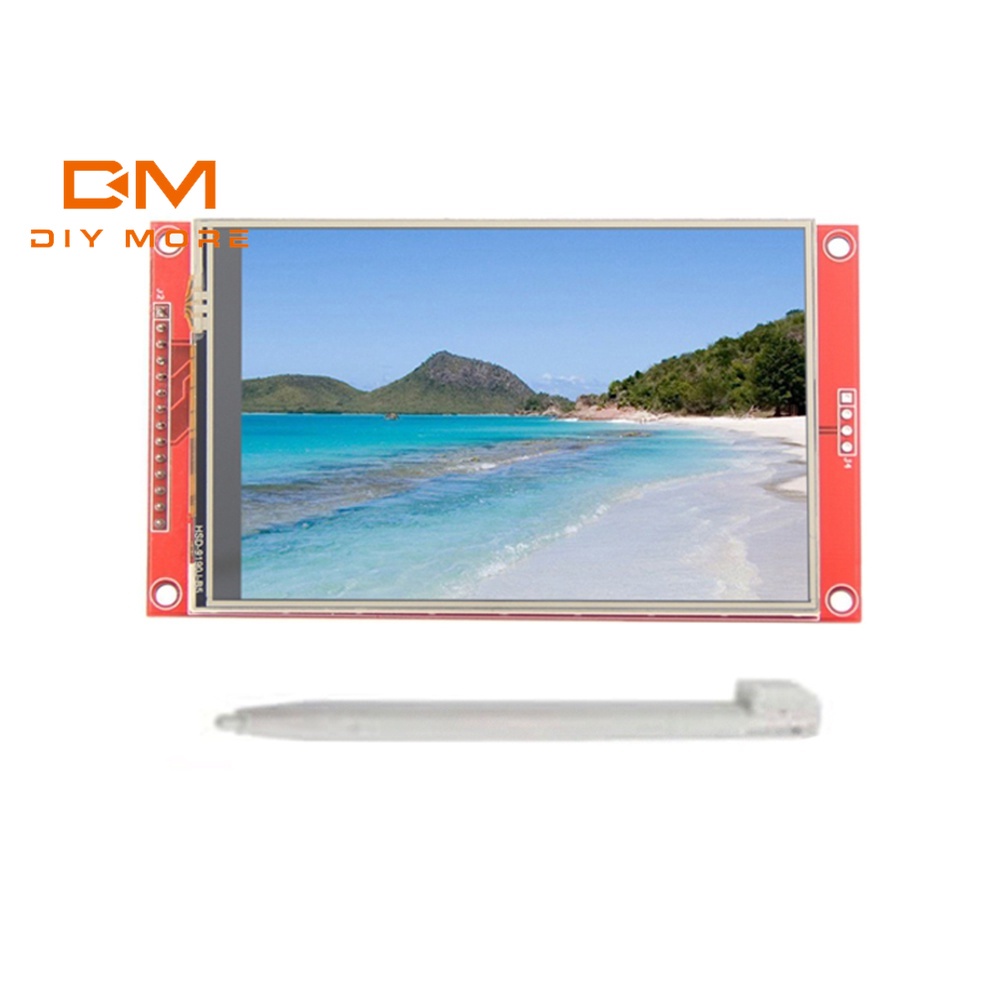

Diymore ใหม่ 3.5 นิ้ว 4.0 นิ้ว Tft หน้าจอ Lcd แสดงผลโมดูล Spi อินเตอร์เฟซ 480X320 Sd

3.5 inch Description: 1: Widely used 2: 3.5-inch color screen, display rich colors 3: With SD card slot to facilitate expansion experiments 4: Provide a wealth of sample programs 5: Simple to use 3.5-inch color screen, support 16BIT RGB 65K color display, display rich colors. 480×320 resolution, optional touch function ·Using SPI serial bus, only a few IOs can light up the display· With SD card slot for easy expansion of experiments ·Provide rich sample programs ·Military-level process standards, long-term stable work·Provide underlying drive technical support Product parameter Display color: RGB 65K color Size: 3.5(inch) Type: TFT Driver chip: ILI9488 Resolution: 480*320 (Pixel) Module interface: 4-wire SPI interface Effective display area (AA area): 48.96x73.44(mm) Module PCB backplane size: 56.34x98(mm) Working temperature: -20℃~60℃ Storage temperature: -30℃~70℃ VCC power supply voltage: 3.3V~5V Logic IO port voltage: 3.3V (TTL) Weight (including packaging) Without touch 45(g)/With touch 57(g) Package Contents 1* 3.5 inch SPI serial LCD screen module (without touch screen or without touch screen optional). 4.0 Inch Description 1: Widely used 2: 4.0-inch color screen, rich in display colors 3: Provide underlying drive technology support 4: With SD card slot to facilitate expansion experiments 5: Using SPI serial bus, only a few IOs can light up the display 4.0-inch color screen, support RGB 65K color display, display rich colors 480X320 resolution, optional touch function Using SPI serial bus, only a few IOs can light up the display With SD card slot for easy expansion of experiments Provide rich sample programs Military-grade process standards, long-term stable work Provide underlying drive technology support Product parameter Display color: RGB 65K color Size: 4.0(inch) Type: TFT Driver chip: ST7796S Resolution: 480*320(Pixel) Module interface: 4-wire SPI interface Effective display area (AA area): 55.68x83.52 (mm) Module PCB backplane size: 61.74x108.04(mm) Hornworm touch screen type: resistance touch melt touch screen Touch IC: XPT2046 VCC power supply voltage: 3.3V~5V Weight (including packaging): with touch: 71g without melt: 58g Package include: 1* 4.0 inch SPI serial LCD touch screen module (without touch and with touch optional)
