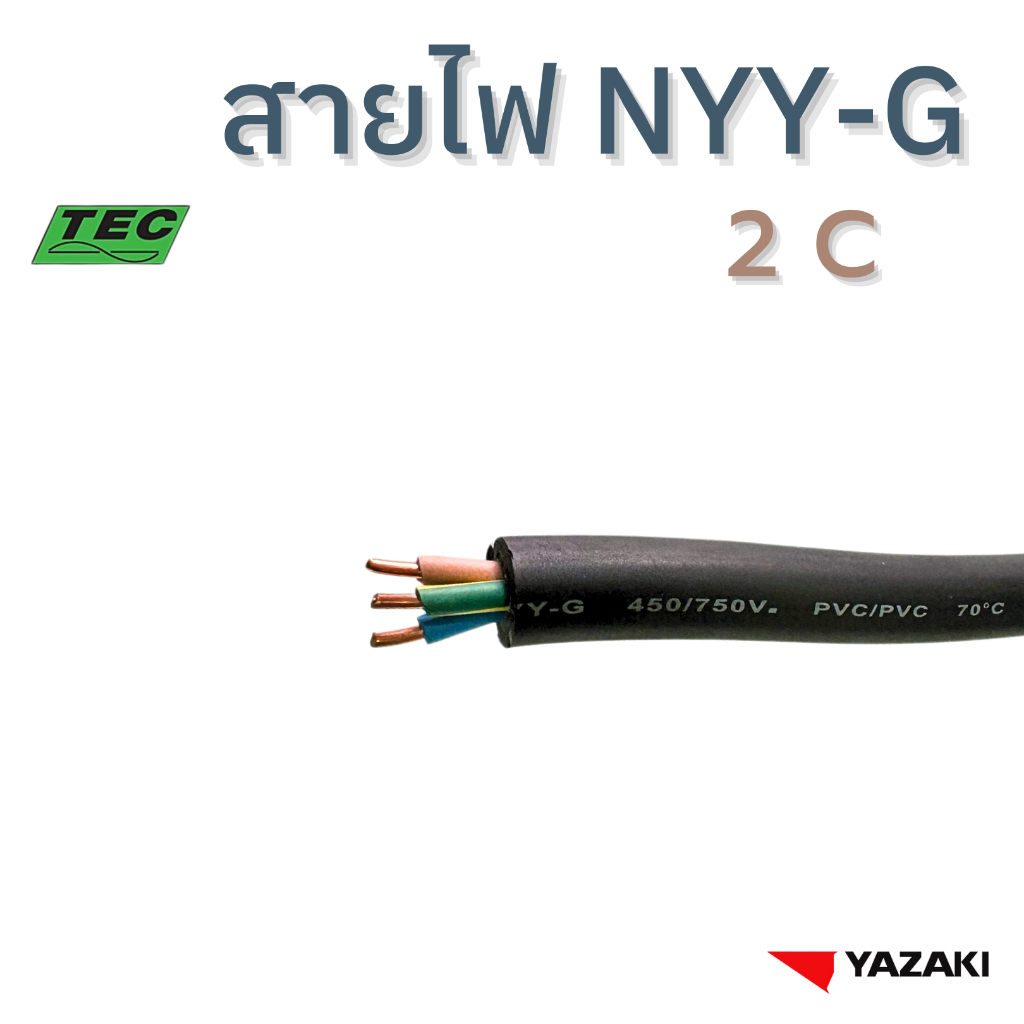

YAZAKI NYY/G 2Core 450/750V (แบ่งตัด10เมตร/ชิ้น)

CABLE STRUCTURE Conductor : Stranded annealed copper wires : Size 25 mm2 up to 300 mm2 for phase wires : Size 16 mm2 up to 150 mm2 for ground wires Insulation : Polyvinyl chloride (PVC/C) Core identification : 2-Cores+Ground : Blue, Brown +Green/Yellow Inner sheath : Black Polyvinyl chloride (PVC/C) Sheath : Black Polyvinyl chloride (PVC/ST4) TECHNICAL DATA Classification : Maximum conductor temperature 70c : Circuit voltage not exceeding 450/750 Volts Rated voltage : 450 Volts between Line to Earth : 750 Volts between Line to Line Testing voltage : 2,500 Volt Reference standard : TIS 11 Part 101-2553 Table 5 APPLICATION - ใช้งานทั่วไป - วางบนรางเคเบิล - ร้อยท่อฝังดินหรือฝังดินโดยตรง For installation exposed, or in raceway, wet or dry location, or direct burial in ground
