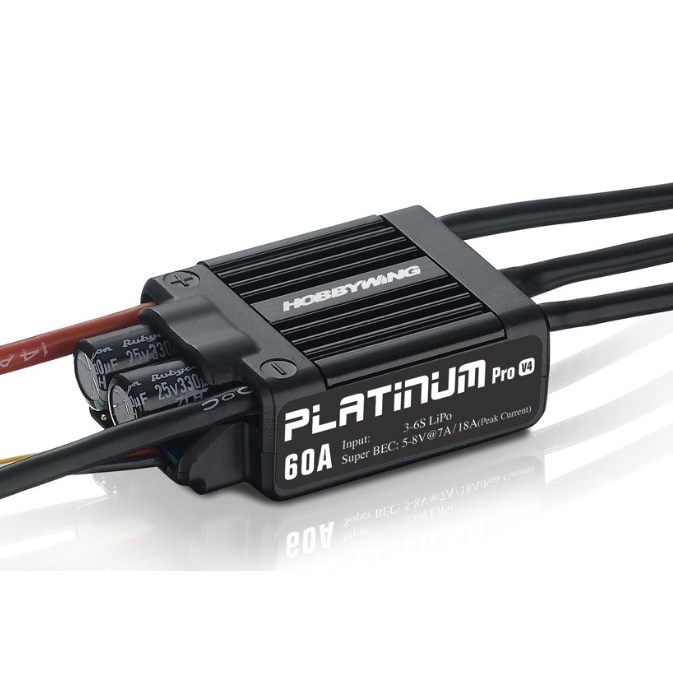

สปีดคอนโทรล BEC Hobbywing Platinum 60A V4 รองรับ 3~6S (สินค้าส่งจากกรุงเทพ)

Product Description Hobbywing platinum 60A Pro V4 brushless ESC is the newly released ESC for 450 to 480 class helicopters. It can support 3S to 6S battery. Specifications: Model: Hobbywing Platinum 60A V4 Application: 450-480 class helicopters (propeller:325-360mm) Input voltage: 3-6S LiPo Cont. Current: 60A Peck Current (10s): 80A (Switch-mode) BEC: 5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak Separate Programming Port: For connecting LCD Program Box/WIFI Express Throttle Signal/BEC Output/RPM Signal Transmission Wire(s): White Throttle Signal Wire/Red & Black BEC Output Wires/Yellow RPM Signal Transmission Wire Input/output Wires: 14AWG Input/output Wires Weight: 49g Dimension: 48x30x15.5mm Main Features: High performance microprocessor with a running frequency of up to 72MHz for excellent motor speed-governing and super soft start-up. Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control. DEO (Driving Efficiency Optimization) Technology adopted greatly improves throttle response & driving efficiency, reduces ESC temperature. New switch-mode BEC with adjustable output voltage ranges from 5V to 8V and continuous/peak current of 7A/18A. BEC is separated from other circuits of the ESC, it will keep its normal output when the MOSFET board of the ESC is burnt. Multiple flight modes: Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), Helicopter (Store Governor). New governor program with adjustable governor parameter P/I brings excellent speed-governing effect, guarantees the stability of the propeller’s revs when the load changes dramatically. Data logging records the standardized RPM, minimum voltage and maximum temperature of the flight. "Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations. Independent output port for RPM (that is: motor speed) signal. Separate programming port for ESC programming or parameter setting. WIFI module (sold separately) for programming the ESC wirelessly with your smart phone (ios or Android). Online data checking, ESC programming, firmware upgrade (Multifunction LCD program box or WIFI Express is needed) supported. Multiple protections like start-up protection, ESC thermal protection, capacitor thermal protection, overload protection, throttle signal loss protection, and etc
