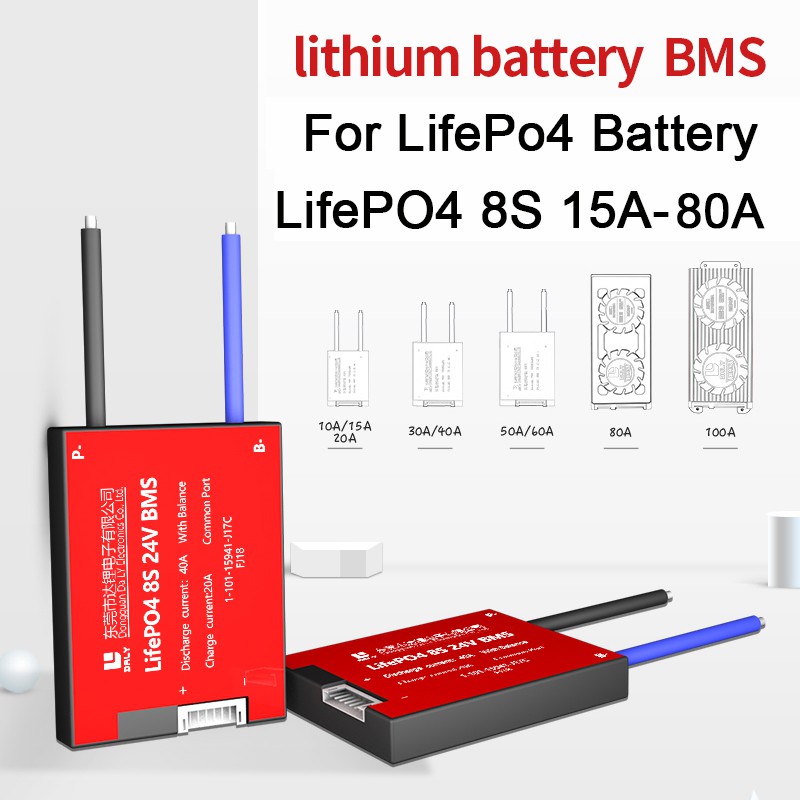

8S 24 V 15A 20A 30A 40A 50A 60A 80A Lifepo4 Bms แผ่นบอร์ดป้องกันแบตเตอรี่สําหรับสกูตเตอร์ไฟฟ้า

"Note:(3.2V Rated LiFePO4 not for 3.7V rated Li-ION Battery) Common Version : Common port for charge/discharge Used for 8 series 24V battery pack. The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan. IC itself has power balancing function. The circuit is simple and reliable. Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging. Extreme low power consumption. BMS manufactured by high quality Mos and IC imported. Keep your battery long cycle serivce life time. PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating. Discharge current: 15A/20A/30A/40A/50A/60A/80A Charging current: 8A/10A/15A/20A/25A/30A/40A Charging voltage: 29.2V Other details can feel free to contact us or see details in pictures, Thanks"
