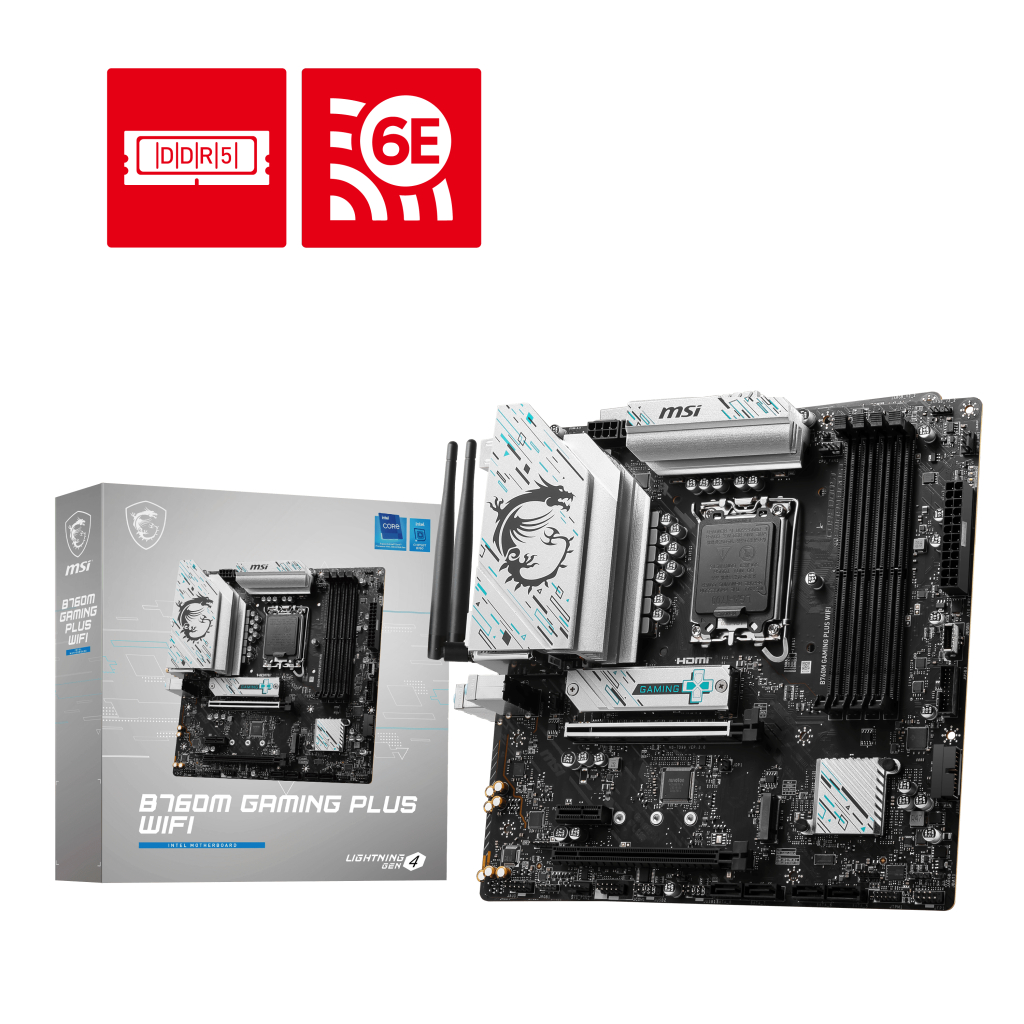

MAINBOARD (เมนบอร์ด) MSI B760M GAMING PLUS WIFI DDR5 (SOCKET LGA 1700) MICRO-ATX

Model BrandMSI ModelB760M GAMING PLUS WIFI CPU Socket1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh) Wattage150W ChipsetIntel B760 SeriesCeleron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium Memory Slot4 Memory TypeDDR5 Max. Capacity192 GB Speed4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) Graphic & Audio GraphicRequires a CPU with Integrated Graphics. — • 2 x HDMI 2.1 ports with HDR, supports a maximum resolution of 4K 60 Hz*/ ** • 2 x DisplayPort 1.4 ports with HBR2, supports a maximum resolution of 4K 60Hz * / ** — * Available only on processors featuring integrated graphics. ** Graphics specifications may vary depending on the CPU installed. AudioRealtek ALC897 7.1-Channel High Definition Audio Storage SATA 2- Port SATA 34 Port RAIDRAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices M.22 x M.2 slots (Key M) — • M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280 storage devices — • M2_2 slot (From B760 chipset) - Supports up to PCIe 4.0 x4 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices Port Expansion Slots Details• 2 x PCIe x16 slots - PCI_E1 slot (From CPU) Supports up to PCIe 4.0 x16 - PCI_E3 slot (From B760 chipset) Supports up to PCIe 4.0 x4 — • 1 x PCIe x1 slot (From B760 chipset) - PCI_E2 supports up to PCIe 3.0 x1 Slot1 x PCIe 3.0 x1 Slot , 2 x PCIe 4.0 x16 Slot Network LANRealtek 8125BG 2.5Gbps LAN LAN Speed100/1000/2500 Mbps Wireless• Intel Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax - Supports Bluetooth 5.3**, FIPS, FISMA — * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Back Panel I/O Ports USB 2.02 Port USB 3.0- Port USB 3.1- Port Serial- Port USB 3.22 x USB 3.2 Gen 1 5Gbps Type-A 2 x USB 3.2 Gen 2 10Gbps Type-A Port D-Sub (VGA)- Port DVI- Port HDMI2 Port DisplayPort2 Port Audio3 Port PS/21 (Keyboard/Mouse combo) Port Additional2 x Wi-Fi Antenna connectors LAN1 Port Form Factor Form FactorMicro-ATX Power Connector24 + 4 + 8 Pin Dimension24.3 x 24.3 cm Warranty การรับประกัน3 Years
