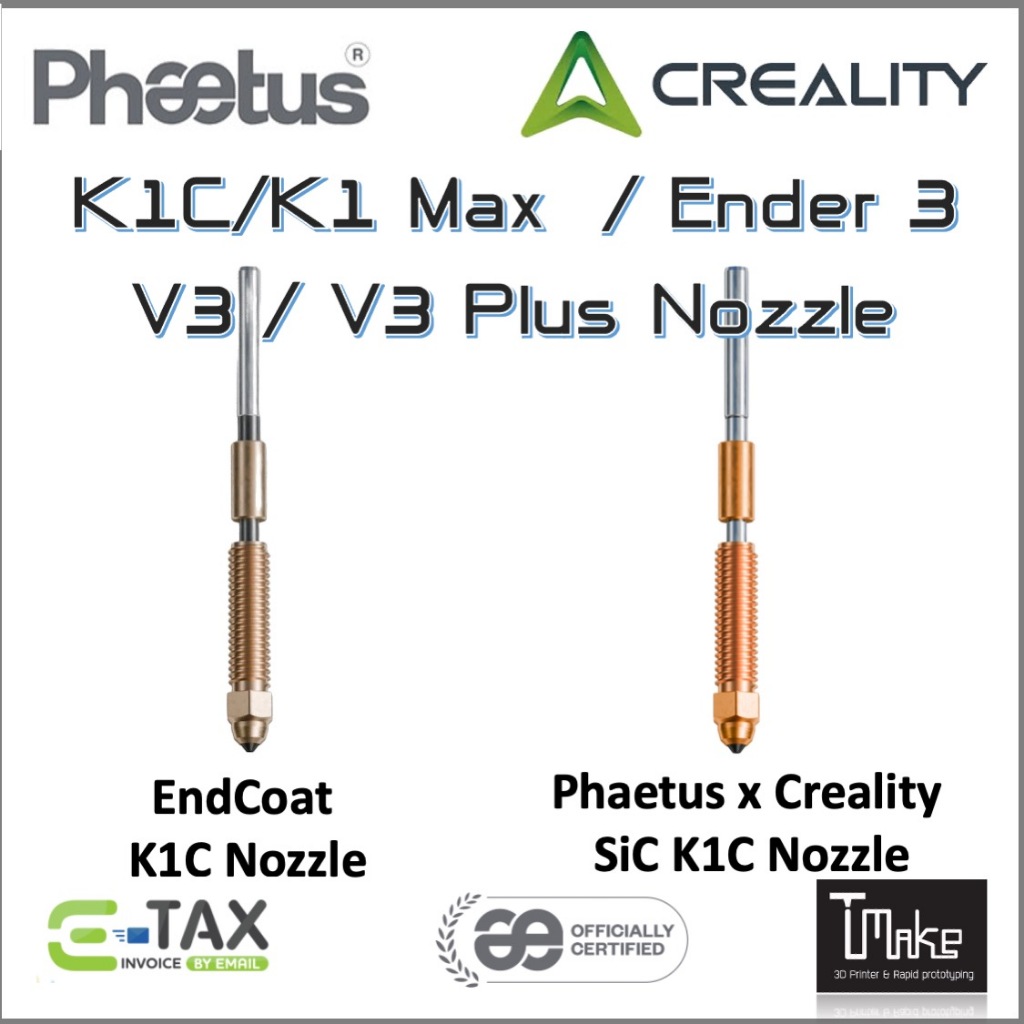

Phaetus Endcoat K1C Waer Resistance / SiC K1C High Temp Wear Resistance Nozzle support K1C/Max / Ender 3 V3 / V3 Plus

When comparing the Phaetus EndCoat™ K1C Integrated Nozzle and the Phaetus SiC (Silicon Carbide) K1C Integrated Nozzle, several key differences and similarities emerge: Material Composition: •EndCoat™ K1C Nozzle: Features a hardened steel nozzle tip with an EndCoat™ coating, enhancing wear resistance. •SiC K1C Nozzle: Constructed with a 99.9% high-purity silicon carbide nozzle tip, also treated with EndCoat™ coating, offering superior hardness and durability. Hardness and Durability: •EndCoat™ K1C Nozzle: The EndCoat™ coating provides a hardness of HV3300, significantly extending the nozzle's service life compared to standard hardened steel nozzles. •SiC K1C Nozzle: With a Mohs hardness of 9.8, the silicon carbide nozzle offers a service life up to seven times longer than ordinary hardened steel nozzles, making it exceptionally wear-resistant. Temperature Resistance: •EndCoat™ K1C Nozzle: Suitable for printing at temperatures up to 300°C (572°F), accommodating a wide range of standard filaments. •SiC K1C Nozzle: Capable of withstanding temperatures up to 550°C, making it suitable for high-temperature materials like PEEK and carbon fiber composites. Flow Rate and Printing Speed: Both nozzles are designed to support high flow rates of up to 30 mm³/s and printing speeds up to 600 mm/s, facilitating efficient high-speed printing. Filament Compatibility: Both nozzles are compatible with standard filaments such as PLA, ABS, PETG, and TPU, as well as abrasive composite materials containing carbon fiber, glass fiber, steel, wood, and other industrial-grade additives. Installation: Both nozzles feature an integrated design, ensuring easy installation as direct replacements for stock nozzles on compatible Creality 3D printers, including the K1C, K1 Max, Ender-3 V3, and Ender-3 V3 Plus. Summary: •EndCoat™ K1C Nozzle: Offers enhanced wear resistance suitable for a broad range of standard and abrasive filaments, with a maximum operating temperature of 300°C. •SiC K1C Nozzle: Provides superior hardness and durability, withstanding higher temperatures up to 550°C, making it ideal for high-temperature and highly abrasive materials. The choice between the two depends on your specific printing requirements, particularly concerning material abrasiveness and printing temperature needs.
