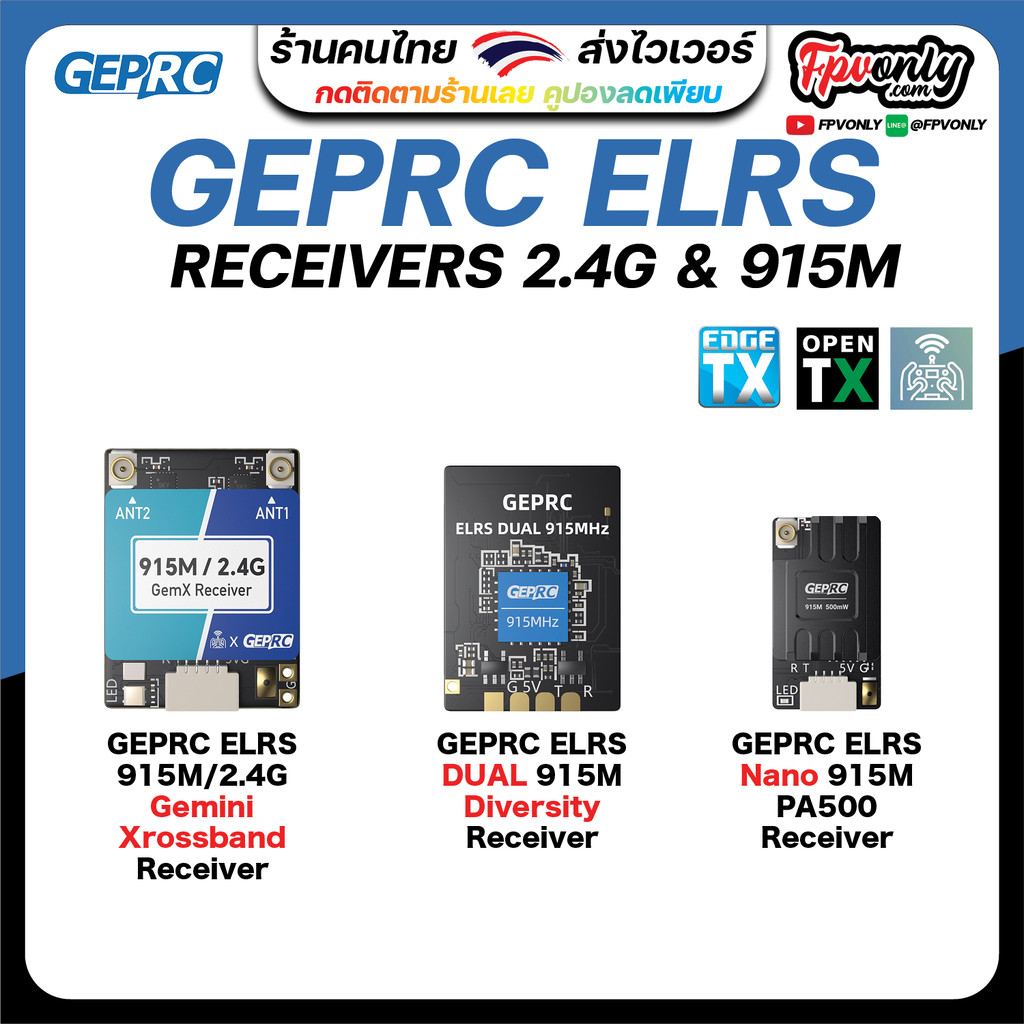

GEPRC ELRS 2.4G 915M Gemini Xrossband Nano DUAL 915M Diversity Receiver T Antenna อุปกรณ์โดรน Drone Radio

GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver Feature - Advanced ExpressLRS 915M/2.4G dual-frequency system - Based on Semtechs third-generation LR1121 RF chip - Compact at 1823.65.7mm and weighing just 1.7g - Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF - Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures - Telemetry power up to 100mW - Refresh rate up to 1000Hz - Supports WiFi firmware updates - Includes an SH1.0 connector for easy installation Specifications - Model: GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver - Dimension: 1823.65.7mm - Weight: 1.7g (only receiver) - Chips: ESP32-PICO-D4, LR1121x2 - Crystal Oscillator: TCXO - Frequency Bands: 915MHz Gemini,2.4GHz Gemini,915M+2.4G Dual-Band - Refresh Rate: 25Hz-1000Hz - Operating Voltage: 5V - Antenna Connector: ipex1 - TLM Power: 100mW - Firmware: GEPRC 900/2400 Gemini Xrossband RX Includes 1 x ELRS 915M/2.4G Gemini Xrossband Receiver 2 x 915M/2.4G Dual-band T-Antennas 1 x Heat shrink tube 1 x 4-pin silicone connect cable 1 x User manual GEPRC ELRS DUAL 915M Diversity Receiver Features - Compact size of 18x25x5.5mm - Weighing only 1.7g - WIFI firmware upgrade - ELRS open-source project, long-range remote control - Maximum refresh rate of 200Hz - Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations - Equipped with an sh1.0 connector for easy installation - Two independent RF receiving links, true diversity receiver Specifications - Model: GEPRC ELRS DUAL 915M Diversity Receiver - Dimension: 18x25x5.5mm - Weight: 1.7g (RX only) - Chips: ESP32-PICO-D4, SX1276 - Crystal Oscillator: TCXO - Frequency Band: 915MHz FCC/868MHz EU - Refresh Rate: 25Hz-200Hz - Operating Voltage: 5V - Antenna Connector: ipex1 - TLM Power: 50mW - Firmware: GEPRC True Diversity 900MHz RX Includes 1 x ELRS Receiver 2 x Antenna 1 x Heat shrink tube 1 x 4pin silicone cable 1 x User manual GEPRC ELRS Nano 915M PA500 Receiver Feature - Compact size of 13x23x5.5mm - Weighing only 1.9g - WIFI firmware upgrade - ELRS open-source project, long-range remote control - Maximum refresh rate of 200Hz - Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations - Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW - Equipped with an sh1.0 connector for easy installation - Adopts an aluminum alloy CNC shell to optimize heat dissipation Specifications - Model: GEPRC ELRS Nano 915M PA500 receiver - Dimension: 13x23x5.5mm - Weight: 1.9g (RX only) - Chips: ESP8285, SX1276 - Crystal Oscillator: TCXO - Frequency Band: 915MHz FCC /868MHz EU - Refresh Rate: 25Hz-200Hz - Operating Voltage: 5V - Antenna Connector: ipex1 - Telemetry Power: 500mW - Firmware: GEPRC Nano 915M PA500 RX Includes 1 x ELRS Nano 915M PA500 receiver 1 x Antenna 1 x Heat shrink tube 1 x 4pin silicone cable 1 x User manual
