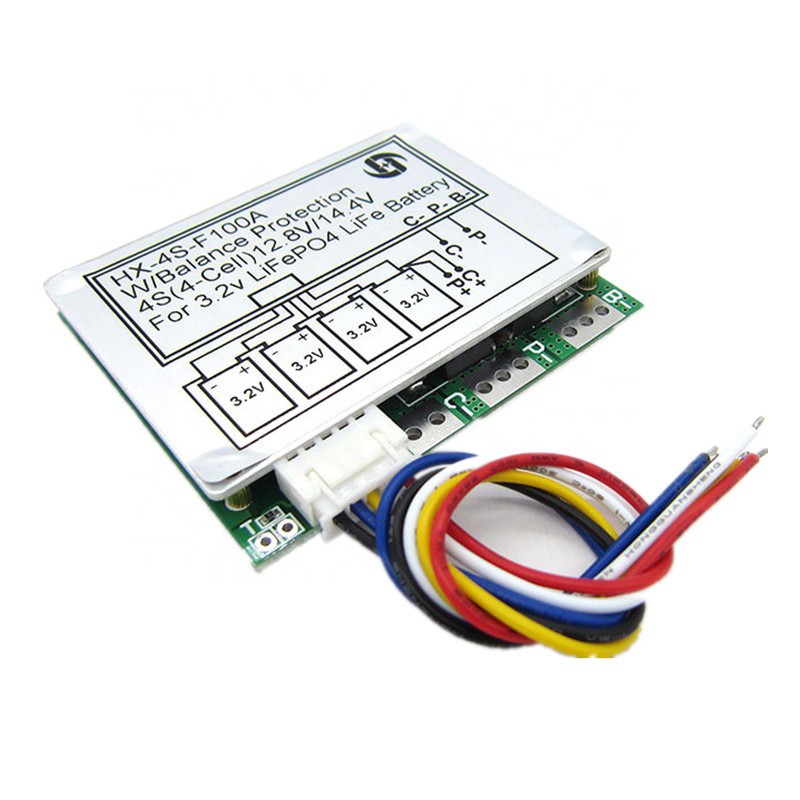

บอร์ดป้องกันแบตเตอรี่ Protection Board Bms+Balance LifePo4 4S 12.8V 100A HX-4S-F100A

บอร์ดป้องกันแบตเตอรี่ Protection Board Bms+Balance LifePo4 4S 12.8V 100A HX-4S-F100A Specifications: Discharge: Continuous Discharging Current: 100A Instantaneous Discharge Current: 120A Charge: Charging Voltage: 14.8V (Switching power 15-16V) Charging Current: 10A (MAX) Overcharge Protect: Over-charge Detect: 3.75±0.05V Protect Delay: 1300MS Over-charge Release: 3.60±0.05V Balance: Detect Voltage: 3.60±0.05V Release Voltage: 3.59±0.05V Balance Current: 65mA Over-discharge Protect: Over-discharge Detect: 2.1±0.08V Over-discharge Detect delay: 145S Release Voltage: 2.3±0.1V Over-current Protect: Detect Voltage: 200mV Detect Delay: 20mS Current Detect: 120±10A Release Condition: Cut Load Short-circuit Protect: Protect Condition: Cut Load (Not short connect) Detect Delay: 300uS Release Condition: Cut Load Inner Resistance: ≤20mΩ Self-Consumption: Working Current: ≤30uA Sleep Current (when Over-discharge): ≤20uA Working Temperature Range: -30+80℃ PCB Board Size: 7x6cm/2.76x2.36"
