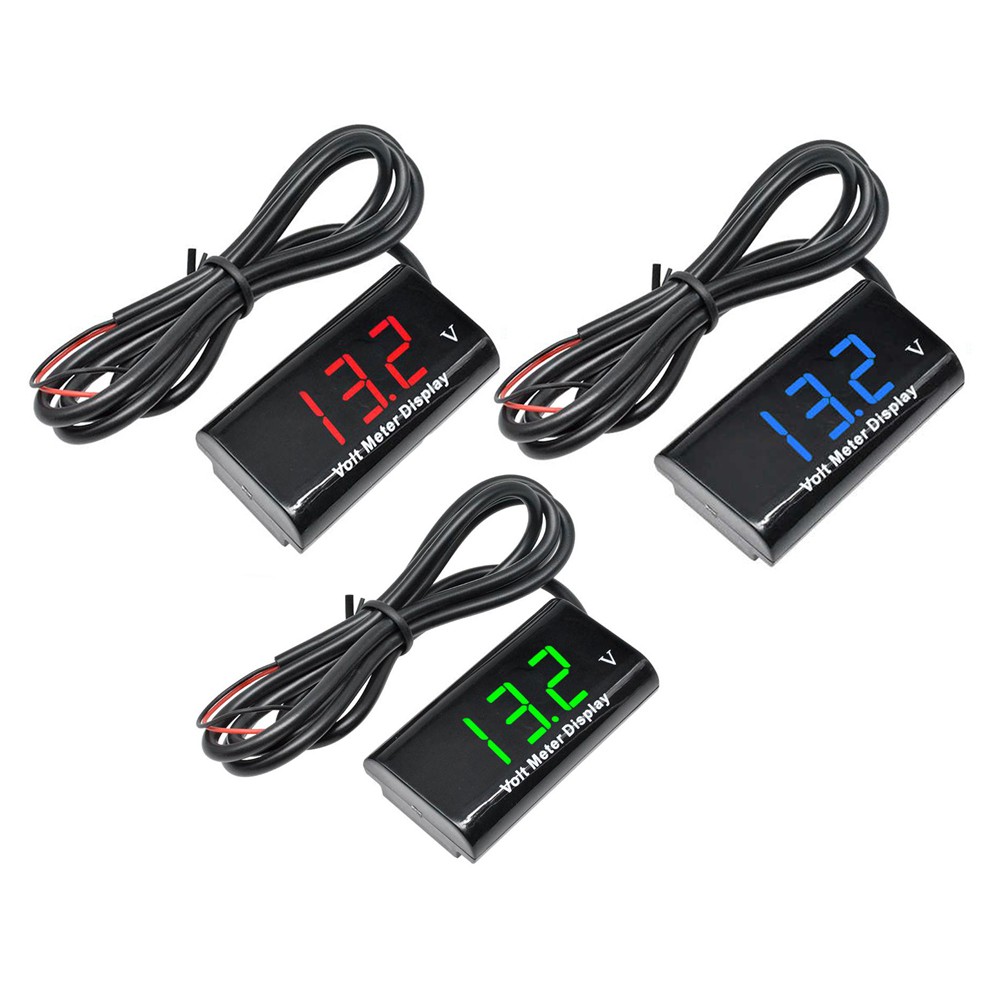

IPX6 โวลท์มิเตอร์ (กันน้ำ) รถมอเตอร์ไซด์ Digital Voltmeter DC 3-18V LED Display Waterproof Meter Motercycle

IPX6 โวลท์มิเตอร์ (กันน้ำ) Digital Voltmeter DC 3-18V LED Display Waterproof Meter Motercycle :: Specification :: Product size: 56mm*31mm*13.5mm Measurement accuracy:±1V Voltage range :3-18V Line length : ~ 90-100cm Power supply mode :DC DC two lines Display mode Three :0.56" LED digital tube Color : RED or GREEN Waterproof rating :IPX6 Shell material :ABS :: Feature :: 1. This voltmeter adopts a fully enclosed shell design, soaked in water for a short period of time and can work normally without damage. 2. The voltmeter is small in size and is displayed by three 0.56-inch LED digital tubes. 3. Two-wire system wiring, simple wiring; direct measurement, no external auxiliary power supply. 4. This voltmeter can be used to detect battery voltage in motorcycles, automobiles, etc., and to grasp the battery status in time. :: NOTE :: 1. The power supply voltage used in this voltmeter should not be higher than 12V. Please pay enough attention to the table to avoid residual damage to the voltmeter due to motor spark, power supply ripple or other excessive abrupt voltage. 2. Since this voltmeter uses LED display, it requires a certain working current, so it cannot be used for high internal resistance voltage measurement, such as weak signal voltage and button battery. 3. Pay attention to the wiring method, the red line is positive, the black line is negative, and it cannot be reversed.
