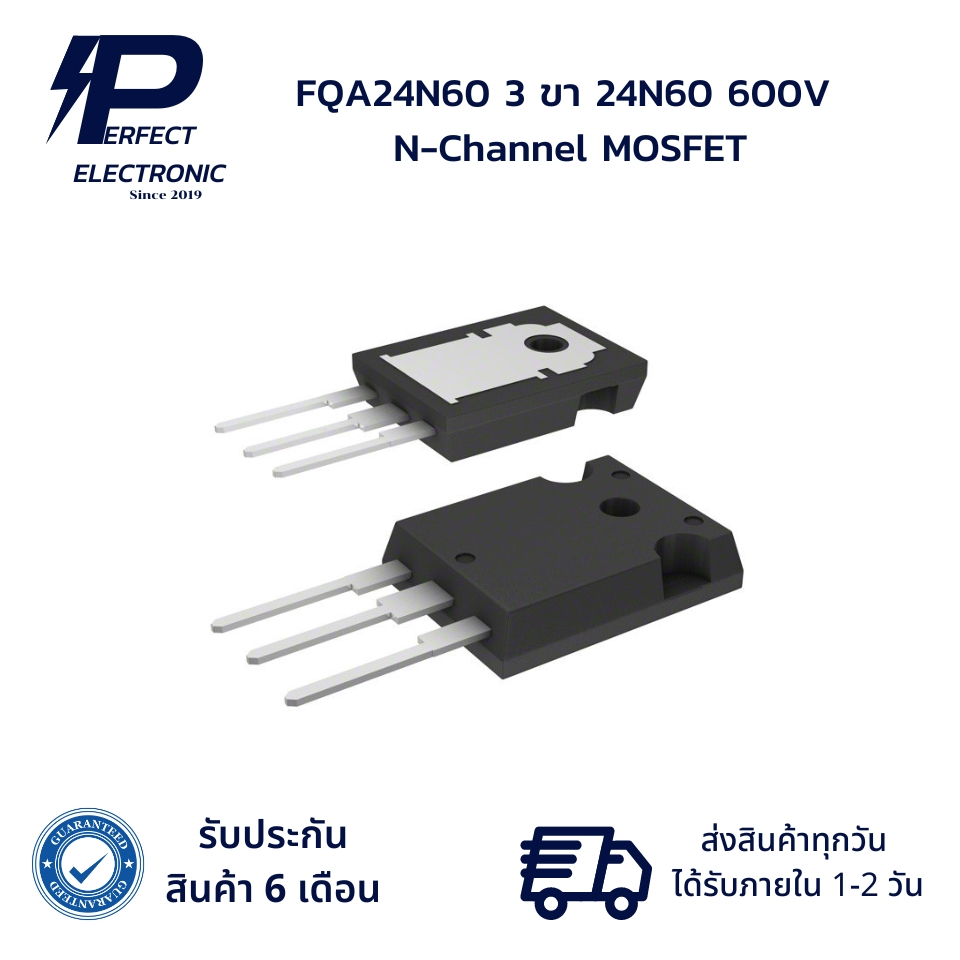

FQA24N60 3 ขา 24N60 600V N-Channel MOSFET (รับประกันสินค้า 1 เดือน) มีสินค้าพร้อมส่งในไทย

FQA24N60 3ขา 24N60 600V N-Channel MOSFET These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply. Features • 23.5A, 600V, RDS(on) = 0.24 Ω @ VGS = 10 V • Low gate charge ( typical 110 nC) • Low Crss ( typical 56 pF) • Fast switching • 100% avalanche tested • Improved dv/dt capability
