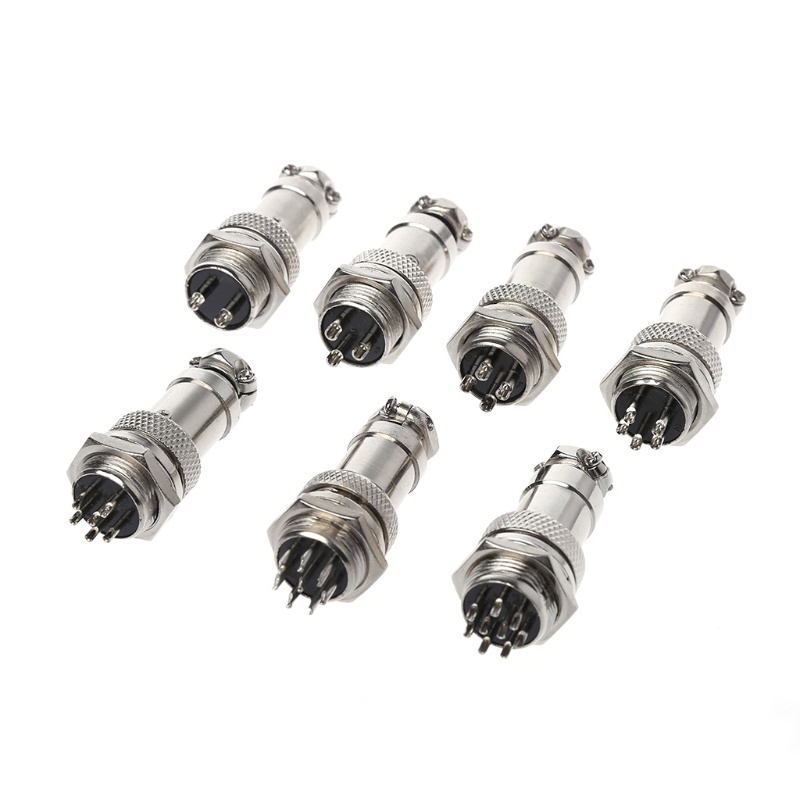

Pcf* อุปกรณ์ปลั๊กแผงโลหะเชื่อมต่อ Male & Female 16มม. 2/3/4/5/6/8/9 Pin Gx16

#Aviation #Plug #Male #& #Female #Wire #Panel #Metal #Connector #16mm #2/3/4/5/6/8/9 #Pin #GX16 Aviation Plug Male & Female Wire Panel Metal Connector 16mm 2/3/4/5/6/8/9 Pin GX16 Features: Straight and unshielded type, P series circular connector Used widely in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems, audio/video, test and measurement, communications, etc. Specifications: Model: GX 16 Material: Zinc alloy+Bakelite Pin quantity: 2 Pin/3 Pin/4 Pin/5 Pin/6 Pin/8 Pin/9 Pin Plug diameter: 16 mm Max voltage: 400V Max current: 5A Withstand voltage: 1200V AC Insulator resistance: >500M Ohm Contact resistance: <10m Ohm Male Connector Length: 21mm/0.83" Female Connector Length: 36mm/1.42" Quantity: 1 Set/2 Pcs Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package Contents: 1 Pc x Male Connector 1 Pc x Female Connector
