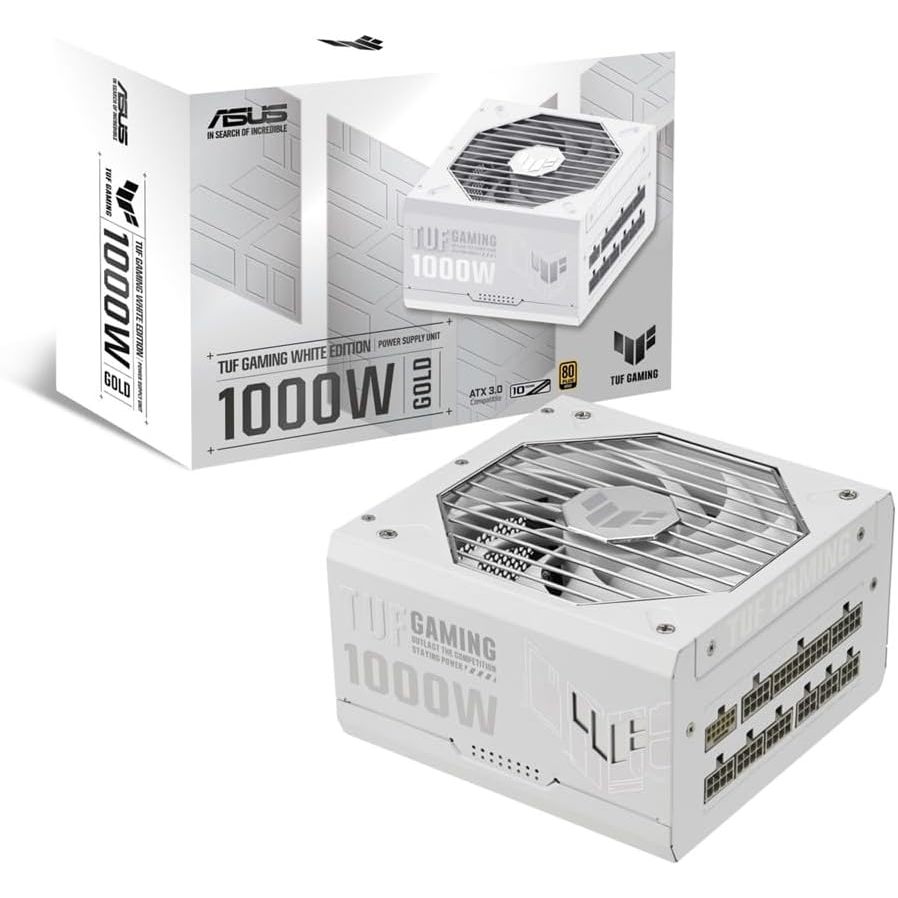

POWER SUPPLY (อุปกรณ์จ่ายไฟ) ASUS TUF GAMING 1000W WHITE (สีขาว) 1000W 80 PLUS GOLD (TUF-GAMING-1000G-WHITE)

SPECIFICATION Model TUF-GAMING-1000G-WHITE Intel Form Factor ATX12V PFC Type Active PFC ATX Standard ATX 3.0 Dimensions 150 x 150 x 86 mm Efficiency 80Plus Gold MTBF >120,000 hrs @ 40°C Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage .+3.3V +5V +12V -12V +5Vsb Maximum Load 25A25A83.3A 0.8A 3A Combined Load 130W 130W 850W 9.6W 15W Total Output 1000W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 Weight 2.48kg (single PSU)
